近红外 SC（超连续谱）光源

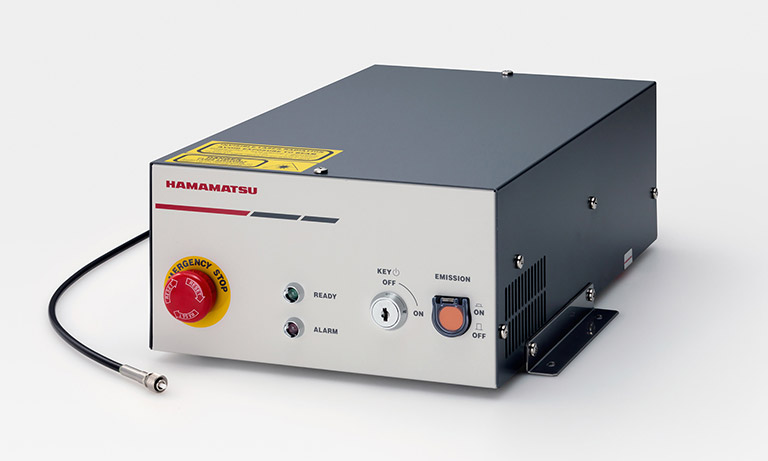

滨松的近红外 SC 光源是一种紧凑型广谱激光器光源，具有高相干性和高辉度等激光特性。
它使用的广谱激光是通过超短脉冲激光器的非线性光学现象产生的。
特点
1) 高稳定性：0.1%（典型值）
2) 高辉度：20,000 倍（与卤素灯相比）
3) 广谱：1300 nm 至 2000 nm
用途
1) OCT（光学相干断层扫描）
2) FT-NIR（傅里叶变换近红外光谱分析）
3) 气体测量
4) 半导体晶圆检查
5) 近红外分光光度测定
特性

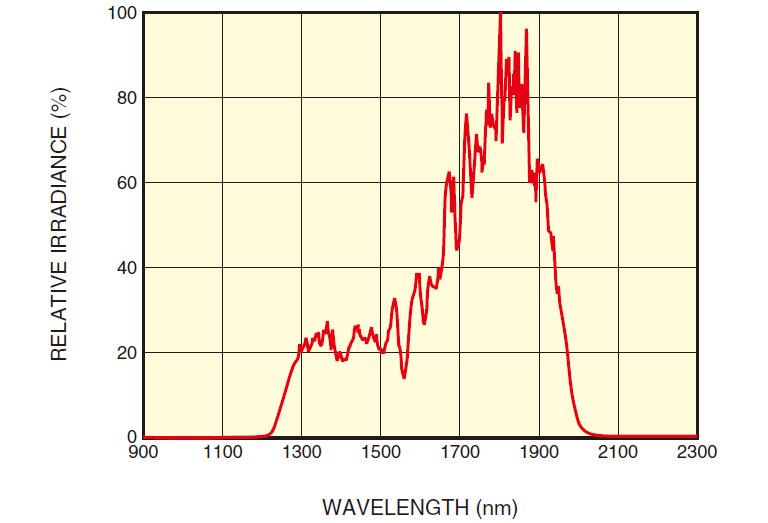

光谱分布（典型值）
输出稳定性（1500 nm 处）

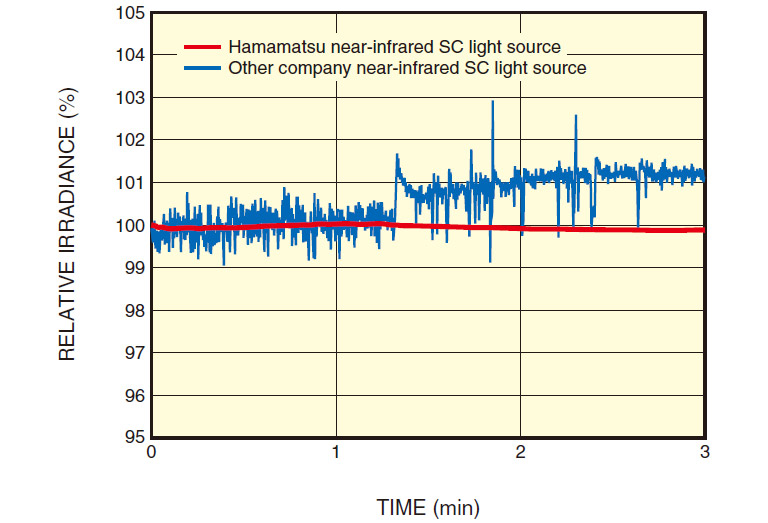

输出稳定性比较
稳定性：低于 ±0.1%
曝光时间：5 ms
稳定性：±2.0%
曝光时间：5 ms

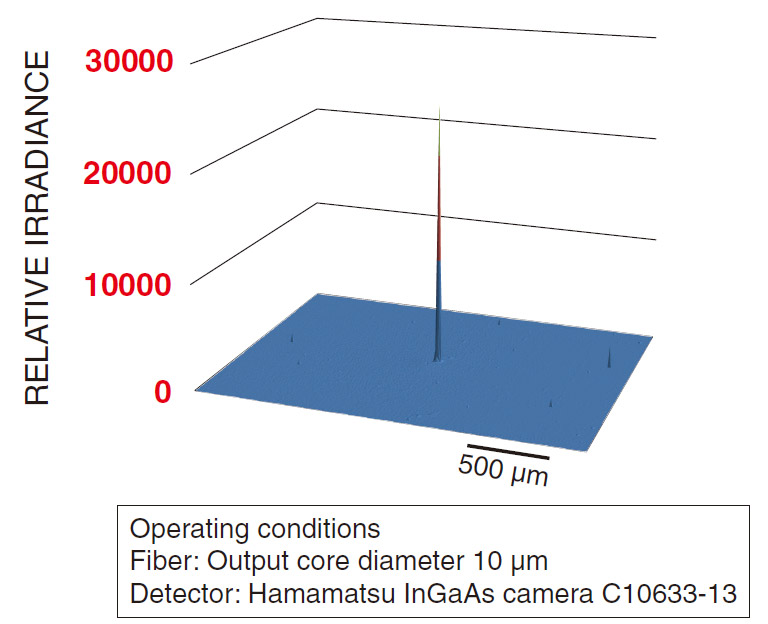

辉度特性
滨松近红外 SC 光源

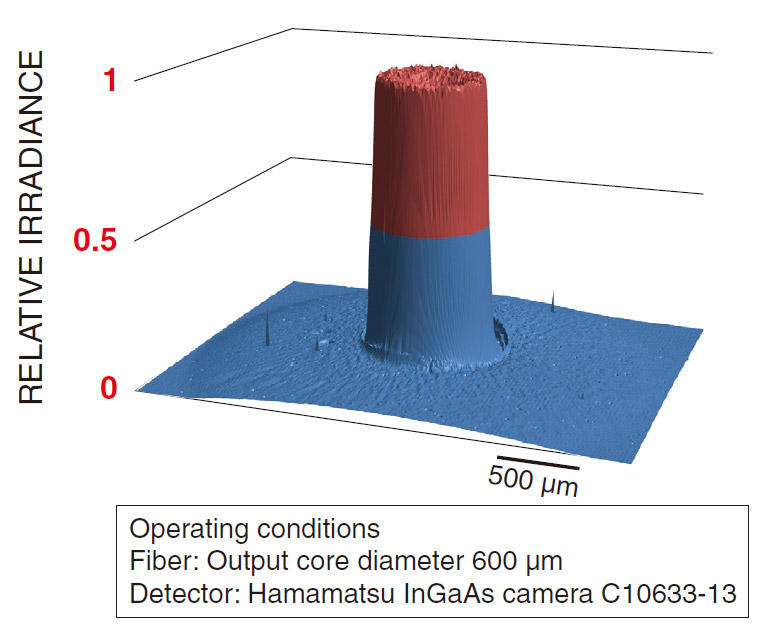

卤素灯 (7 W)
详细参数
| 参数 | 说明/值 | 单位 |
|---|---|---|
| 激光器类型 | SC（超连续谱） | — |
| 光束模式 | 单模式 | — |
| 极化 | 线性 | — |
| 振荡模式 | 脉冲操作 | — |
| 重复频率 | 50 | MHz |
| 光谱分布 | 1300 至 2000 | nm |
| 输出功率 | 50 | mW |
| 输出稳定性（典型值） | ±0.1 | % |
| 输出芯径 | 10 | μm |
| 输入电压（交流） | 100 V 至 240 V，单相 50 Hz / 60 Hz | — |
| 功耗（最大值） | 80 | VA |
