提供世界级紫外灵敏度和抗紫外线性能
结合了 TDI-CCD 和 CMOS 读出电路的新型图像传感器

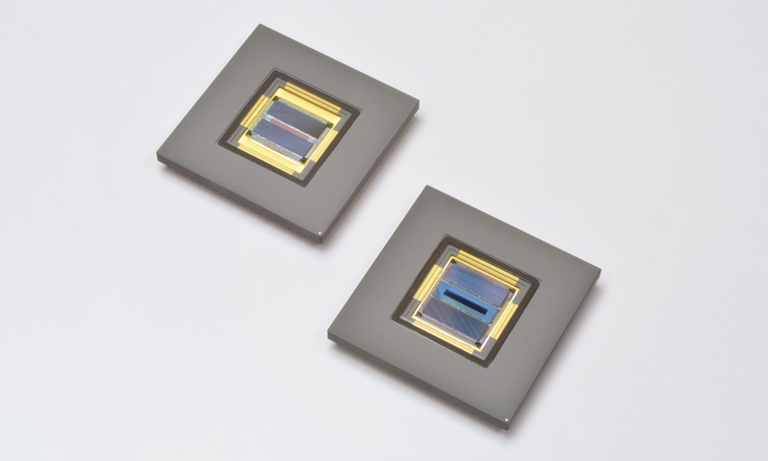

TDI-CCD 图像传感器 S14810/S14813
滨松开发了一种图像传感器，结合了 TDI-CCD 的优势，即使在高速成像期间也能确保图像的足够辉度，同时具有 CMOS 读出电路的优点，可实现高速行速率和数字输出。
虽然传统的 TDI-CCD 图像传感器能够实现高灵敏度、高速成像，但是鉴于它们使用模拟输出，客户有必要添加信号处理电路。我们新开发的 S14810 和 S14813 使用 CMOS 读出电路用于数字输出，简化了外部电路设计，使产品更易于使用。
我们还提供定制设计，例如增加 TDI-CCD 像素数量，或增加列并行读出的列数，以提高行速率。
S14810/S14813 规格

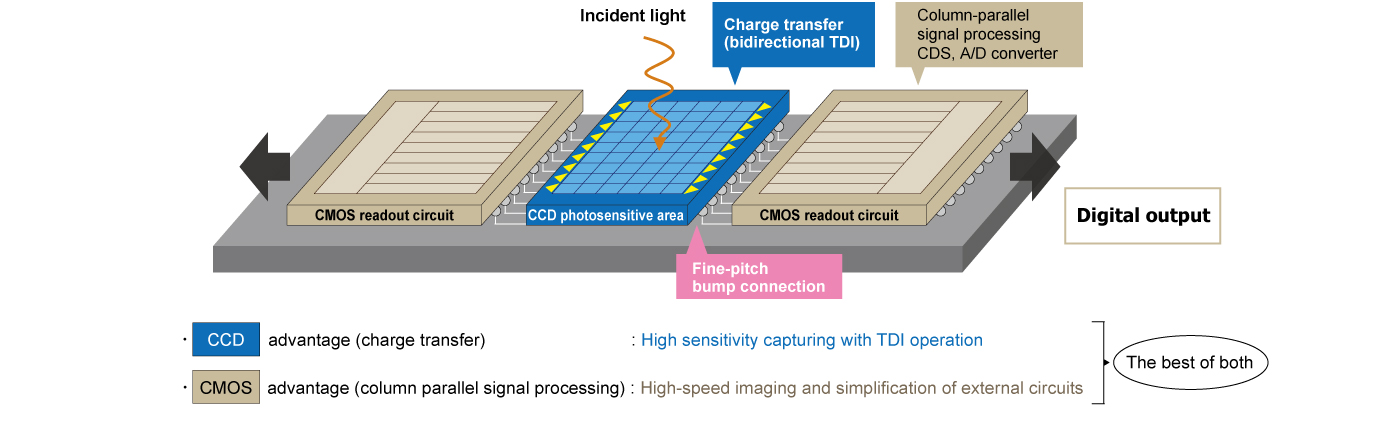

结构/堆叠 CCD-CMOS

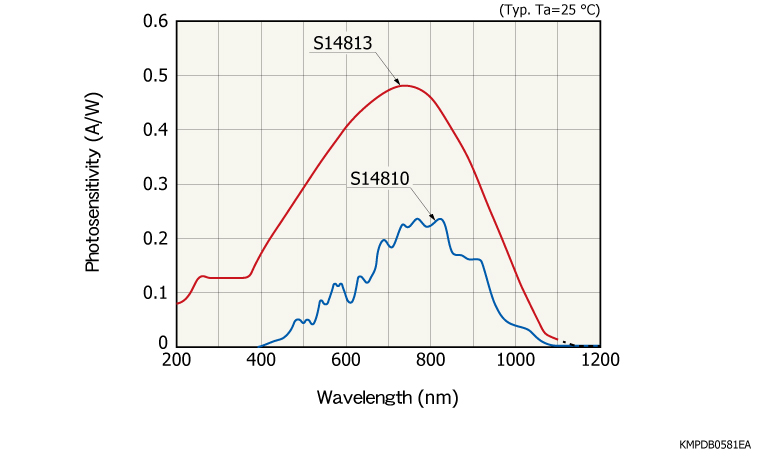

世界级紫外灵敏度和抗紫外线性能
在 S14813 中，我们使用滨松多年来开发的受光面技术，以实现世界级的紫外灵敏度和抗紫外线性能。由于 TDI 方法捕获高速移动物体的图像，设备上的入射光量通常较低，因此必须具有更高的灵敏度。
我们还提供 S14810，当不需要紫外线灵敏度且设备入射光量足够时，它比 S14813 更加平价实惠。

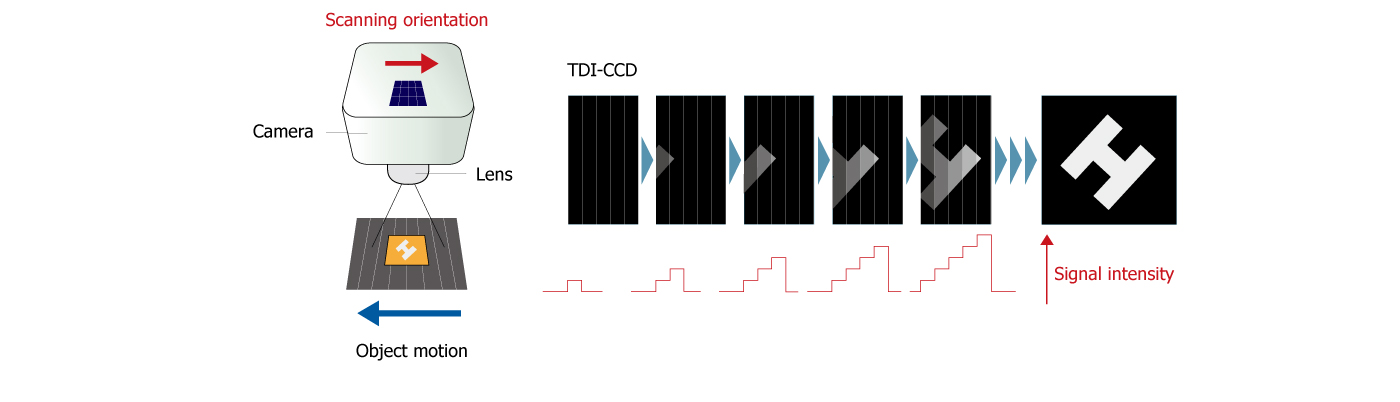

TDI 操作
TDI（时间延迟积分）是 CCD 的一种特殊读出方法。在 CCD 中，每行中的信号电荷在电荷读出期间垂直传输。通过将此传输时间与对象的时刻同步，它能够集成等于 CCD 像素垂直级数的曝光。这种方法称为 TDI，能够以高速和高灵敏度对移动物体进行成像。
阵容
