高紫外灵敏度和抗紫外线性能

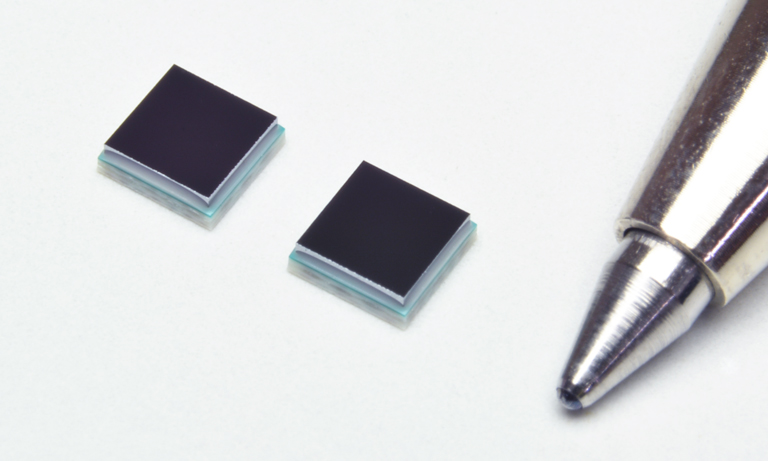

适用于监控强紫外线光源的紧凑型硅光电二极管 "S15289-33"
S15289-33 是一款背照式硅光电二极管，结合了当前紫外光电二极管（高紫外灵敏度 S1337 系列和高抗紫外线 S12698 系列）的功能，同时具有紧凑的 CSP（芯片级封装）结构。
它适用于监控强紫外光源等用途，因为它在紫外区域具有高灵敏度，并且紫外线辐射造成的灵敏度劣化极轻微。
与当前产品相比，它更紧凑，因而能够安装在狭小的空间内，也能够安装在小型和薄型的光监测装置上。
此外，由于沿产品边缘的死区较小，可以并排铺设多个产品。
它还可用于各种分析和光学测量设备。
特点
1) 在紫外区域具有高灵敏度：QE = 75% (λ = 200 nm)
2) 对紫外光劣化作用的抵抗能力高
3) CSP 结构允许并排铺设多个产品
4) 兼容无铅回流焊接
特性
光谱灵敏度特性
紫外光辐射导致的光谱灵敏度变化
详细参数
| 参数 | 新 S15289-33 | 单位 |
|---|---|---|
| 封装尺寸 | 3 × 3 | mm |
| 受光面 | 2.5 × 2.5 | mm |
| 封装 | 玻璃环氧树脂 | - |
| 窗材 | 无 | - |
| 灵敏度波长范围 | 190 至 1100 | nm |
| 感光灵敏度 (λ=200 nm) | 0.12 | A/W |
相关文档
数据单
