适用于各种分析和测量用途的全新硅 APD 阵列阵容

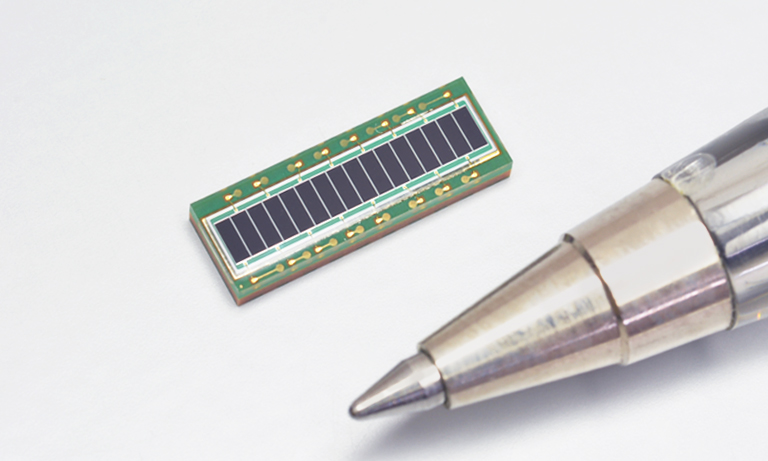

在短波长范围内具有高灵敏度的 1×16 ch APD 阵列 S15249
S15249 是一系列硅 APD（S12053 系列），在紫外光到可见光区域具有高灵敏度，广泛用于分析和测量设备。
通过将各元件之间的间隙大幅缩小到 60 μm，有助于实现测量，同时减少由于间隙造成的信号光损失。
封装紧凑，价格便宜，适合批量生产，采用表面贴装技术，在硅光电二极管阵列 (S15158) 中得到了验证。
主要特点
1) 在短波长范围内具有高灵敏度：QE = 77% (λ = 450 nm)
2) 低偏压操作：击穿电压 = 160 V（典型值）
3) 各元件之间的增益变化很小
特性
光谱灵敏度特性
串扰（代表性例子）
用途
流式细胞术
血液分析
粒子计数器
详细参数
| 参数 | 新 S15249 | 单位 |
|---|---|---|
| 封装 | COB（板载芯片） | - |
| 尺寸 (W × D × H) | 13.2 × 4.5 × 1.6 | mm |
| 受光面（按元件计算） | 0.7 × 2.0 | mm |
| 灵敏度波长范围 | 350 至 1000 | nm |
| 最大灵敏度波长 | 620 | nm |
| 击穿电压 | 160 | V |
| 截止频率 | 100 | MHz |
