我们新增了一种“TOF 传感器”，这种传感器有助于
需要考虑隐私的“状态监控”和“安全监控”等情形。
测距图像传感器 S16443-01WT、S16444-01WT
安防相机旨在捕获可疑人员和活动的图像，因此它们必须能够捕获高分辨率图像。
但是，在对通过检票口或自动门的人数进行“状态监控”、或对卧室或浴室中的老年人或儿童进行“安全监控”等情况下，必须考虑隐私，因此需要对人员和事物的出现或移动进行低分辨率监控。
现在，我们产品阵容中新增了两款测距图像传感器产品（128×8 像素，320×20 像素）和一个专用 ASIC，可以用于这些情形。
测距图像传感器测量到对象的距离，并且它可以根据获取的距离信息对对象的轮廓进行成像。
[ 特点 ]
・准备了 2 种不同的像素数（128 × 8 像素、320 × 20 像素）
・在近红外区域具有更高灵敏度（与前代产品相比）
・更高的背景光耐受性（与前代产品相比）
・紧凑的芯片级封装 (CSP) 型

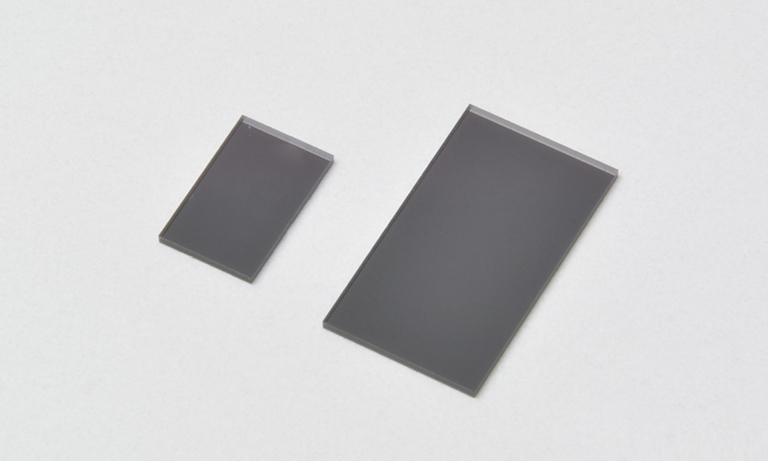

测距图像传感器 S16443-01WT、 S16444-01WT

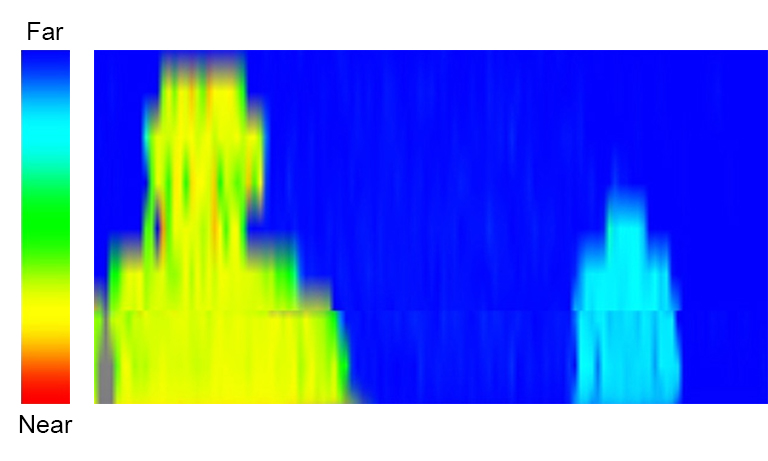

成像示例 （使用 S16443-01WT 对人员进行测距）
用途
情况监控器
障碍物检测
形状识别
无接触式接口
相关视频

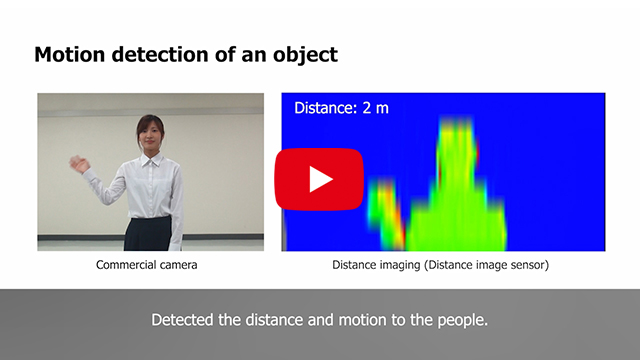

介绍成像示例，说明 128 × 8 像素传感器在人员计数器、手势检测和安全监控等假定情况下的使用。
Close
阵容
| 部件号 | 新 S16443-01WT | 新 S16444-01WT | S15452-01WT | S15453-01WT | S15454-01WT |
|---|---|---|---|---|---|
| 照片 |  |
 |
 |
 |
 |
| 类型 | 面阵传感器 | 线阵传感器 | 面阵传感器 | ||
| 有效像素数 | 128 × 8 | 320 × 20 | 64 | 256 | 96 × 72 |
| 像素间距 (µm) | 20 (H)，201.5 (V) | 20 | 50 | ||
| 影像尺寸 (mm) | 2.56 × 1.612 | 6.4 × 4.03 | 1.28 × 0.05 | 5.12 × 0.05 | 4.8 × 3.6 |
| 感光灵敏度 (nm) | 500 至 1100 | ||||
相关文档
数据单
