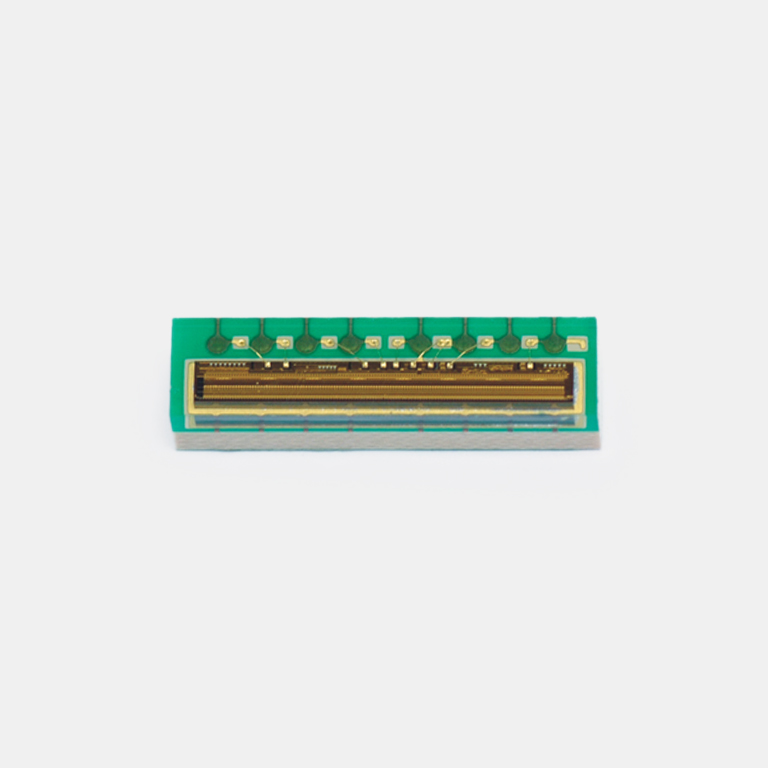

CMOS 线阵图像传感器
S10226-10
小型树脂密封 CMOS 图像传感器
特点
-小型化，高性价比
-像素间距：7.8 μm 像素高度：125 μm
-1024 像素
-3.3 V 单电源供电
-高灵敏度、低暗电流、低噪声
-具有出色输入/输出特性的片上电荷放大器
-内置时序发生电路允许仅使用起动和时钟脉冲输入即可运行
-信号数据率：最大 200 kHz
-光谱响应范围：400 至 1000 nm
详细参数
| 类型 | 树脂密封型封装 |
|---|---|
| 影像尺寸 | 7.9872 x 0.125 mm |
| 有效像素数 | 1024 x 1 像素 |
| 像素尺寸 | 7.8 x 125 μm |
| 光谱响应范围 | 400 至 1000 nm |
| 行速率（最大值） | 194 行/秒 |
| 制冷 | 非冷却型 |
| 窗材 | 硅树脂 |
| 封装 | 玻璃环氧树脂 |
| 测量条件 | 典型值 Ta = 25°C，f(CLK) = 800 kHz，Vdd = 5 V：V(CLK) = V(ST) = 5 V，Vdd = 3.3 V：V(CLK) = V(ST) = 3.3 V，除非另有说明 |
光谱灵敏度特性
外形尺寸图（单位：mm）
