InGaAs 线阵图像传感器

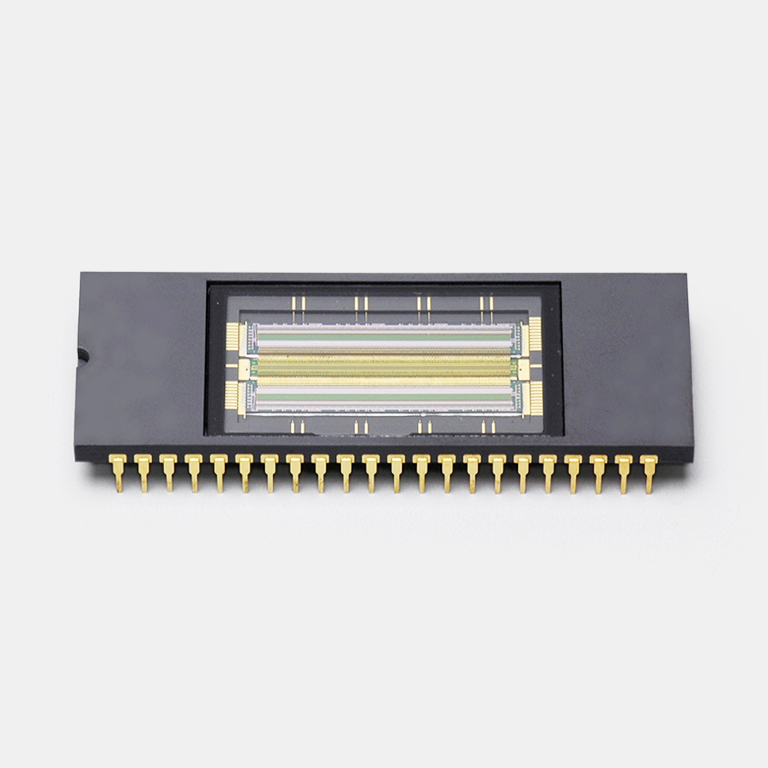

G10768-1024D
近红外图像传感器（0.9 至 1.7 μm），具有 1024 像素和高线速
G10768-1024D 是一款 1024 通道高速红外图像传感器，专为需要多通道高速行速率的异物筛查和医疗诊断设备等用途而设计。信号处理电路使用 CTIA（电容跨阻放大器），允许在通过采样保持电路对所有像素中的信号进行同步积分的同时进行信号读出。通过 8 个输出端口实现高线速。
特点
- 1024 像素 [像素尺寸：25 × 100 μm
- 高线速：最高 39000 线路/秒
- 高速数据率：典型值 5 MHz （最高 6.67 MHz）
- 4 种转换效率等级可供选择
- 包含时序发生电路
- 低暗电流
- 室温运行
应用示例 (SD-OCT)
线性编码器
这款线阵图像传感器具有矩形像素、高行速率和全局快门功能，适用于线性编码器的绝对踪迹读取。
详细参数
| 影像尺寸 | 25.6 x 0.1 mm |
|---|---|
| 像素尺寸 | 25 x 100 μm |
| 像素间距 | 25 μm |
| 像素总数 | 1024 像素 |
| 封装 | 陶瓷 |
| 散热 | 非冷却型 |
| 行速率（最大值） | 39000 行/秒 |
| 灵敏度波长范围 | 900 至 1700 nm |
| 暗电流（最大值） | 5 pA |
| 测量条件 | 典型值 Ta = 25°C，除非另有说明 |
光谱灵敏度特性
外形尺寸图（单位：mm）
相关文档
