InGaAs PIN 光电二极管

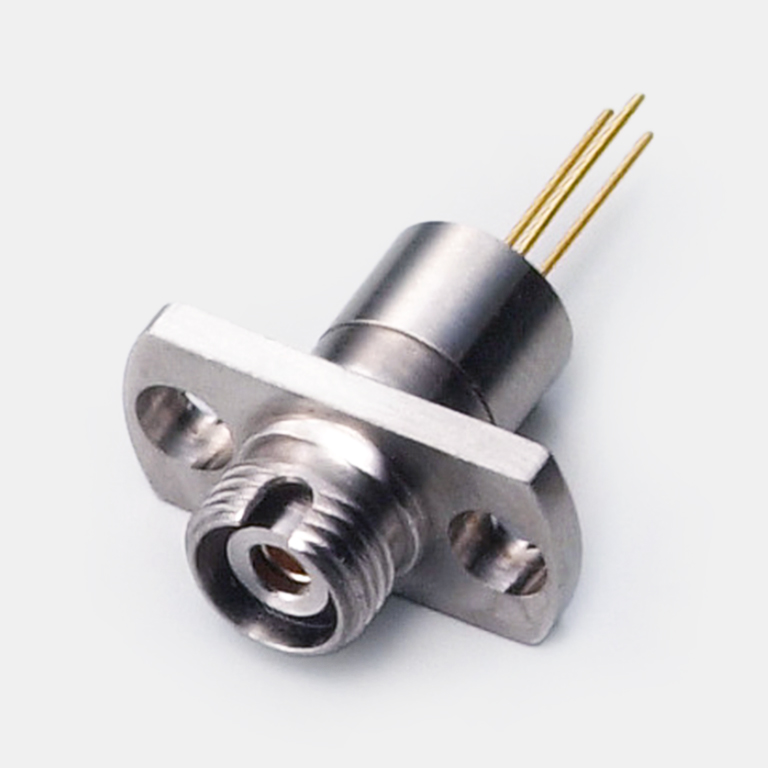

G14942-32
兼容角度 PC，插座型
这是为多普勒 LiDAR 开发的高速光电传感器。这是一种与 FC/角度 PC 兼容的插座型，具有内置高速 InGaAs PIN 光电二极管。
特点
- 高速响应：典型值为 2 GHz
- 低暗电流：典型值为 20 pA
- 兼容 FC/角度 PC
详细参数
| 像素数 | 1 |
|---|---|
| 封装 | 插座 |
| 封装类别 | FC 面板 |
| 制冷 | 非冷却型 |
| 灵敏度波长范围 | 0.9 到 1.7 μm |
| 最大灵敏度波长（典型值） | 1.55 μm |
| 感光灵敏度（典型值） | 0.95 A/W |
| 暗电流（最大值） | 0.4 nA |
| 截止频率（典型值） | 2000 MHz |
| 结电容（典型值） | 1 pF |
| 测量条件 | 典型值 Ta=25°C，感光灵敏度：λ=λp，暗电流：VR = 5 V，截止频率：VR = 5 V，RL = 50 Ω，λ = 1.55 μm，-3 dB，结电容：VR = 5 V，f = 1 MHz，除非另有说明 |
外形尺寸图（单位：mm）
