硅光电二极管

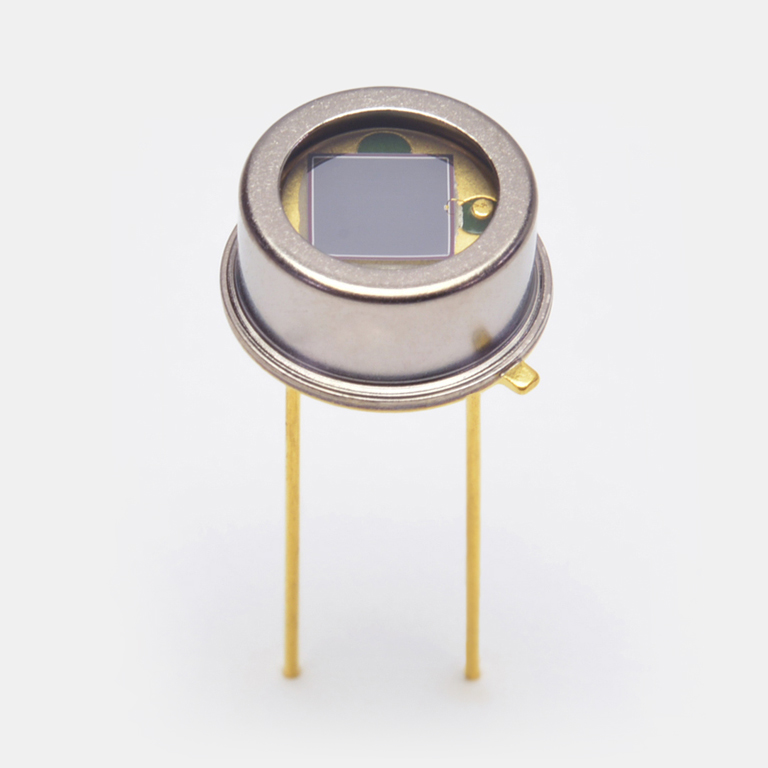

S1336-44BQ
详细参数
| 受光面 | 3.6 × 3.6 mm |
|---|---|
| 像素数 | 1 |
| 封装 | 金属 |
| 封装类别 | TO-5 |
| 制冷 | 非冷却型 |
| 反向电压（最大值） | 5 V |
| 灵敏度波长范围 | 190 至 1100 nm |
| 最大灵敏度波长（典型值） | 960 nm |
| 感光灵敏度（典型值） | 0.5 A/W |
| 暗电流（最大值） | 50 pA |
| 上升时间（典型值） | 0.5 μs |
| 结电容（典型值） | 150 pF |
| 噪声等效功率（典型值） | 1×10-14 W/Hz1/2 |
| 测量条件 | Ta = 25°C，典型值，除非另有说明， 感光灵敏度：λ = 960 nm，暗电流：VR=10 mV，上升时间：VR = 0 V，结电容：VR = 0 V，f = 10 kHz |
光谱灵敏度特性
外形尺寸图（单位：mm）
相关文档
