硅 PIN 光电二极管
S2506-04
塑料 SIP（单列直插式封装）
S2506-04 是一款硅 PIN 光电二极管，具有大感光面，模制到可见光截止塑料 SIP 中，仅用于检测近红外波段。
特点
- 可见光截止
- 塑料封装：7 × 7.8 mm
- 受光面尺寸：2.77 × 2.77 mm
详细参数
| 受光面 | 2.77 × 2.77 mm |
|---|---|
| 像素数 | 1 |
| 封装 | 塑料 |
| 制冷 | 非冷却型 |
| 反向电压（最大值） | 20 V |
| 灵敏度波长范围 | 760 至 1100 nm |
| 最大灵敏度波长（典型值） | 960 nm |
| 感光灵敏度（典型值） | 0.56 A/W |
| 暗电流（最大值） | 10000 pA |
| 截止频率（典型值） | 25 MHz |
| 结电容（典型值） | 15 pF |
| 噪声等效功率（典型值） | 1×10-14 W/Hz1/2 |
| 测量条件 | Ta = 25°C，典型值，感光灵敏度：λ = 780 nm，暗电流：VR = 12 V，截止频率：VR = 12 V，结电容：VR = 12 V，f = 1 MHz，噪声等效功率：VR = 12 V，除非另有说明 |

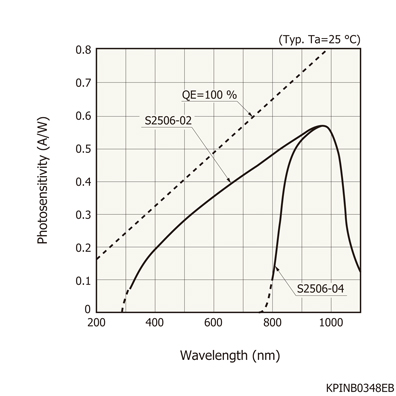

光谱灵敏度特性
外形尺寸图（单位：mm）
相关文档
相关产品
