硅 PIN 光电二极管

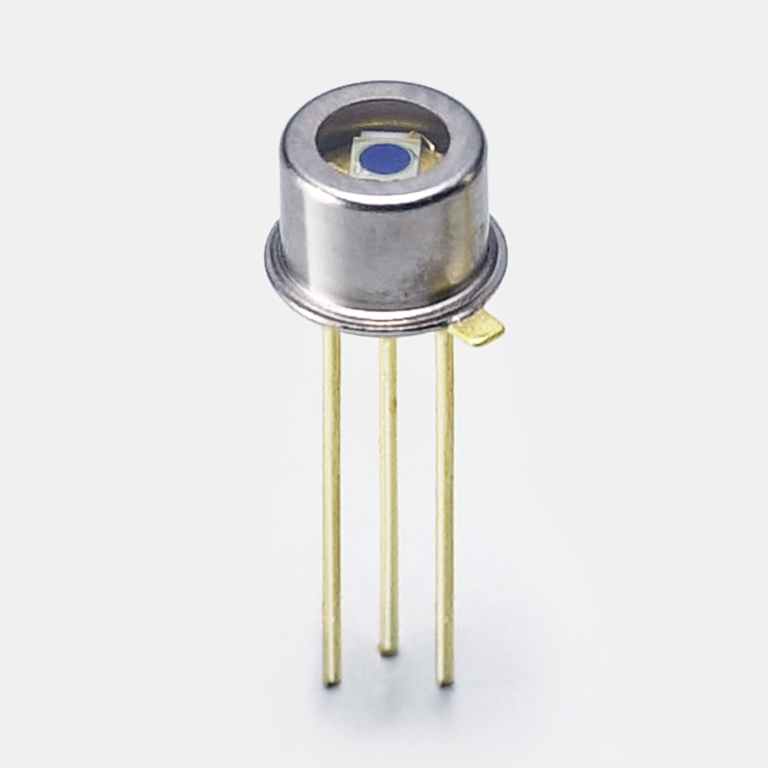

S5821
高性能、高可靠性硅 PIN 光电二极管
S5821 是一款高速硅 PIN 光电二极管，在可见光到近红外光的宽光谱范围内具有高灵敏度。S5821 以低成本提供高性能和可靠性。
特点
-高速响应
-宽光谱灵敏度特性范围
-低暗电流
-低结电容
详细参数
| 受光面 | φ1.2 mm |
|---|---|
| 像元数 | 1 |
| 封装 | 金属 |
| 封装类别 | TO-18 |
| 制冷 | 非冷却型 |
| 反向电压（最大值） | 20 V |
| 光谱响应范围 | 320 至 1100 nm |
| 最大灵敏度波长（典型值） | 960 nm |
| 感光灵敏度（典型值） | 0.52 A/W |
| 暗电流（最大值） | 2000 pA |
| 截止频率（典型值） | 25 MHz |
| 结电容（典型值） | 3 pF |
| 噪声等效功率（典型值） | 6.7×10-15 W/Hz1/2 |
| 测量条件 | 典型值 Ta=25°C，感光灵敏度：λ = 780 nm，暗电流：VR = 10 V，截止频率：VR = 10 V，结电容：VR = 10 V，f = 1 MHz，噪声等效功率：VR = 10 V，λ = λp，除非另有说明 |
光谱灵敏度特性
外形尺寸图（单位：mm）
相关文档
