相关产品 | 混合光电检测器 (HPD)
放大器

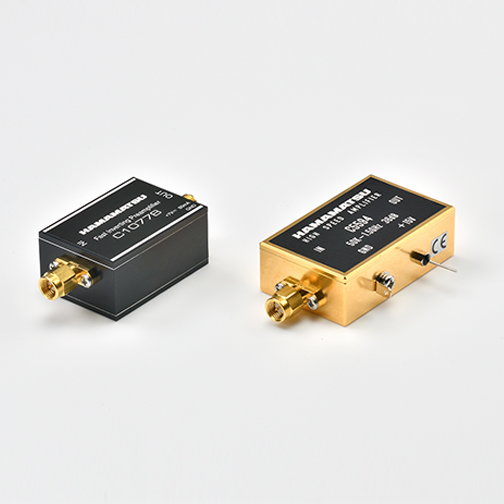

左：C10778，右：C5594-12
| 参数 | C10778 | C5594-12 | 单位 | |
|---|---|---|---|---|
| 极性 | 反相 | 正相 | ― | |
| 频率 | 350 kHz 至 1.5 GHz*1 | 50 kHz 至 1.5 GHz*2 | ― | |
| 增益率 | 最小 | 34*3 | 34*4 | dB |
| 典型值 | 37*3 | 36*4 | dB | |
| 输入/输出阻抗 | 50 | 50 | Ω | |
| 电源电压 | +7 至 +12 | +12 至 +16 | V 直流 | |
*1 上限和下限截止频率定义为在 350 kHz 至 1.5 GHz 频率范围内低于平均增益 3 dB 的点。
*2 上限和下限截止频率定义为在 0.1 GHz 时低于增益率 3 dB 的点。
*3 频率范围为 350 kHz 至 1.5 GHz
*4 频率 = 0.1 GHz
高压电源

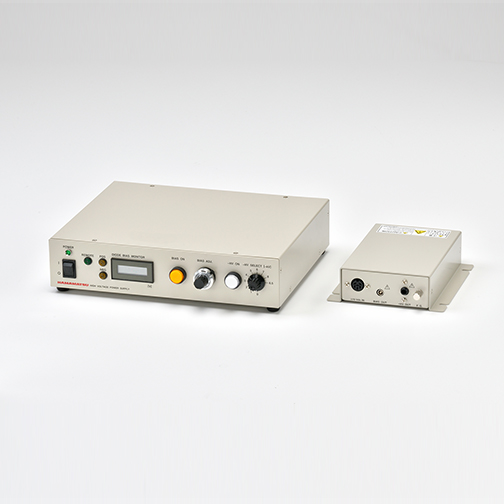

左：C12929，右：C13265
| 参数 | C12929 | C13265 | 单位 | ||
|---|---|---|---|---|---|
| 输入电压 | 100 V 交流至 240 V 交流 | ±15 V 直流 | ― | ||
| 输出 | 偏压 | 电压范围 | 0 至 ±500 | 0 至 +500 | V |
| 最大输出电流 | 500 | μA | |||
| H.V. | 电压范围 | 0 至 -8.5 | kV | ||
| 最大输出电流 | 16 | 2 | μA | ||
