光电倍增管模块
H11526-110
H11526 系列是一款支持门控操作的光电倍增管模块。通过将内置金属封装 PMT 和门电路组合，确保模块外形小巧，同时仍提供出色的特性：最小栅极宽度 100 ns，重复频率 10 kHz。此模块还包含一个高压电源，因此只需调整控制电压即可改变 PMT 增益率。如果高强度光进入模块，内部保护监视器将发出错误信号。
提供两种类型的门控操作，并且每种都有各自的型号。
H11526-110-NN：常开
H11526-110-NF：常闭
有关门控操作的详情，请参阅 PDF 目录。
详细参数
| 光阴极面区域形状 | 圆形 |
|---|---|
| 光阴极面区域尺寸 | 8 mm 直径 |
| 波长（短） | 230 nm |
| 波长（长） | 700 nm |
| 波长（峰值） | 400 nm |
| 尺寸 (W x H x D) | 20.0 x 50.0 x 100.0 mm |
| 输入电压 | +14.5 至 +15.5 V |
| 最大值 输入电压 | 16 V |
| 最大值 输入电流 | 60 mA |
| 最大值 输出信号电流 | 100 μA |
| 最大值 控制电压 | +0.9（输入阻抗 10 k Ω）V |
| 建议的控制电压调节范围 | +0.4 至 +0.9（输入阻抗 10 k Ω）V |
| [Cathode] 亮度灵敏度最小值 | 80 μA/lm |
| [Cathode] 亮度灵敏度典型值 | 105 μA/lm |
| [Cathode] 蓝敏度指数 (CS 5-58) 典型值 | 13.5 |
| [Cathode] 辐射灵敏度典型值 | 110 mA/W |
| [Anode] 亮度灵敏度最小值 | 80 A/lm |
| [Anode] 亮度灵敏度典型值 | 210 A/lm |
| [Anode] 辐射灵敏度典型值 | 2.2 x 105 A/W |
| [Anode] 暗电流（30 分钟后） 典型值 | 1 nA |
| [Anode] 暗电流（30 分钟后） 最大值 | 10 nA |
| [Time Response] 上升时间典型值 | 0.57 ns |
| 波纹噪声（峰间）最大值 | 5 mV |
| 建立时间最大值 | 2 s |
| 工作环境温度 | +5 至 +45 °C |
| 储存温度 | -20 至 +50 °C |
| 重量 | 105 g |

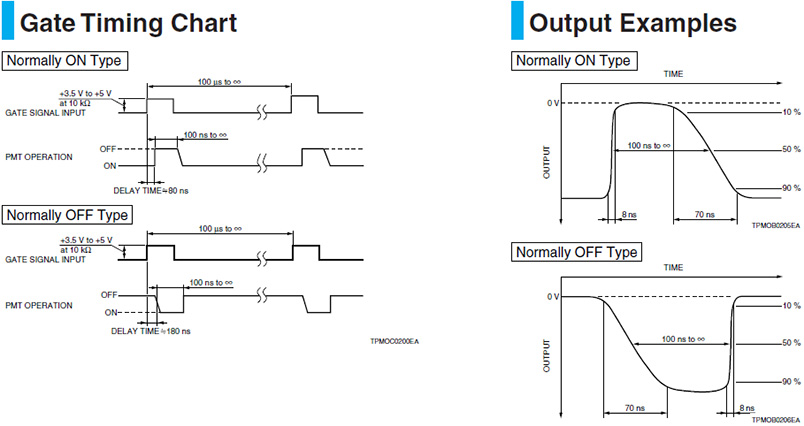

门控特性

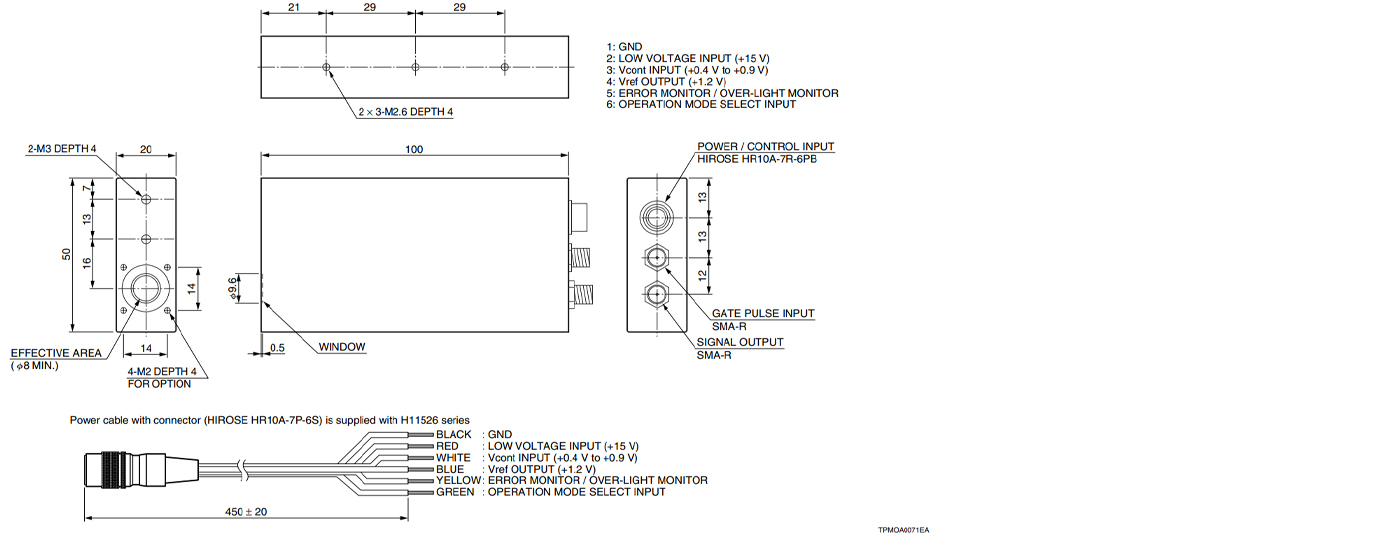

外形尺寸图（单位：mm）
