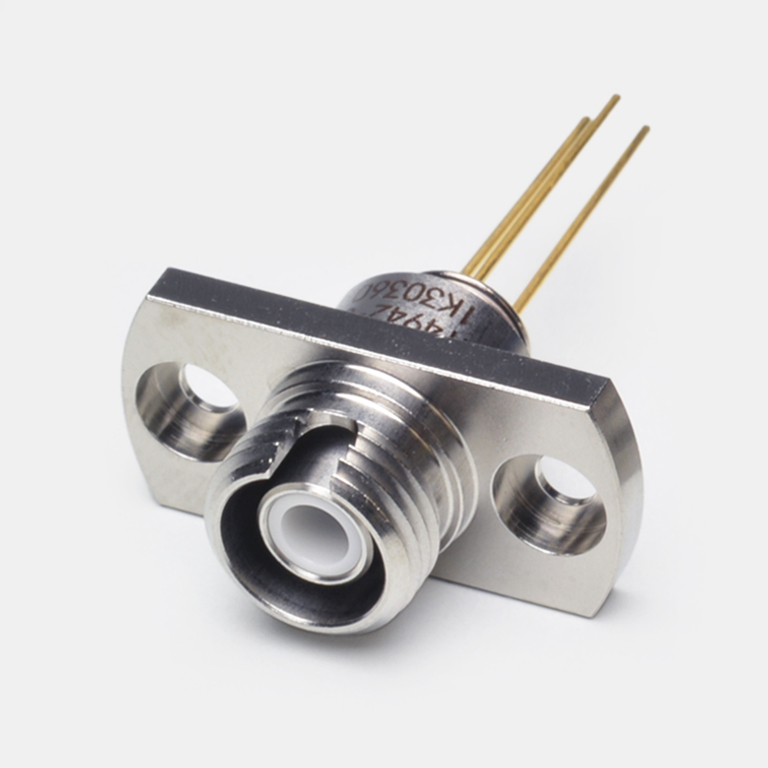

硅 PIN 光电二极管
S12109-32
兼容多模光纤，插座型
这款高速光电传感器是为 0.85 µm 波段的光纤通信开发的。本插座式硅 PIN 光电二极管与 GI-50 多模光纤兼容。
特点
- 高速响应：典型值为 1 GHz
- 兼容 GI-50 多模光纤
详细参数
| 受光面 | - |
|---|---|
| 像元数 | 1 |
| 封装 | 插座 |
| 封装类别 | FC 面板 |
| 制冷 | 非冷却型 |
| 反向电压（最大值） | 20 V |
| 光谱响应范围 | 320 至 1000 nm |
| 最大灵敏度波长（典型值） | 760 nm |
| 感光灵敏度（典型值） | 0.42 A/W |
| 暗电流（最大值） | 100 pA |
| 截止频率（典型值） | 1000 MHz |
| 结电容（典型值） | 1.6 pF |
| 噪声等效功率（典型值） | - |
| 测量条件 | 典型值 Ta=25°C，感光灵敏度：λ = 850 nm，暗电流：VR = 3.3 V，截止频率：VR = 3.3 V，结电容：VR = 3.3 V，f = 1 MHz，除非另有说明 |
外形尺寸图（单位：mm）
