用于单色光 (220, 254, 275 nm) 检测

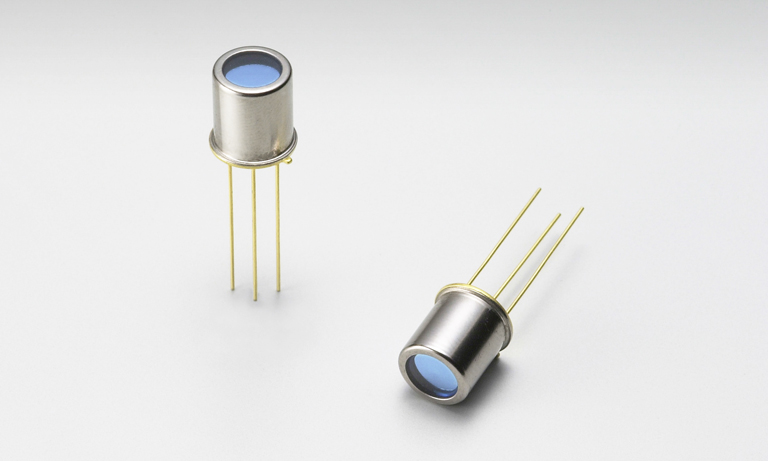

配有带通滤波器的硅光电二极管 S12742 系列
S12742 系列的窗口使用干涉滤波器，仅对单色光敏感。
此系列包含三种具有不同中心灵敏度波长的类型：220 nm、254 nm 和 275 nm。
光谱灵敏度特性半宽度 (FWHM) 在 10 nm（典型）处极窄，因此可以准确进行光度测量，同时杂散光极少。
S12742 系列可定制，以支持其他最大灵敏度波长，例如 340 nm、560 nm。
它可用于水质分析、大气分析和汞灯的紫外线监测。
阵容
| 型号 | 新 S12742-220 | S12742-254 | 新 S12742-275 | 单位 |
|---|---|---|---|---|
| 中心波长 | 220 | 254 | 275 | nm |
| 光谱灵敏度特性半宽度 |
10
|
nm | ||
| 感光灵敏度 (λ=CWL) | 6. | 18 | 10 | mA/W |
| 暗电流（最大 VR=10 mV） |
255
|
pA | ||
| 受光面 |
3.61 × 3.61
|
mm | ||
| 封装 |
TO-5
|
- | ||
光谱灵敏度特性
相关产品

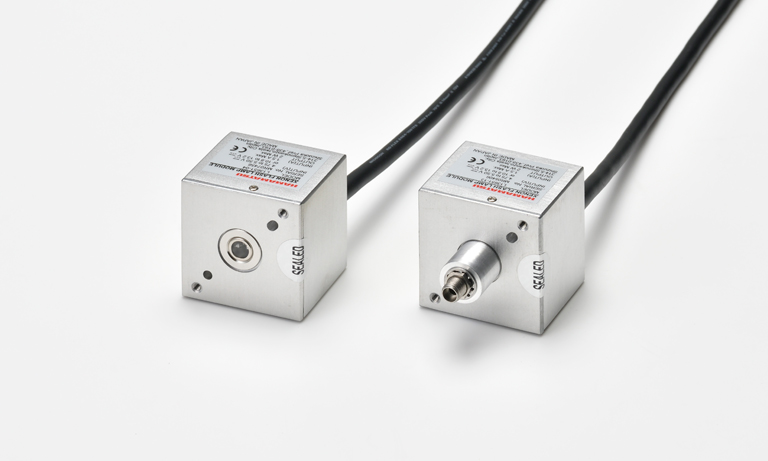

2 W 氙气闪光灯模块 L13651 系列
L13651 系列是一个集成了电源和触发开关的 2 W 氙气灯模块。
这些光源模块是世界上功率等级最小的模块，具有高度的空间设计自由度。
它们可以使用 5 V 电池，因此适合组装到便携式分析仪器中。其他特点包括高稳定性和长寿命。
此外，当这些光源模块与硅光电二极管 S12742 系列结合使用时，每次闪光的高发光效率有助于实现高精度分析和测试。
光谱辐射照度（典型值）
测量条件
主放电电压：600 V
主放电电容：0.141 µF
重复频率：79 Hz
探测器：光电倍增管（Cs-Te 光阴极面）（200 至 320 nm）
光电倍增管（多碱光阴极面）（280 至 720 nm）
硅光电二极管（680 至 1100 nm）
测量距离：50 cm
数据单
