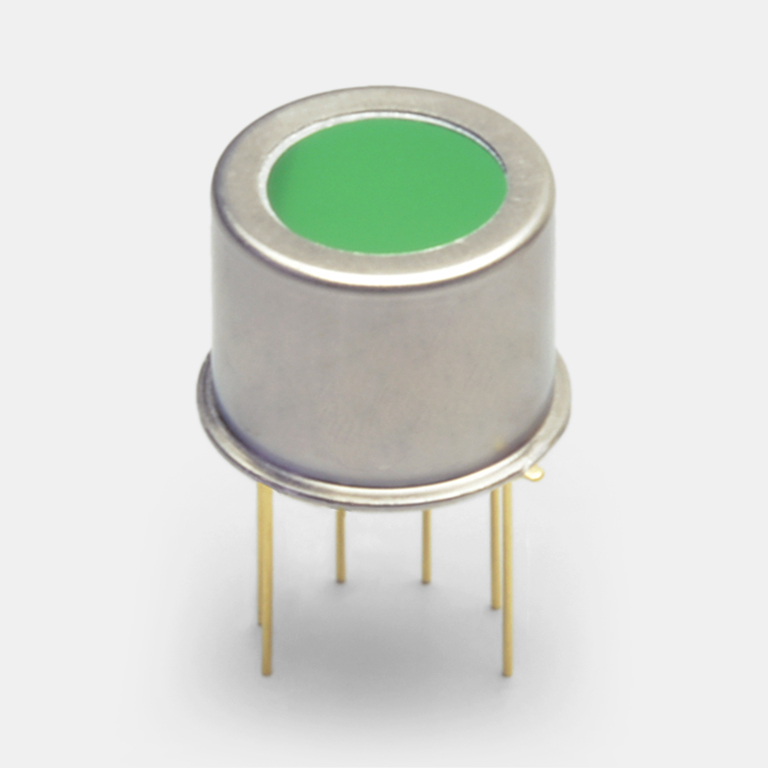

InAsSb 光伏元件
P13894-011MA
在 11 μm 以内的光谱带实现高速响应和高灵敏度，红外探测器
P13894 系列是光伏型红外探测器，使用滨松独特的晶体生长技术和工艺技术，在高达 11 μm 的光谱范围实现高灵敏度。此类产品是环保型红外探测器，不使用 RoHS 指令限制使用的汞或镉等物质。它们是含有此类物质的前代产品的替代产品。它们紧凑且易于操作。
特点
- 高灵敏度
- 高速响应
- 高分流电阻
- 非冷却型
- 符合 RoHS 的产品（无铅、汞、镉）
详细参数
| 受光面 | 1×1 mm |
|---|---|
| 像元数 | 1 |
| 封装类别 | TO-5 |
| 封装 | 金属 |
| 制冷 | 非冷却型 |
| 截止波长（典型值） | 11 μm |
| 最大灵敏度波长（典型值） | 5.6 μm |
| 感光灵敏度（典型值） | 0.0019 A/W |
| 检测率 D*（典型值） | 6.5×107 cm・Hz1/2/W |
| 噪声等效功率（典型值） | 1.5×10-9 W/Hz1/2 |
| 上升时间（典型值） | 3 ns |
| 结电容（典型值） | 0.6 pF |
| 测量条件 | Ta = 25°C，检测率 D*：λ = λp，fc = 1200 Hz，Δf = 1 Hz，结电容：VR = 0 V，f = 1 MHz |
光谱灵敏度特性
外形尺寸图（单位：mm）
