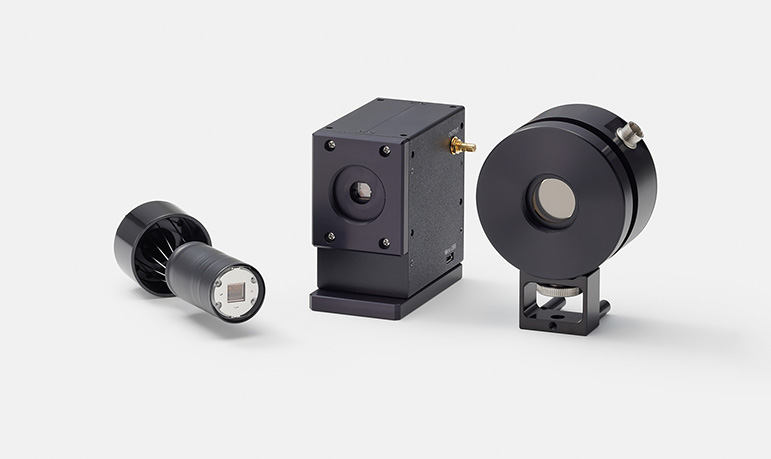

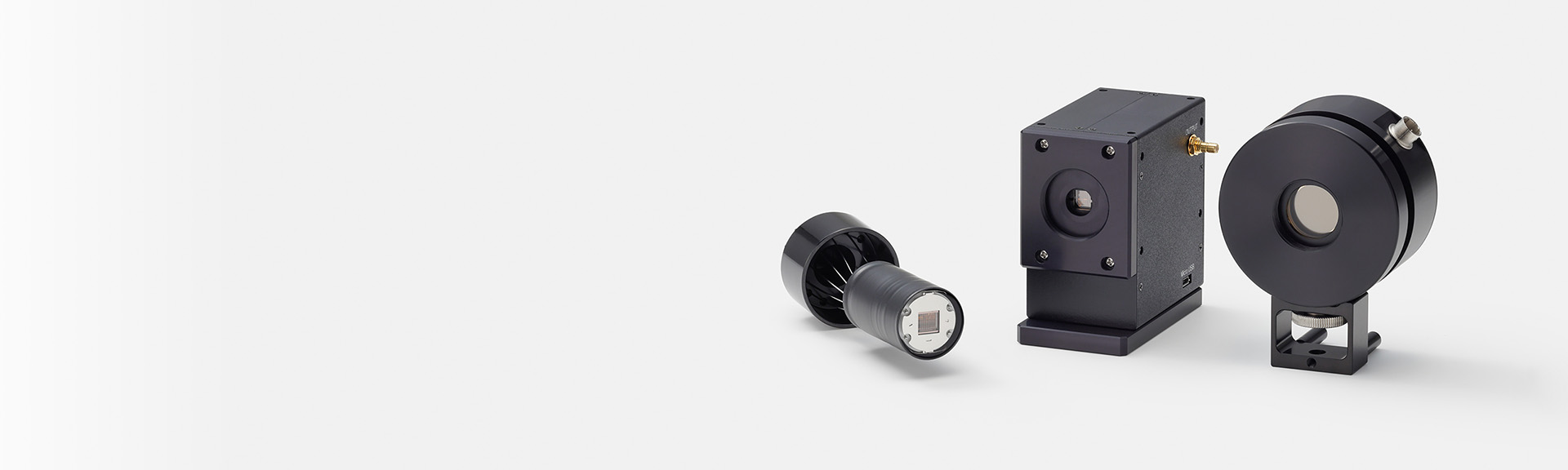

THz 传感器对太赫兹波长范围敏感,近年备受关注。此类传感器利用超表面技术将太赫兹波转换为电子。

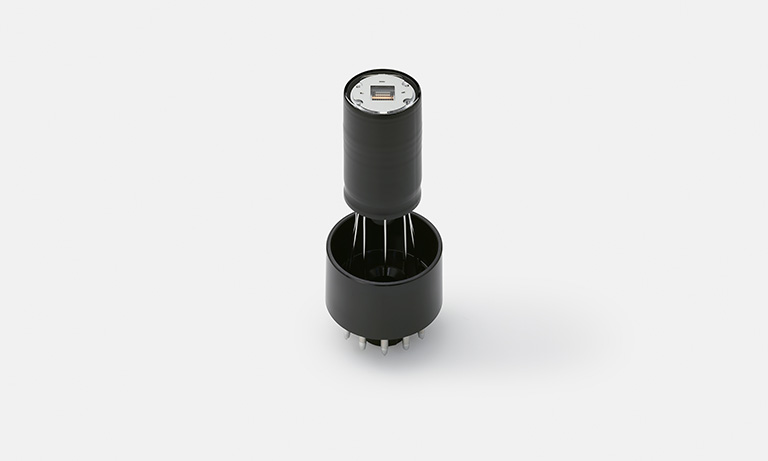

R17201-01 是一款光电倍增管 (PMT),利用超表面技术进行 THz 波到电子的转换,并在 THz 波长范围具有灵敏度。该装置利用场致电子发射技术,其信号电流随入射 THz 波的电场强度呈非线性变化,从而能够增强并检测传统探测器难以检测到的 THz 波细微变化。

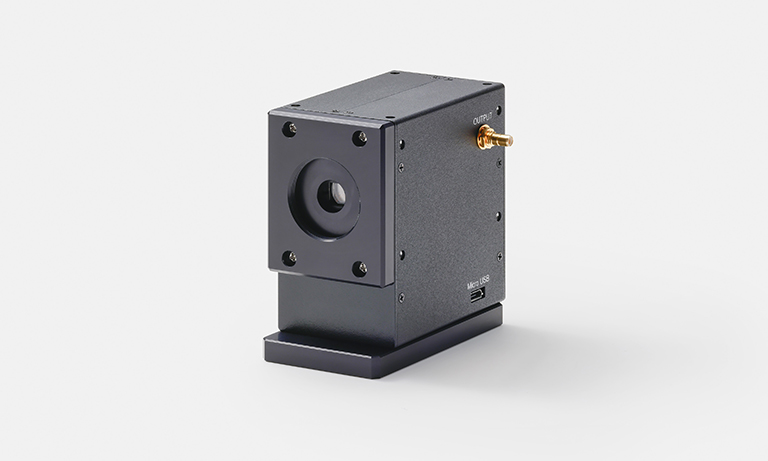

H17362 是一个光电倍增管 (PMT) 模块,利用超表面技术进行 THz 波到电子的转换,并在 THz 波段具有灵敏度。这一 THz PMT 模块在一个小巧的外壳中集成了 THz PMT、驱动电路和高压电源。只需通过 USB 将其连接到 PC 即可运行。它配有一个可以轻松安装在光学台上的连接件和一个用于连接光学组件的 C 型接口适配器。即便是初次安装光电倍增管的新手也能轻松操作。

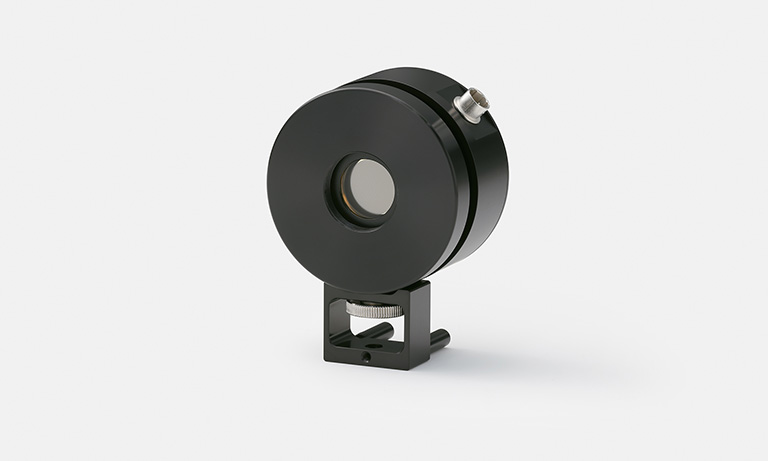

C17198 是一种利用超表面技术进行 THz 波到电子转换的成像设备,在 THz 波长范围具有灵敏度。该设备可作为实验室用“THz 光束可视仪”,能够观察附近不可见的 THz 波,实现可视化。此外,该仪器还能实现高达 1000 fps 的高速成像,对传统热成像 THz 相机难以捕捉的高速现象进行成像。
