光电倍增管模块
H14603-200
H14603 系列是紧凑型光电倍增管模块，包含一个金属封装 PMT、一个高压电源电路和一个低噪声放大器。尽管其尺寸与光电二极管相同，但该 PMT 模块可提供高增益、宽动态范围和高速响应。 具有直流至 200 kHz 频带的放大器可将 PMT 电流输出转换为电压输出，以便能轻松处理信号。
详细参数
| 光阴极面区域形状 | 圆形 |
|---|---|
| 光阴极面区域尺寸 | 8 mm 直径 |
| 波长（短） | 300 nm |
| 波长（长） | 650 nm |
| 波长（峰值） | 400 nm |
| 尺寸 (W x H x D) | 22.0 mm x 22.0 mm x 30.0 mm |
| 输入电压 | +/-4.5 V 至 +/-5.5 V |
| 最大值 输入电压 | +/-5.5 V |
| 最大值 输入电流 | +6.5 mA / -3.5 mA |
| 最大值 输出信号电压 | +4 V（负载电阻 10 kΩ） |
| 最大值 控制电压 | +1.0 V（输入阻抗 1 MΩ） |
| 建议的控制电压调节范围 | +0.5 V 至 +1.0 V（输入阻抗 1 MΩ） |
| [阴极] 亮度灵敏度最小值 | 100 μA/lm |
| [阴极] 亮度灵敏度典型值 | 135 μA/lm |
| [阴极] 蓝光灵敏度指数典型值 | 15.5 |
| [阴极] 辐射灵敏度典型值 | 130 mA/W |
| [阳极] 亮度灵敏度最小值 | 4.0 x 106 V/lm |
| [阳极] 亮度灵敏度典型值 | 1.4 x 107 V/lm |
| [阳极] 辐射灵敏度典型值 | 13 V/nW |
| [阳极] 输出电压取决于 PMT 暗电流典型值 | 0.05 mV |
| [阳极] 输出电压取决于 PMT 暗电流最大值 | 0.5 mV |
| 电流至电压转换系数 | 0.1 V/μA |
| 输出偏移电压典型值 | +/-1 mV |
| 波纹噪声（峰间）最大值 | 0.5 mV |
| 建立时间最大值 | 10 s |
| 工作环境温度 | +5°C 至 +50°C |
| 储存温度 | -20°C 至 +50°C |
| 重量 | 42 g |

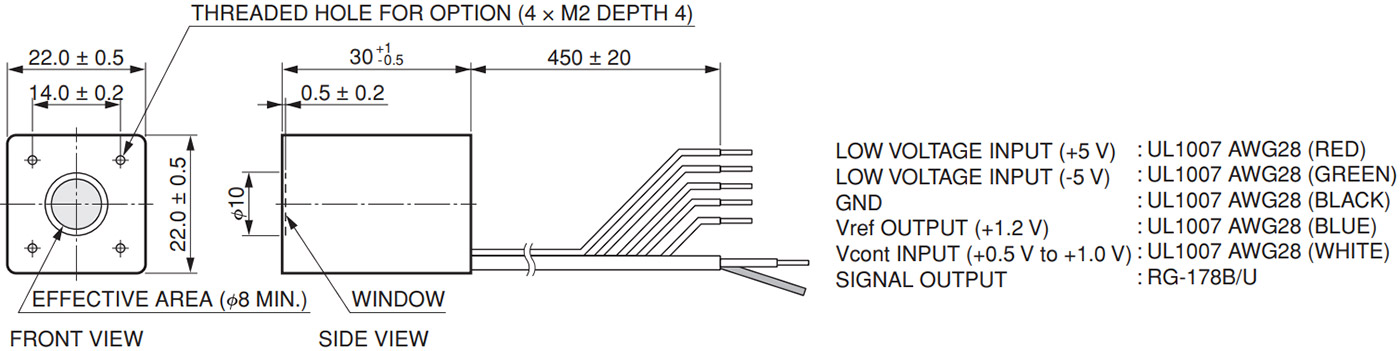

外形尺寸图（单位：mm）
