光电倍增管模块
H15460-40 光电倍增管模块采用 GaAsP 光阴极面光电倍增管。
受光面为 14 mm 正方形,是多光子激发显微镜的理想选择。H15460-40 还包括一个频带为 30 MHz 且电流至电压转换系数为 0.02 V/μA 的放大器。
多光子显微成像技术是一种用于观测紫外线至可见光区域荧光的技术,通过同时吸收两个光子激发荧光分子时,便会出现这种荧光。

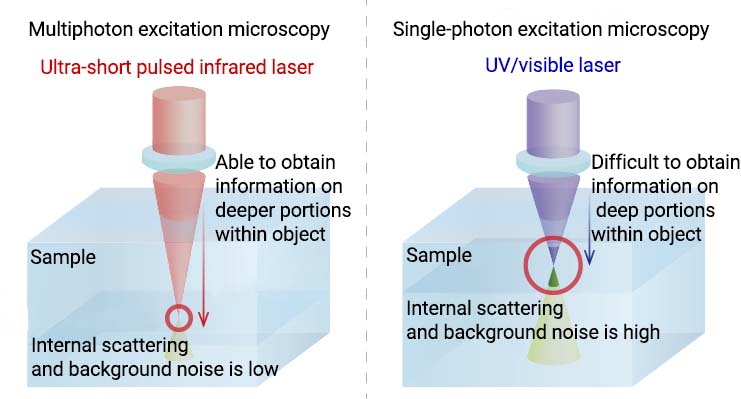

共同荧光测定中激发光的波长短于荧光波长。然而,多光子光谱仪在近红外区域使用波长长于荧光波长的激发光。由于近红外光比可见光更容易通过物体,因此它可以提供关于物体内深层部分的信息,并且还可以减少物体内部的散射和背景噪声的影响。此外,近红外光的能量低于可见光和紫外光,从而最大限度地减少对细胞的损害。
该视频显示了在距小鼠脑表面约 500 μm 的深度,第五皮层中超过 6000 个单一神经元的活动。该视频是使用一款装备了 H15460-40 光电传感器模块和专用光学系统的显微镜拍摄的。H15460-40 具有大受光面和高灵敏度,提供了宽视野和高分辨率的观测结果。

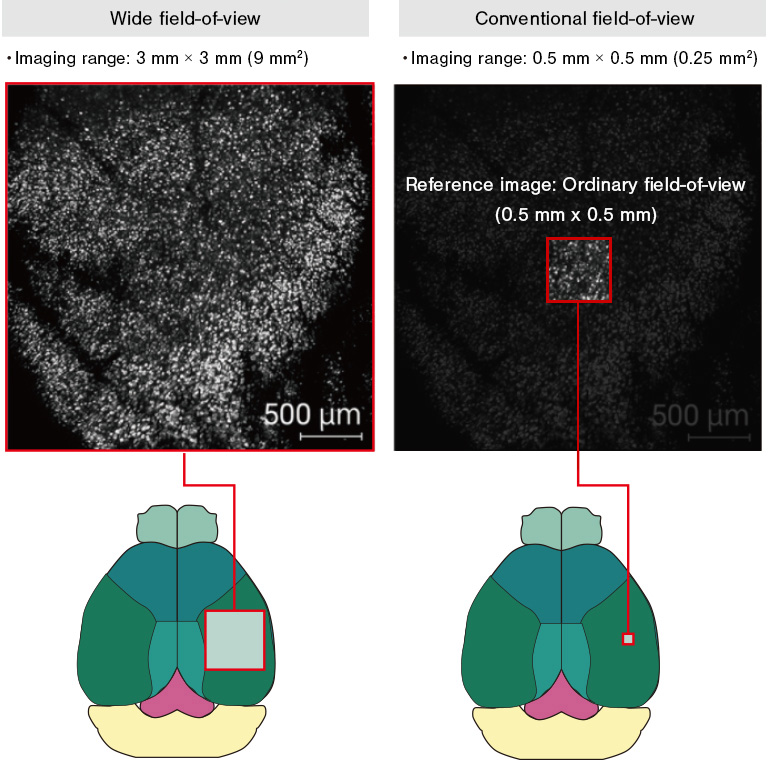

到目前为止,用双光子显微镜观测到的视野仅限于约 0.25 mm2 的极小面积。这种非常狭窄的视野阻止了同时观察多个脑区域的神经细胞,即使在观察小鼠等小动物时也是如此。

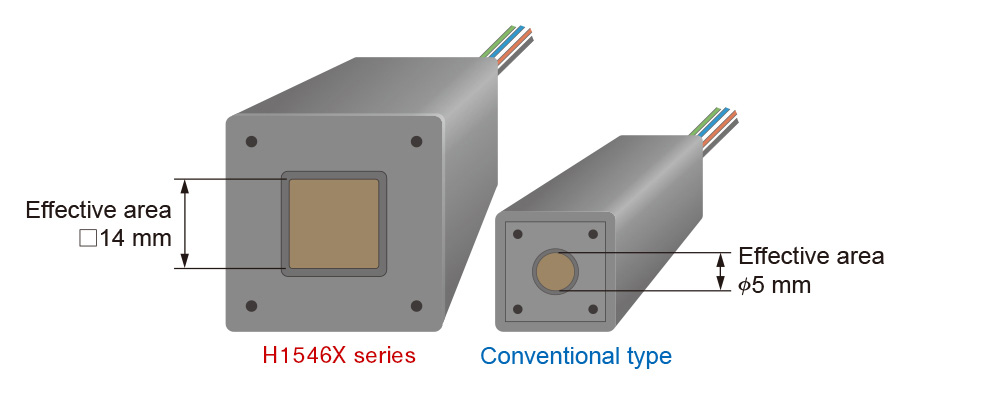

为了在更宽的视野下进行这项测量,具有大感光面的 H15460-40 光电传感器模块结合使用了设计独特的光学系统。这种设置允许在比传统双光子显微镜大 36 倍的视野中观察细胞活动。
以高时间分辨率观察细胞活动通常需要执行高速激光扫描。然而,提高激光扫描速度会缩短激光在样品上的停留时间,使得难以捕捉具有高信噪比的图像。荧光强度也显著下降,尤其是在样品内执行深层成像时。

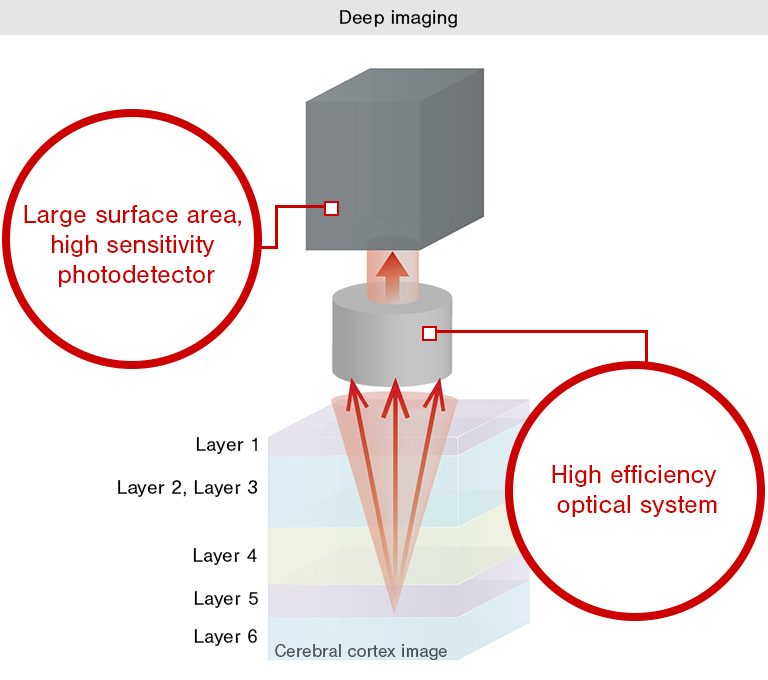

为了应对这一问题并捕捉更多的荧光,H15460-40 光电传感器模块具有高灵敏度和大受光面,可与具有独特设计的光学系统结合使用。这允许捕捉更多直到现在才能检测到的荧光,因此即使在样品内进行深层观察时也可以捕捉具有高信噪比的图像。
光阴极面区域形状 | 正方形 |
---|---|
光阴极面区域尺寸 | 14 mm x 14 mm |
波长(短) | 300 nm |
波长(长) | 740 nm |
波长(峰值) | 520 nm |

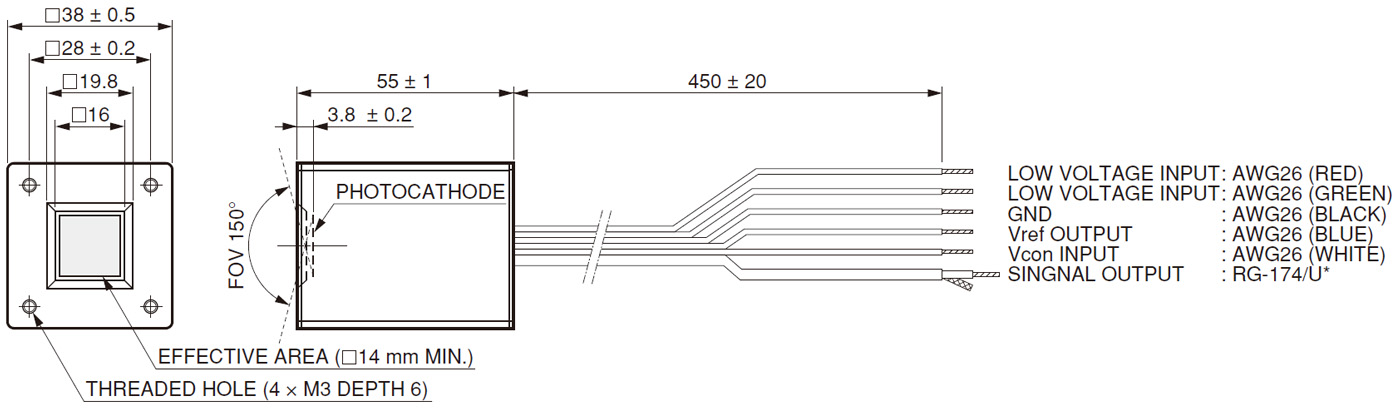

尺寸 (W x H x D) | 38 mm x 38 mm x 55 mm |
输入电压 | +/-4.5 V 至 +/-5.5 V |
最大值 输入电压 | +/-5.5 V |
最大值 输入电流 | +26 mA / -23 mA |
最大值 输出信号电压 | 2 V |
最大值 控制电压 | 1.1 V |
建议的控制电压调节范围 | +0.5 V 至 +1.0 V |
[阴极] 辐射灵敏度典型值 | 189 mA/W |
[阴极] 亮度灵敏度典型值 | 850 μA/lm |
[阳极] 辐射灵敏度典型值 | 7.5 V/nW |
[阳极] 亮度灵敏度典型值 | 3.4 x 107 V/lm |
[阳极] 输出电压取决于 PMT 暗电流典型值 | 0.2 mV |
[阳极] 输出电压取决于 PMT 暗电流最大值 | 1 mV |
电流至电压转换系数 | 0.02 V/uA |
输出偏移电压典型值 | +/-5 mV |
波纹噪声(峰间)最大值 | 0.5 mV |
建立时间最大值 | 10 s |
工作环境温度 | +5°C 至 +50°C |
储存温度 | -20°C 至 +50°C |
重量 | 98 g |
