光谱探测器 PMT 模块
H15441-20
H15441-20 由一个 6 通道多阳极型光电倍增管、一个高压电源电路和一个光模组成。
特性
标准带通滤波器和二向色镜
| 参数 | H15441-20 | 单位 | |
|---|---|---|---|
| 滤波器中心波长/宽度（半宽度） | 通道 1 | 785(62) | mm |
| 通道 2 | 710(40) | ||
| 通道 3 | 660(30) | ||
| CH4 | 615(24) | ||
| 通道 5 | 575(25) | ||
| 通道 6 | 529(28) | ||
除了上述光学系统的标准设置外，我们还能现货提供各种带通滤波器和二向色镜。
选择所需的合适带通滤波器和二向色镜，来配置 PMT 模块，提供最适合您用途的光学组件。此外，如果您提供自己的带通滤波器，我们可以用它来配置符合您要求的光学系统。请咨询我们了解详情。
详细参数
| 参数 | 值 | 单位 | ||||
|---|---|---|---|---|---|---|
| 最大定额 | 输入电压 | HVPS | +5.5 | V | ||
| AMP | ±5.5 | |||||
| -高压控制电压 | +0.9 | V | ||||
| 单个增益调节电压 | +4.2 | V | ||||
| 输出信号电压 | 直流输出/通道 | +0.5 | V | |||
| 脉冲输出/通道 | +3.0 | |||||
| 一般规格 | 输入电压范围 | HVPS | +4.5 到 +5.5 | V | ||
| AMP | ±4.5 到 ±5.5 | |||||
| 建议的单个增益调节电压范围 | 0 到 +4.0 | V | ||||
| 增益调节范围 | 1 到 0.01 | /通道 | ||||
| 参考电压输出 | -高压控制 | +1.25 | V | |||
| 单个增益调节 | +4.5 | |||||
| 波长范围 | 400 至 900 | nm | ||||
| 整体尺寸 | 104 x 78 x 30 | mm | ||||
| 工作环境温度 | +5 至 +45 | ℃ | ||||
| 存储温度 | -15 至 +45 | ℃ | ||||
| 重量 | 典型值 | 281 | g | |||
| 光电倍增管规格 | 阴极辐射灵敏度 | 在 785 nm 处 | 51.9 | mA/W | ||
| 在 710 nm 处 | 69.5 | |||||
| 在 660 nm 处 | 77.4 | |||||
| 在 615 nm 处 | 77.3 | |||||
| 在 575 nm 处 | 75.9 | |||||
| 在 529 nm 处 | 74.9 | |||||
| 阳极暗电流/通道 | 典型值 | 5 | nA | |||
| 增益率 | 典型值 | 1 x 106 | ― | |||
| 模块/安培规格 | 电源电流 | HVPS | +80 | mA | ||
| AMP | ±30 | |||||
| 频带 | 最小 | 直流 到 1 MHz | ― | |||
| 电流至电压转换系数 | 0.02 | V/µA | ||||
| 纹波噪声 (p-p) | 最大值 | 1 | mV | |||
| 偏移电压 | 典型值 | ±3 | mV | |||

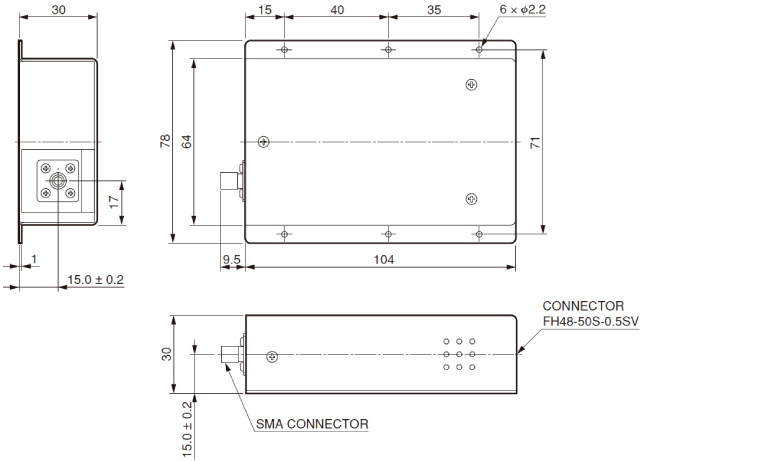

外形尺寸图
单位：mm
柔性扁平电缆（随附）
