颜色传感器
S11012-01CR
12 位数字输出，COB 型
S11012-01CR 是一款数字颜色传感器，对光谱的红光 (λ=615 nm)、绿光 (λ=540 nm)、蓝光 (λ=465 nm) 区域敏感。检测信号作为 12 位数字数据串行输出。内置三个 12 位寄存器，可同时测量 RGB 三颜色。灵敏度水平可通过两个步骤调节，以涵盖广泛的光谱范围。
特点
-12 位数字输出
-COB 型
-同时测量 RGB 三颜色
-两步灵敏度切换（灵敏度比率为 1:9）
-低电压 (3.3 V) 供电
-CMOS 单片光 IC
-无需外部组件
详细参数
| 产品类型 | RGB 数字颜色传感器 |
|---|---|
| 封装材料 | 塑料 |
| 封装类型 | COB 型 |
| 封装尺寸 | 3.43 × 3.8 × 1.6 mm |
| 受光面 | 1.2 × 1.2 mm |
| 灵敏度波长范围（蓝色） | 400 至 540，800 至 1000 nm |
| 灵敏度波长范围（绿色） | 480 至 600，760 至 1000 nm |
| 灵敏度波长范围（红色） | 590 至 1000 nm |
| 感光灵敏度低范围（蓝色） | 0.3 LSB/lx |
| 感光灵敏度低范围（绿色） | 0.6 LSB/lx |
| 感光灵敏度低范围（红色） | 1.4 LSB/lx |
| 感光灵敏度高范围（蓝色） | 2.6 LSB/lx |
| 感光灵敏度高范围（绿色） | 5.3 LSB/lx |
| 感光灵敏度高范围（红色） | 12.9 LSB/lx |
| 工作温度 | -20 至 +80 摄氏度 |
| 储存温度 | -20 至 +85 摄氏度 |
| 备注 | 该传感器在红外区域也很灵敏，因此可根据需要过滤红外光。 |
| 测量条件 | 典型值 Ta = 25°C，Vdd = 5 V，Tg = 100 ms，一个光源，除非另有说明 |

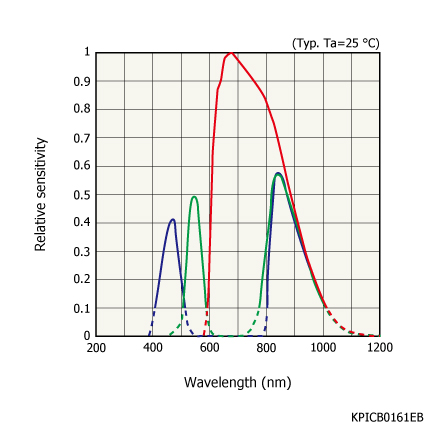

光谱灵敏度特性
外形尺寸图（单位：mm）
相关文档
相关产品
