光电倍增管模块
H15620-45
H15620 系列是一款紧凑型 NIR-PMT 模块（近红外光电倍增管），利用我们先进的光阴极面技术开发而成。
详细参数
| 光阴极面区域形状 | 圆形 |
|---|---|
| 光阴极面区域尺寸 | Φ1.6 mm |
| 波长（短） | 950 nm |
| 波长（长） | 1400 nm |
| 波长（峰值） | 1300 nm |
| 尺寸 (W x H x D) | 80 mm x 60 mm x 126 mm |
| 输入电压 | +4.5 至 +5.5 V |
| 最大值 输入电压 | +5.5 V |
| 最大值 输入电流 | +100 mA |
| 最大值 输出信号电流 | 1 µA |
| 最大值 控制电压 | +0.9 V |
| 建议的控制电压调节范围 | +0.5 至 +0.8 V |
| [阴极] 辐射灵敏度典型值 | 21 mA/W |
| [阳极] 辐射灵敏度典型值 | 2.1 x 104 A/W |
| [阳极] 暗电流典型值 | 13 nA（PMT 温度 -30°C） |
| [阳极] 暗电流最大值 | 130 nA（PMT 温度 -30°C） |
| [时间响应] 上升时间典型值 | 0.9 ns |
| 波纹噪声（峰间）最大值 | 0.6 mV |
| 建立时间最大值 | 0.2 s |
| 工作环境温度 | +5 至 +35 °C |
| 储存温度 | -20 至 +50 °C |
| 重量 | 720 g |
制冷规格
| 参数 | H15620 系列 | 单位 |
|---|---|---|
| 冷却方法 | 热电制冷 | - |
| 最高冷却温度 (ΔT) | 65 | ℃ |
| 达到最高冷却温度的时间 | 大约 20 | min |

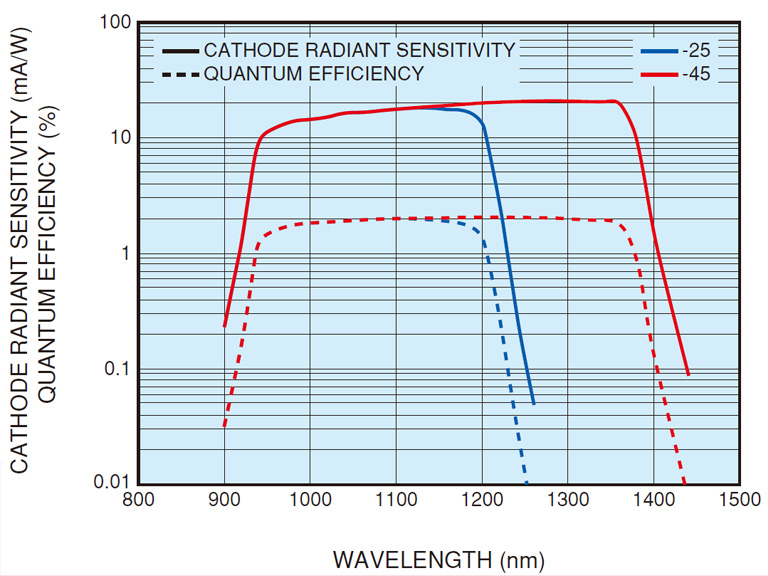

光谱灵敏度特性（典型值）

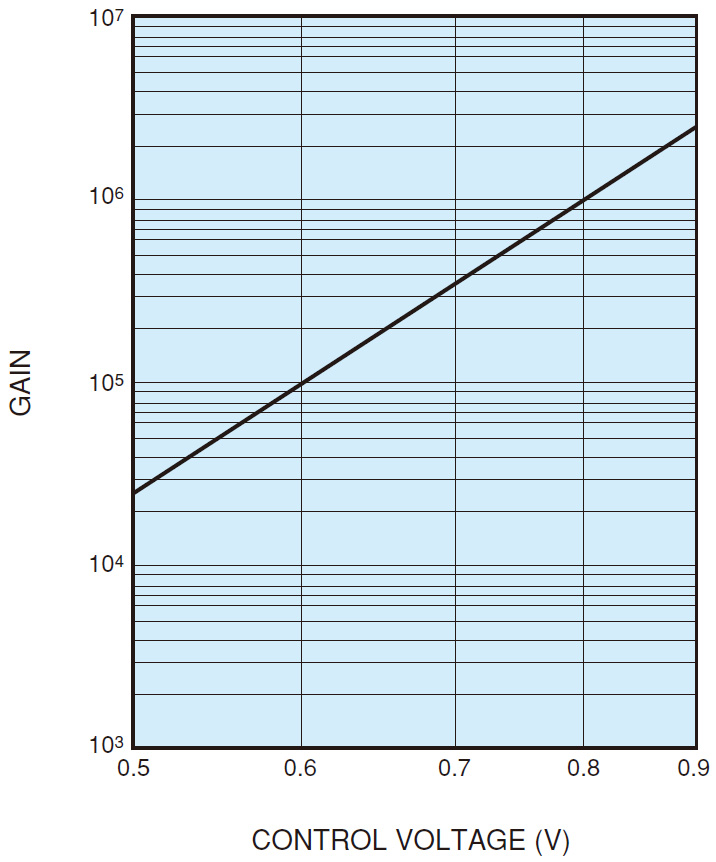

增益（典型值）

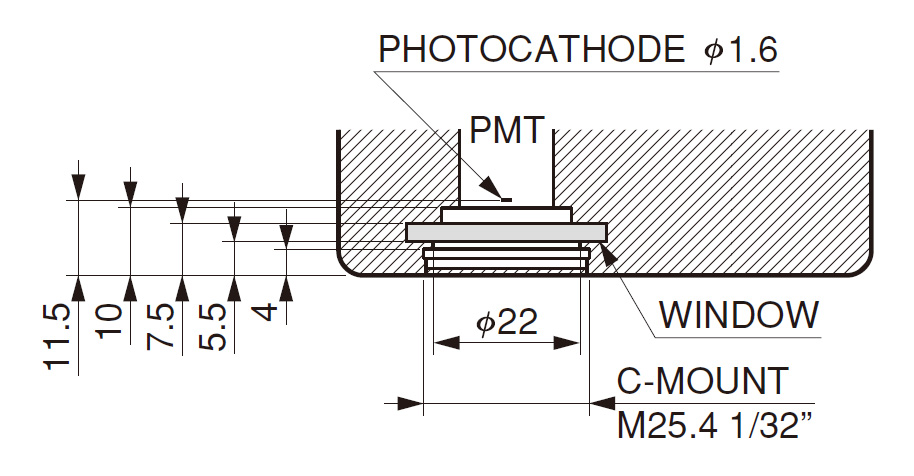

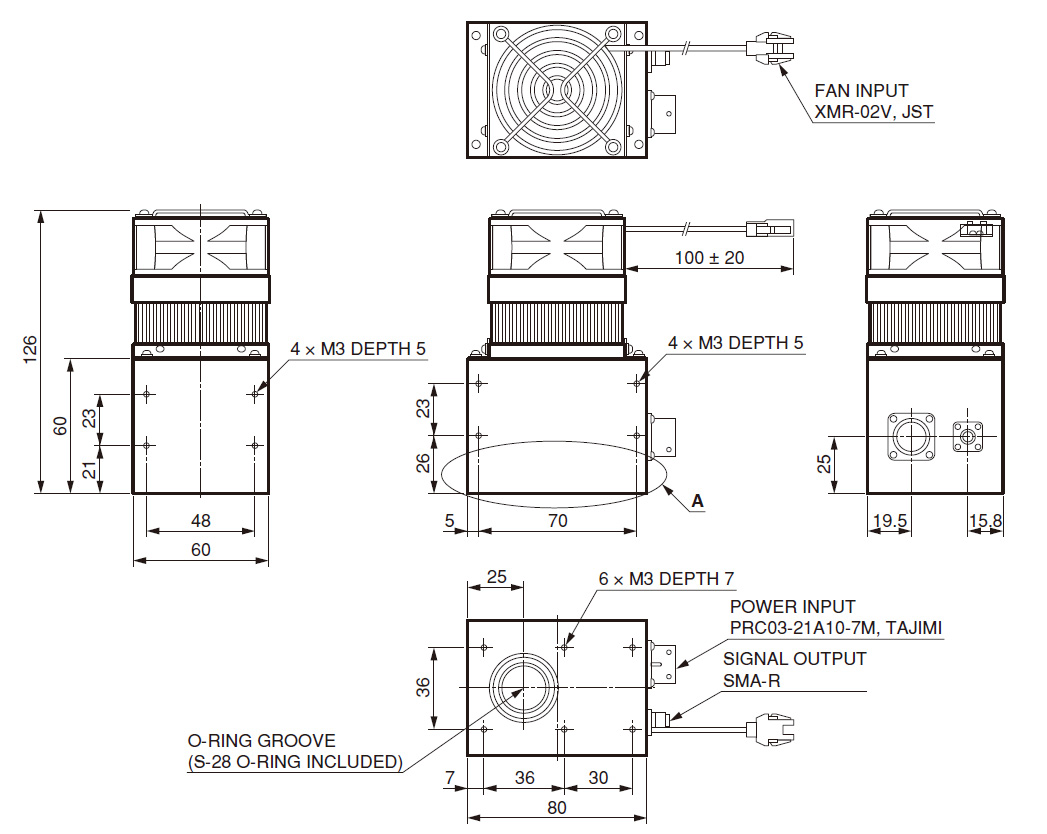

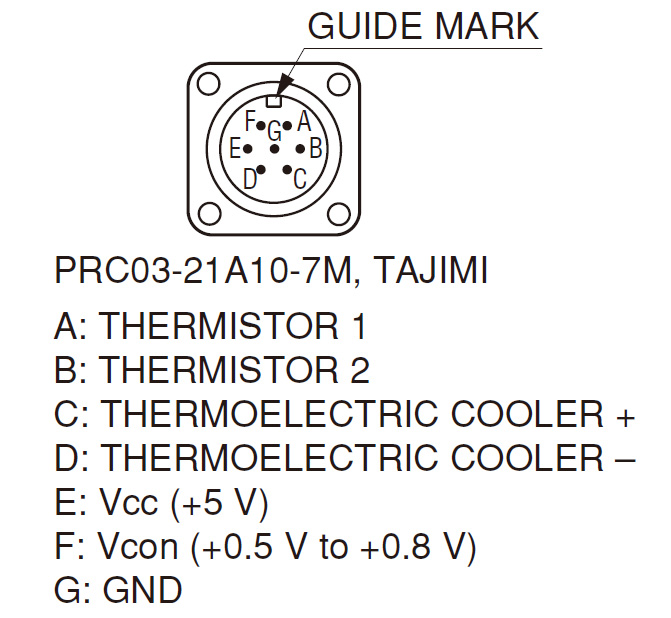

外形尺寸图（单位：mm）
剖面图
相关产品

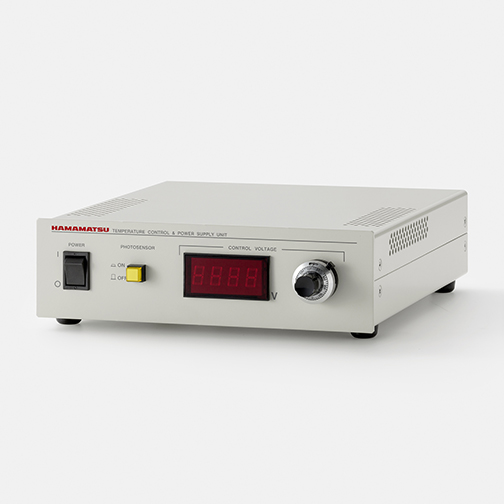

控制器 C16137 系列
C16137 系列是具有温度控制功能的台式电源装置。只需连接到 100 V 到 240 V 的交流电源，即可为 H15620 系列运行所需的热电冷却器和风扇生成输出电压。通过监测热敏电阻并调节热电冷却器的输出电流，可将光电倍增管温度维持在 -30 °C。控制电压可通过前面板上的刻度盘进行更改。
型号指南
C16137-C□
□ 中的数字表示电力电缆的规格
2：代表日本/代表北美 3：代表欧盟 4：代表中国 5：代表英国 6：代表澳大利亚
详细参数
| 参数 | C16137 系列 | 单位 |
|---|---|---|
| 设置冷却温度（出厂预设） | -30 | ℃ |
| 主电路输出电压 | +4.5 至 +5.5 | V |
| 主电路最大输出电流 | 100 | mA |
| 热电冷却器最大输出电压 | 10.6 | V |
| 热电冷却器最大输出电流 | 5 | A |
| 风扇输出电压 | +11.4 至 +12.6 | V |
| 控制电压（可变电压范围） | 0 至 +0.9 | V |
| 交流输入电压 | 100 至 240 | V |
| 输入电源频率 | 50/60 | Hz |
| 功耗 | 140 | V·A |
| 工作环境温度 | +5 至 +35 | ℃ |
| 储存温度 | -20 至 +50 | ℃ |
| 使用环境 | 室内使用时，使用海拔高达 2000 m | - |
| 重量 | 1870 | g |

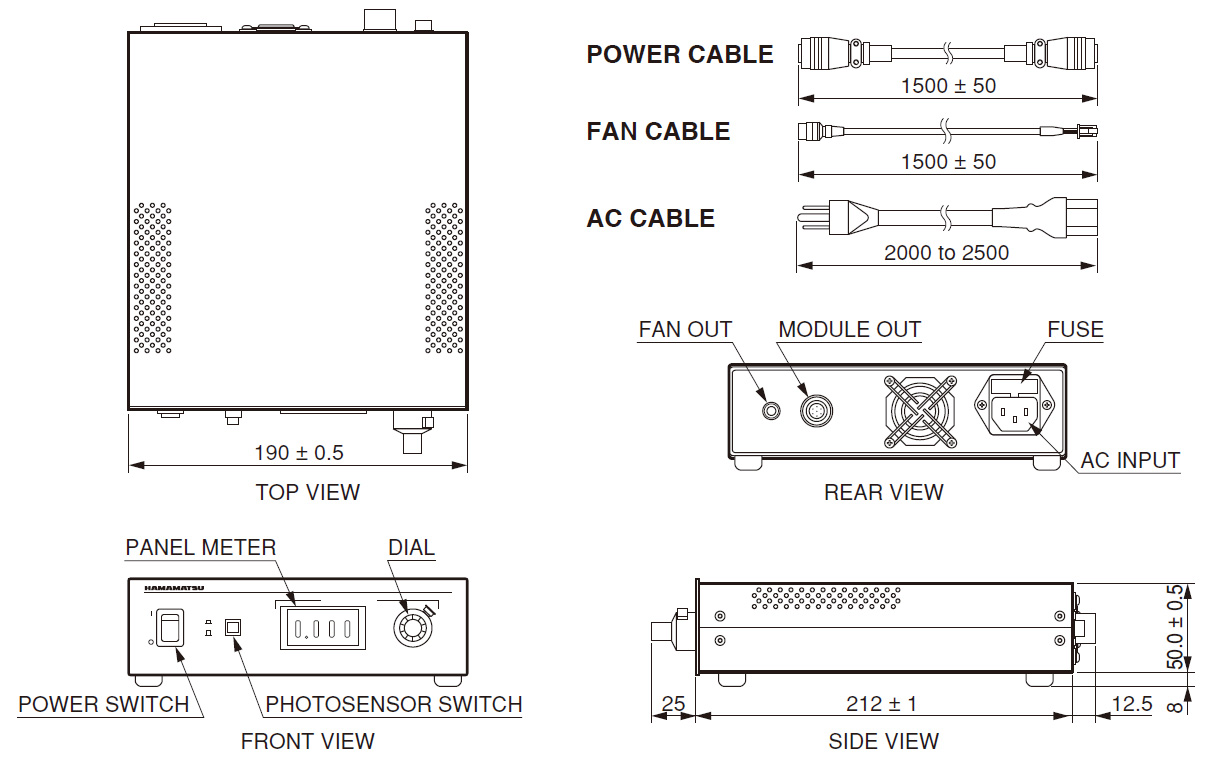

外形尺寸图（单位：mm）
