滨松中国参展2021慕尼黑上海光博会
3月17日-19日的2021慕尼黑上海光博会圆满落幕,滨松中国在此次展会中以“光,无处不在,无限可能”为主题,设置了七大展区:工业成像、激光加工、智能生活、分析与环境、核与辐射测量、高能物理、医疗与生命科学,涉及众多光子学技术应用及光电产品种类,同时开设了“滨松现场实验室”,首次全面介绍了滨松中国十年间建设起来的本地化服务体系。
工业成像,是此次最火的展区之一。在工业成像的展台中,滨松分别展出了“X射线成像检查”和“红外成像”应用中的诸多光电探测解决方案,针对不同的应用需求,介绍了丰富的产品类型。
安检CT、集装箱、小动物CT、食品检测、工业CT、电路板检测、电池检查、物品机。 这些应用领域,是目前X射线成像检查中,比较具备潜力的。针对这些应用,滨松可以提供PD/PD组合件/PDA、探测器模块及数采卡、微焦点射线源(MFX)、X射线线阵相机/TDI相机/Scmos相机、TDI芯片、I.I影像增强器等等产品。
红外光在光谱中覆盖了很大部分区域,它的穿透能力很强,相对于微波波段的光,也更容易被探测。滨松可为工业、科研应用提供从器件到系统的多类红外成像检查方案。 此次主要展示了可应用于色选的InGaAs线/面阵图像传感器,以及太阳能电池板检查、激光光斑成像、红外遥感中多类热门的InGaAs红外相机。
● 红外显微装置

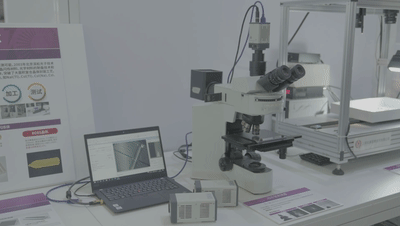

红外显微装置搭载了滨松经典的InGaAs相机机型C12741-03,显微镜下,大家可以清晰的检测出半导体芯片、太阳能电池板、矿石等样品的内部结构缺陷。
● 线阵红外相机
这台线阵红外相机内置了滨松最新的InGaAs线阵相机C15333-10E。展示了相机在SWIR成像中的应用。可快速、清晰地检测传送带上样品中的杂质。在太阳能电池板检查、色选等应用中,都是出色表现。
● 激光加工展区
在此次的慕尼黑上海光博会中,激光加工展区依然秉持着从“元器件到解决方案”的理念为一众客户提供产品和技术服务。
元器件方面我们展出了光纤激光器的核心器件CWLD和FAC。滨松CWLD的条宽是95um,能量密度比较大。FAC是快轴压缩透镜,可以使CWLD输出光的准直性更好,更加容易耦合进光纤里面去。在光源和激光器方面,我们的"王牌产品"DDL和SPOLD依然受到了广大客户的好评。DDL将来自高功率LD模块的聚焦激光束直接照射到目标上,具有体积小,功耗低等优点,并且可以根据客户需求产生高质量的平顶光,其可以广泛地应用于焊接,淬火,钎焊和退火等应用中。SPOLD的主要特点是平顶光输出以及自带温度监控模块。平顶光在做焊接的时候,可以对代加工点均匀的加热,保证焊接效果;温度监控可以监测加工质量,使加工过程可视化。
左:DDL 右:SPOLD
在该展区中,今年最值得一提的是,对于超快激光加工应用,滨松推出了空间光调制器+算法的一整套解决方案。滨松最新款的空间光调制器X15213/X15223系列产品,不仅在激光功率阈值上大幅度超过同类产品,还可以对超快激光进行精细且灵活的调制,比如纵向多焦点、并行加工等。除此之外,与前序产品相比,新品的体积缩小为原来产品的一半,而且针对各波长均有相应的介质镜设计。该系列新产品再搭配滨松产品技术工程师独到且专业的算法技术支持,确保每一个客户在使用中都有优质体验。

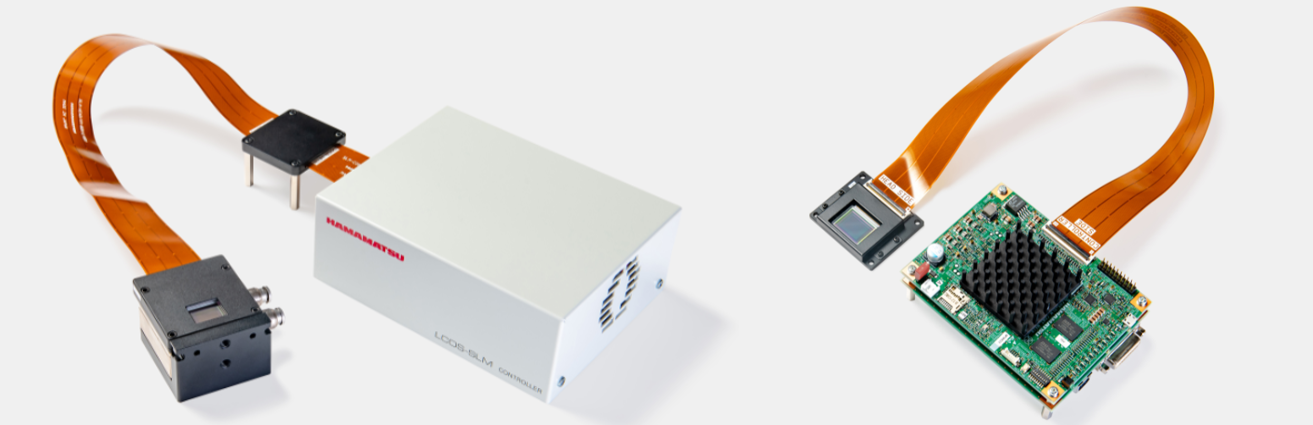

左:X15213 右:X15223
智能生活展区
智慧出行、400G+光通信、民用消费电子,是此次智能生活展区的主要展示内容。
如今,自动驾驶技术落地应用已逐步铺开。激光雷达(Lidar)系统对核心器件提出了进一步小型化、成本优化、性能综合化、专用化的要求。 滨松从器件逐步扩展至提供带有电子学系统的产品,即集成化、功能化的组件和模块。此次展出了新型的InGaAs PIN PD、MPPC、16ch InGaAs APD阵列、InGaAs APD+TIA、16ch InGaAs APD阵列+TIA阵列,以及第四代PLD和新一代激光器μHPL。
其中最具代表性的就是μHPL。μHPL是一种超紧凑的下一代激光器。其将激光器芯片、驱动电路高度集成至一个封装中,可触发1ns脉宽的高功率激光(max. 120 W)。通过视频展现的脉冲信号,就可以很直观地感受到,这个小小激光器的突出性能了。在未来的自动驾驶LiDAR应用中,被赋予了期待。
在智能汽车电子方面,从基础的自动大灯、自动雨刷、防眩目后视镜、方向盘角度传感、手势识别、自动空调,到车联网相关的MOST网络,以及具有未来感的抬头显示(HUD)。我们都可以提供相应的光电器件方案。
滨松公司为数据中心互联光模块及5G承载光模块,研发了一系列具有高一致性、可靠性的InGaAs PIN PD探测器,覆盖25G-400G中长距离(500m-10km)光模块需求。
关于民用消费电子,此次我们主要展示了针对光斑位置捕捉、光谱分析、光开关、指示照明、距离传感、环境光感知、火焰预警的产品方案。一系列小尺寸、高可靠、强抗电磁干扰、高性价比的滨松光电传感器,可通过这些应用,为我们日常生活带来更多便利。
分析与环境展区
清洁的空气、安全健康的饮食、绿色的居住环境,这些是我们日常生活中看得见摸得着的东西,而为了达成这些目标,我们需要对各种各样的物质进行分析监测,然后才是治理。这些监测和分析会用到光谱法、色谱法或者是质谱法。在此次分析与环境展区中,滨松中国主要以两款DEMO的动态演示向我们展示了在上述检测方法中我们的实际使用能力。
● MEMS-FPI

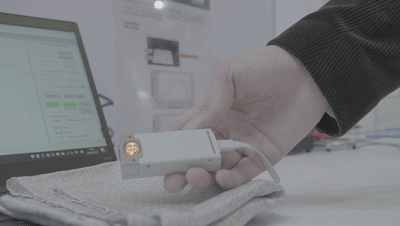

MEMS-FPI近红光谱探测模块。集成了卤钨灯、MEMS-FPI近红外光谱探头、控制电路,具备低电量消耗、小巧紧凑、快速检测、低成本化的特性,为光谱分析应用于便携式设备带来了新的可能。其拥有三个光谱波段可选:1.35 to 1.55 μm、1.55 to 1.85 μm、1.75 to 2.15 μm。
● MEMS-FTIR

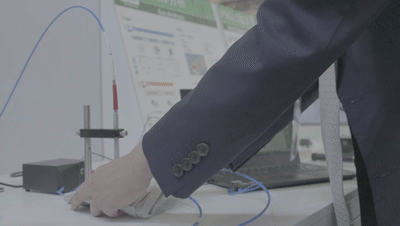

傅里叶红外光谱仪(FTIR)是红外光谱分析中一种重要的光谱仪类型,发展自20世纪70年代,属于第三代红外光谱仪技术。由于可以快速、准确的进行多组分的定量和定性分析,FTIR被看作是医药、食品、农业和化工等领域中实现质量控制的理想工具。
核与辐射测量展区

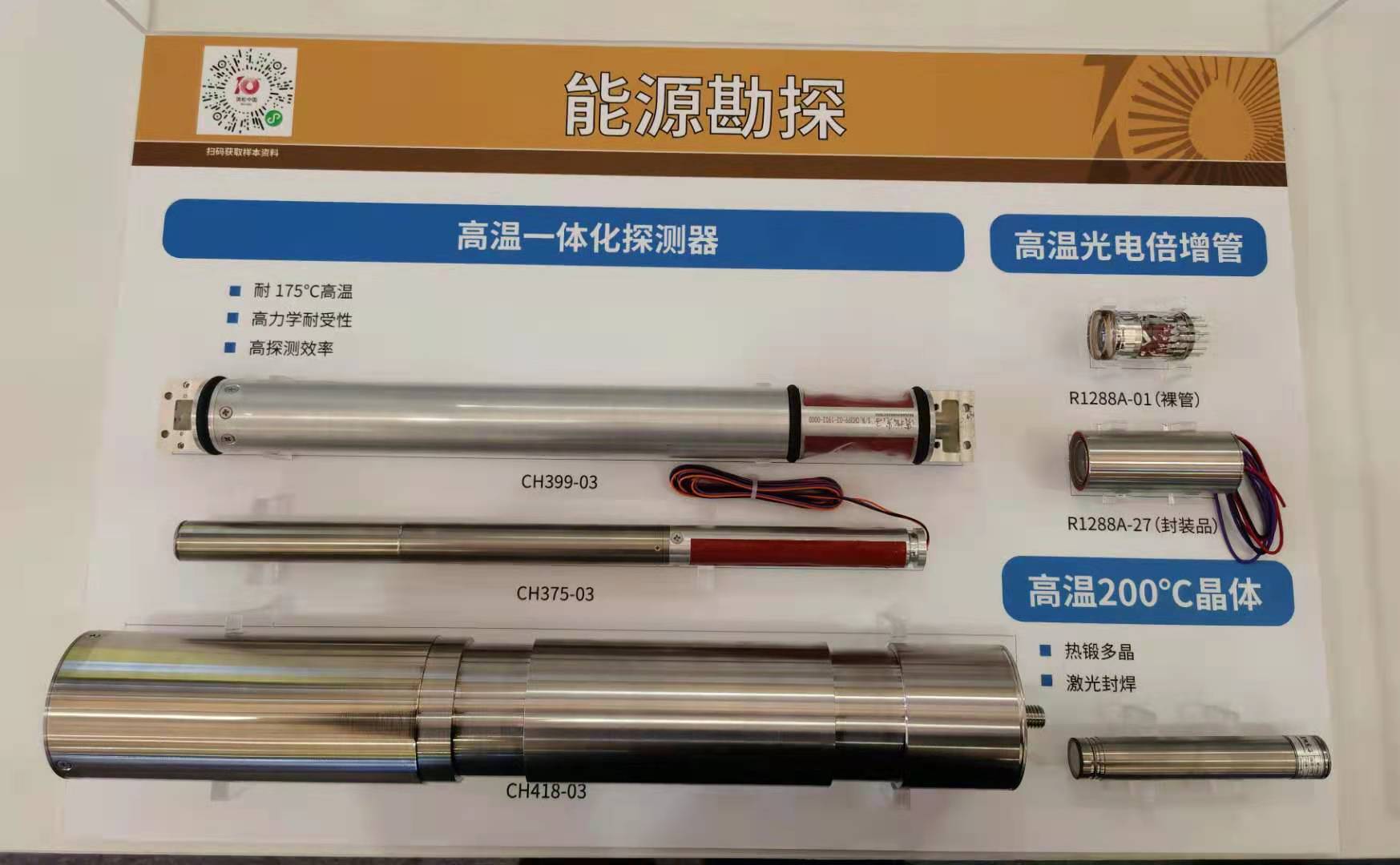

核与辐射测量展区主要包括三个主题:能源勘探、辐射环境安全、工业自动化。其中最受欢迎的要数能源勘探的展示。 在能源勘探的展示过程中,滨松中国连同北京滨松共同展出了高温一体化探测器,该产品解决了在石油测井过程中探测器需要经受高温、高振动以及高冲击性的问题。并且我们的产品性能可以说等同或者优于进口产品。
高温一体化探测器系列产品具有如下特点: 1、采用了微型分压及厚膜封装工艺,提高了产品温度性能和可靠性,使得产品可在175℃温度下稳定工作 ;2、采用热锻技术,大幅提升了NaI(TI)晶体的抗冷热冲击及抗机械振动性能 ;3、在封装方面采用钛合金外壳、蓝宝石玻璃材料等不同材料 最终实现了探测器一体化抗振,最高可达30g rms随机振动、1000g冲击的性能 ;4、具有完整的高温光电倍增管产品线,产品系列多种多样。
在辐射环境安全与工业自动化的展示中,滨松重点向客户说明了核辐射探测与我们日常生活的息息相关之处,比如医院放射科辐射剂量的监测,自来水厂以及疾病控制中心的水质放射性监测等,或者在工业应用中十分常见的钢铁液位监测,希望大家通过我们的介绍可以不再谈核色变,正确意识到只要防护得当,运用得当,核辐射这把双刃剑就可以为我们所用。
高能物理展区

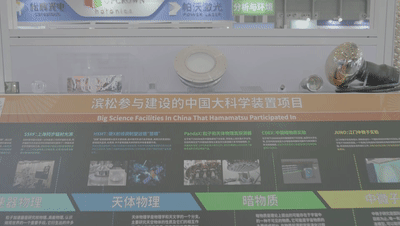

3月17日-19日的慕尼黑上海光博会期间,滨松首次呈现了“高能物理”方面的应用。基础科学是我们一直所关注的领域,大科学基础装置之于人类的发展意义深远。滨松的光电探测技术,曾三次助力诺贝尔物理学奖的诞生,为人类探索未知未涉贡献了一份力量。 展会中,我们回顾了滨松中国十年以来,所参与的中国大型基础科学研究项目,涉及中微子、暗物质、天体物理、加速器物理领域。一系列拥有极致性能的光电探测器,也少有的集体露面了。
医疗与生命科学展区
医疗与生命科学展区主打的概念是“关爱我们的健康”。本展区以身体的各个部位为例,以更加具象化的方式向大家介绍了滨松中国在脑部、口腔、乳腺等检查诊断中可以为大家提供的产品以及服务。
现阶段大众所熟知的新冠病毒检测的方法主要有三种:核酸检测、抗体检测以及CT影像诊断。在这三种检测方法中,滨松中国均可以提供仪器设备所需要的光电倍增管、硅光电二极管、高灵敏度相机等核心器件,以及为了更好地满足客户的需求,我们还可以提供定制化的服务。
血液分析、细菌分析、免疫分析、生化分析、基础生命科学、尿液分析等均是滨松中国在检验医学中重点关注的应用领域。在上述领域中我们不仅可以为半自动化学发光免疫分析仪、时间分辨免疫分析仪、三分类血球仪、血凝仪、流式细胞仪等仪器设备提供核心元器件,还可以结合我们产品多年临床使用经验为客户的选型使用提供更加实用的方案建议。
滨松中国现场实验室
2021年,是滨松中国成立10周年,10年中我们逐渐建立,并不断完善着本土化服务体系。除了保证快速的响应、更加全面的技术支持外,希望更多地提供超越产品本身的服务。我们已经在北京、上海、廊坊等地建立了一系列自有实验室,并且与浙江大学、湖北工业大学等多所高校与科研究机构建立起了联合实验室,希望与众多合作者一起,探寻光电技术更广阔的应用空间。

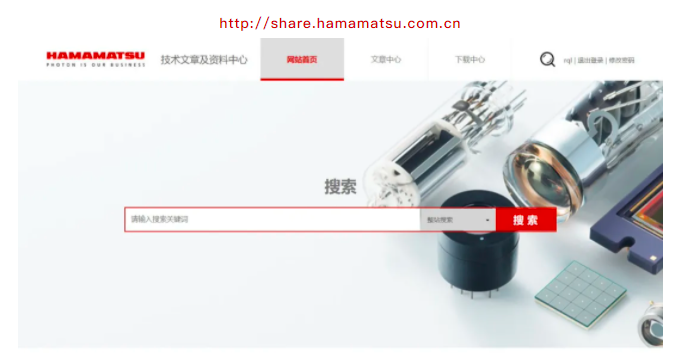

滨松中国通过建立全中文技术文章及资料网站“SHARE”、开展线上技术问答活动、发布技术解答视频等丰富的形式,将我们掌握的知识、应用方法和经验、注意事项、测量数据进行分享。同时,也希望通过这些平台,与客户一起互动、讨论。更加充分地支持每一位客户的产品开发、学术研究。
2021慕尼黑上海光博会虽然结束了,但是滨松中国对于光的探索,对于光子事业的坚持是永远不会止步的,希望我们精心准备的内容可以为大家带来实用的信息与价值。并且在未来的“追光”路上继续与各位携手前行。
