快速读出，最快 100 klines/s

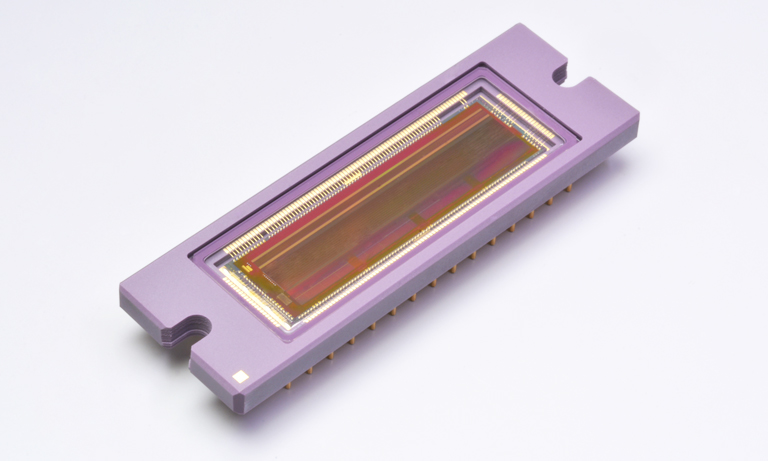

用于工业相机的 CMOS 线阵图像传感器 S13774
S13774 是专为需要高速扫描的工业相机而开发的 CMOS 线阵图像传感器。列-行读出系统针对每个像素配有读出放大器和 AD 转换器，允许快速读出。对于 AD 转换器分辨率，可以选择 10 位（高速模式：最大 100 klines/s）或 12 位（低速模式：最大 25 klines/s）。图像数据以 180 MHz LVDS 格式串行输出。
详细参数
| 详细参数 | 单位 | |
|---|---|---|
| 像素总数 | 4096 | 像素 |
| 像素尺寸 (H × V) | 7 × 7 | μm |
| 影像尺寸 | 28.672 | mm |
| 灵敏度波长范围 | 400 ～ 1000 | nm |
| 最大行速率 （高速模式） |
100 | kline/s |
