含激发光源和探测器的紧凑型荧光检测模块

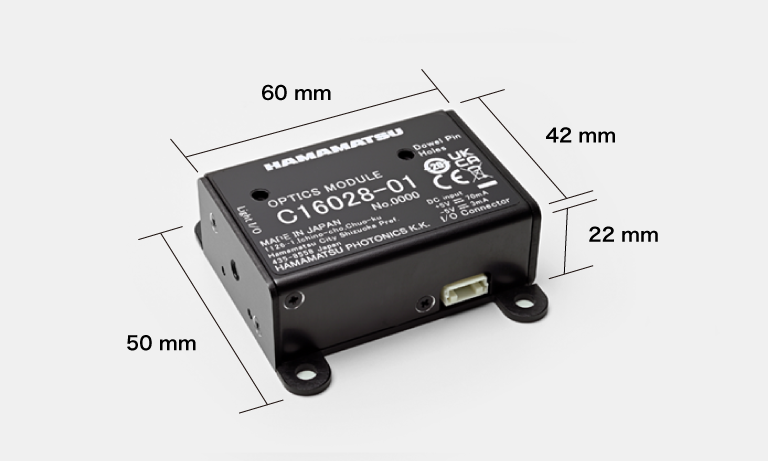

光模 C16028-01
光模 C16028-01 是一款专用于荧光检测用途（如 PCR 仪器）的可集成光模。它包括激发荧光试剂用高稳定性 LED、荧光检测用高灵敏度硅光电二极管以及荧光检测优化用光学系统和电路。
集成两套独立光学系统，以使用一款模块测量两种荧光试剂（FAM、ROX）。它还配备了可独立控制每个 LED 开/关的触发输入。
它兼具小型化和高性能，不仅可以集成到 PCR 设备中，还可以集成到需要荧光检测的其他仪器和设备中。这缩短了复杂光学系统的设计工作，并实现荧光检测功能的有效安装。

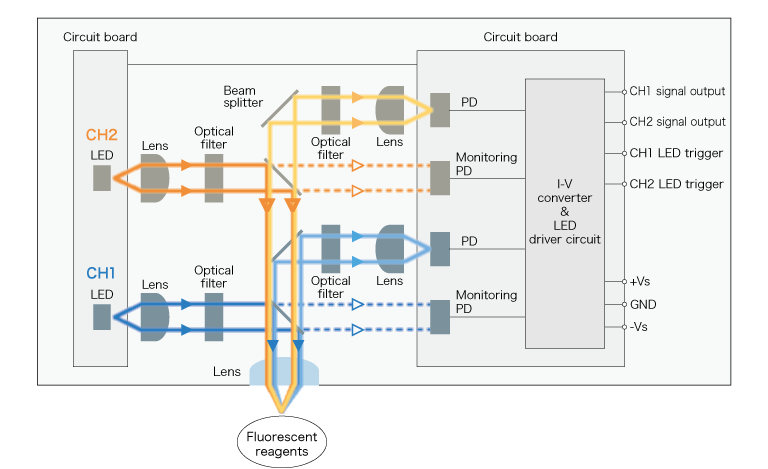

结构
C16028-01 包括两组 LED、硅光电二极管、光学系统和电路。它通过将激发光和荧光集成到同一光学系统中来实现小型化。此外，它还支持通过依时划分 CH1 和 CH2 的发光和接收时间同时检测两种荧光试剂。
特点
能够进行高灵敏度荧光检测
它可以检测亚纳米级微弱光。所用光学设计能够有效地将荧光带入受光面，且不易受到杂散光干涉。此外，采用抑制噪声的电路。

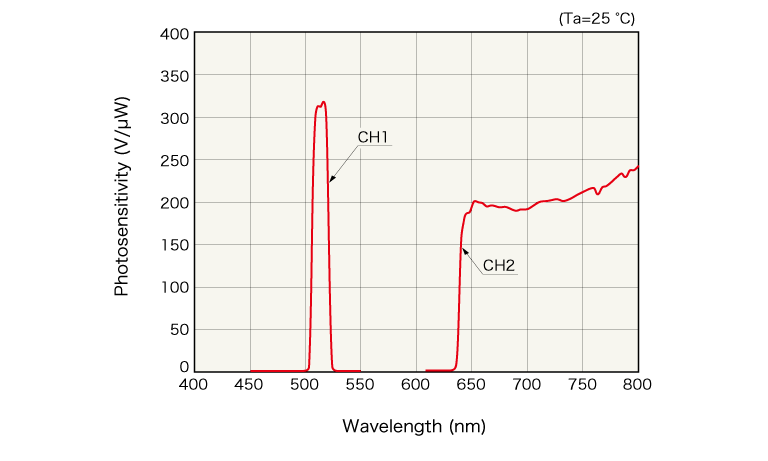

图 1：光谱灵敏度特性（代表性例子）
稳定激发光源
包括波长为 470 nm 和 590 nm 的内置激发 LED。
此外，它还配备了 APC（自动功率控制）功能，以控制要持续固定的输出光量。

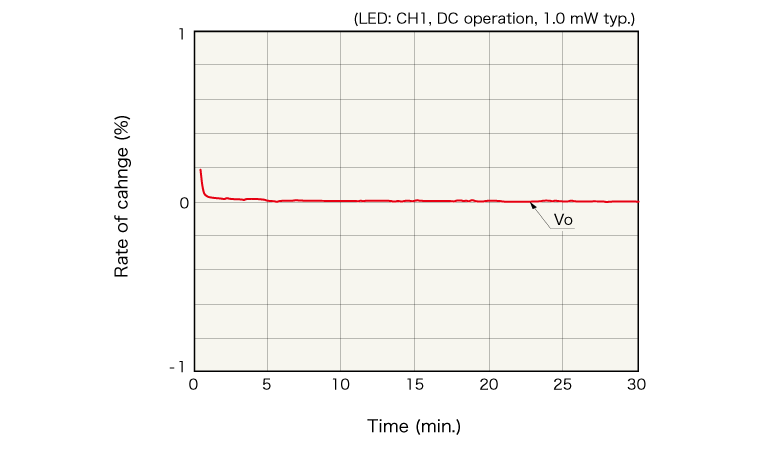

图 2：LED 强度的稳定性（代表性例子）
测量带滨松光电二极管模块的 LED 输出误差
