X 射线 TDI-CMOS 相机
C17300 系列
该 X 射线 TDI-CMOS 相机旨在实现高精度的在线 X 射线内部检测。通过采用 CMOS 面阵传感器，并对多行传感器的输出信号进行叠加或平均处理，该相机能够以高灵敏度和高分辨率捕捉快速移动的物体。
此外，由于该相机即使在低剂量 X 射线条件下也能保持较高的信噪比 (S/N)，因此与传统机型相比，它既能获取清晰、高质量的图像，又能最大限度地减少对被检物体的损伤。

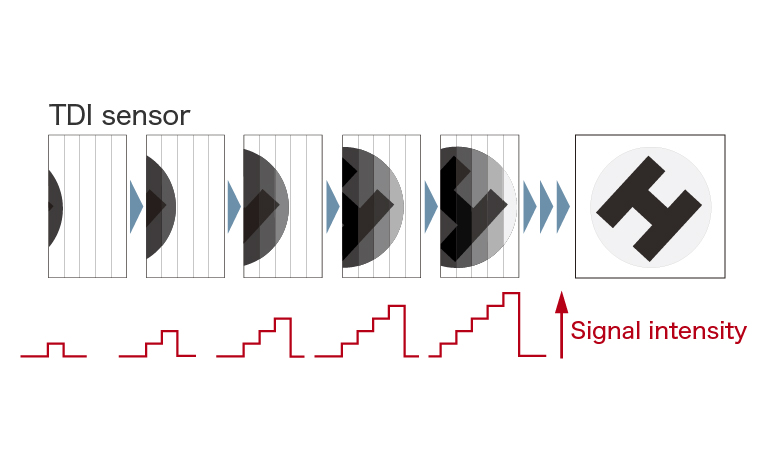

TDI-CMOS 技术
TDI 是一种可在大面积范围内实现高速、高分辨率和高灵敏度扫描的技术。
TDI*-CMOS 技术采用 CMOS 面阵传感器，通过对多行传感器的输出信号进行叠加/平均处理，从而捕捉移动物体的图像。通过将传感器每一行的数据采集时序与待成像物体投射到传感器表面时的移动同步，该传感器即可进行与其垂直步数相等的曝光。这使得该传感器能够以比传统线性传感器更高的速度和更高的灵敏度对移动物体进行成像。
*时间延迟积分的简称。

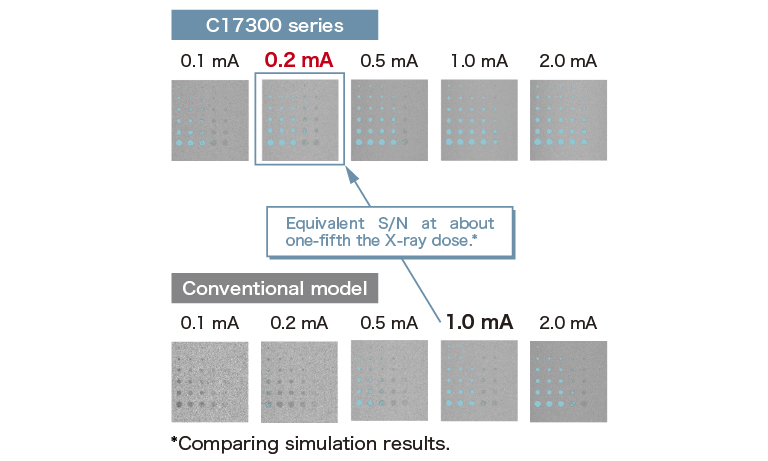

信噪比比较

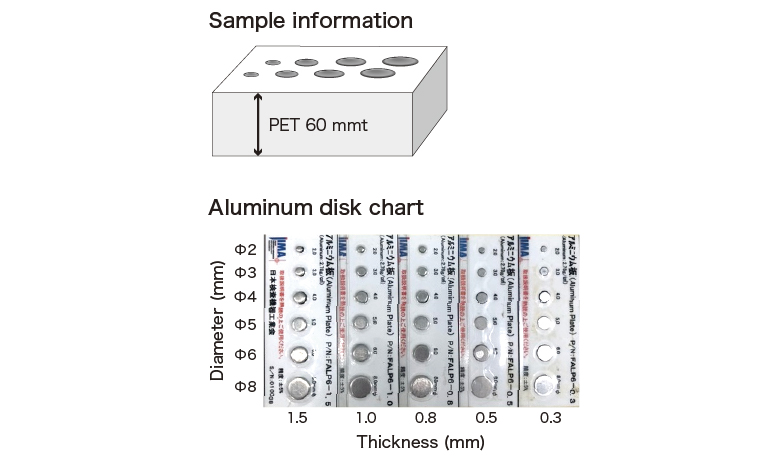

测试条件
输送机速度：20 米/分钟
管电压：60 kV
管电流：0.1 mA 至 2.0 mA
图像质量比较

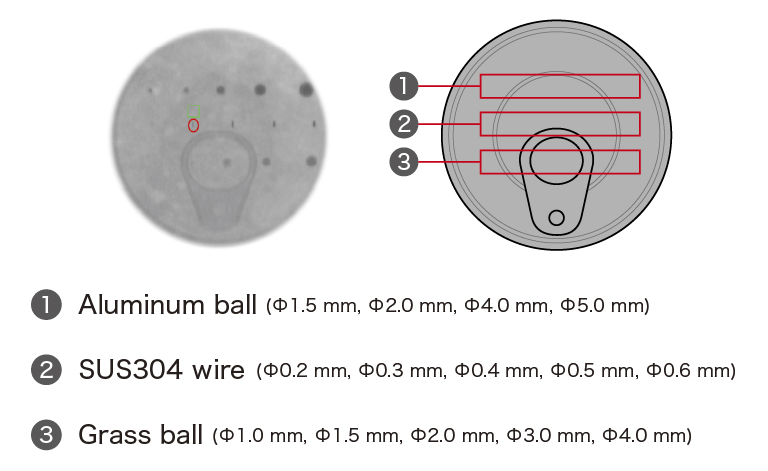

图像示例（金枪鱼罐头）

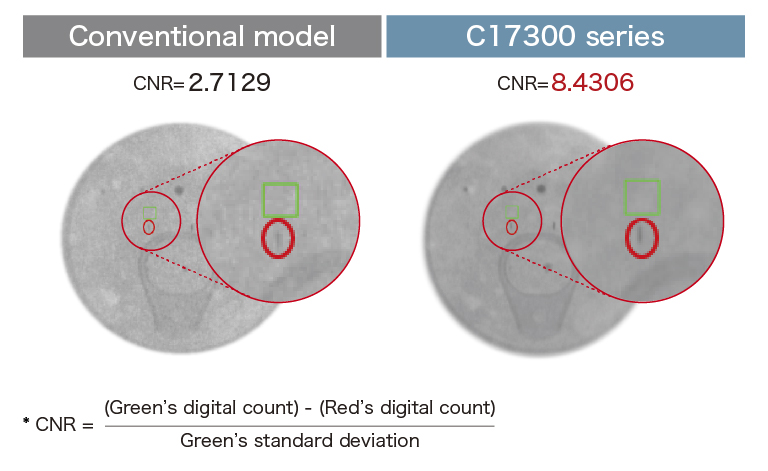

SUS304 线材 (Φ0.3 mm) 实际图像中 CNR* 比较
图像示例

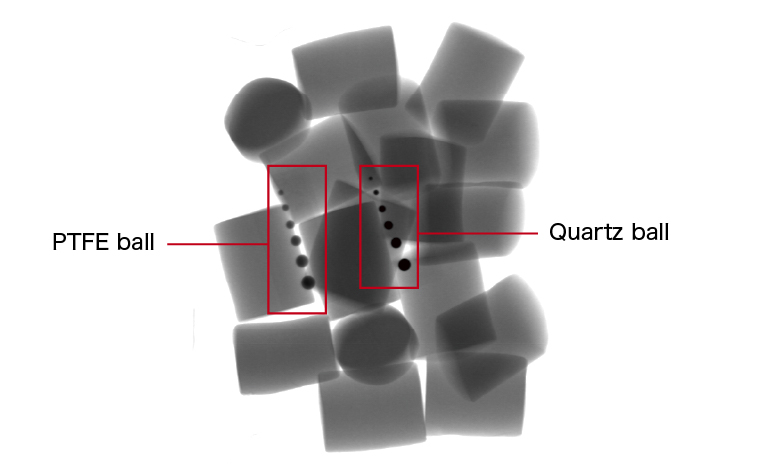

棉花糖（盒装）
测试条件
输送机速度：40 m/min
管电压：50 kV
管电流：2 mA
异物
石英球（直径）
2.0 mm、3.0 mm、4.0 mm、5.0 mm、6.0 mm、7.0 mm
聚四氟乙烯球（直径）
3.2 mm、4.0 mm、5.0 mm、6.0 mm、7.2 mm、8.0 mm

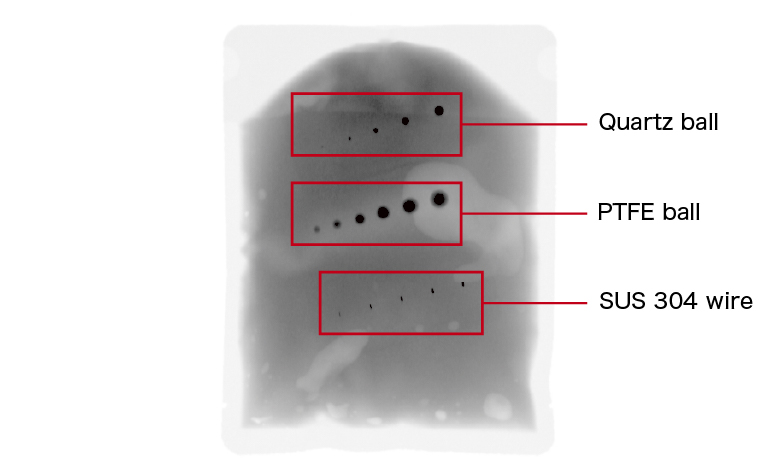

意面酱（袋装）
测试条件
输送机速度：40 m/min
管电压：50 kV
管电流：2 mA
异物
石英球（直径）
1.0 mm、1.5 mm、2.0 mm、3.0 mm、4.0 mm
聚四氟乙烯球（直径）
3.2 mm、4.0 mm、5.0 mm、6.0 mm、7.2 mm、8.0 mm
SUS 304 线材（直径）
0.2 mm、0.3 mm、0.4 mm、0.5 mm、0.6 mm

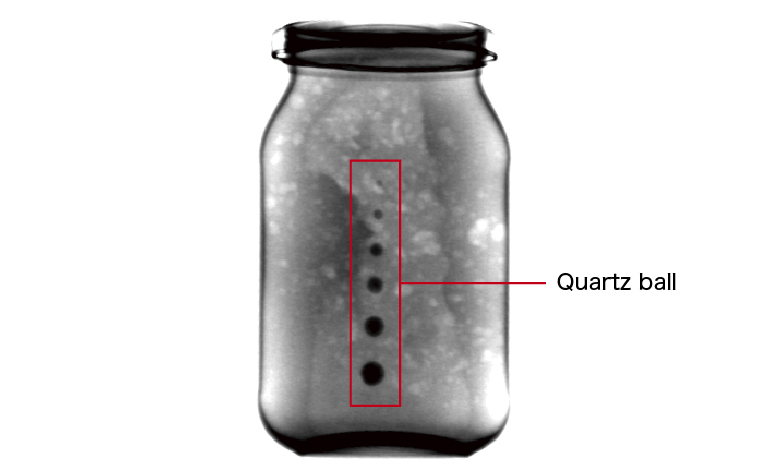

番茄酱（瓶装）
测试条件
输送机速度：40 m/min
管电压：120 kV
管电流：2.5 mA
异物
石英球（直径）
2.0 mm、3.0 mm、4.0 mm、5.0 mm、6.0 mm、7.0 mm

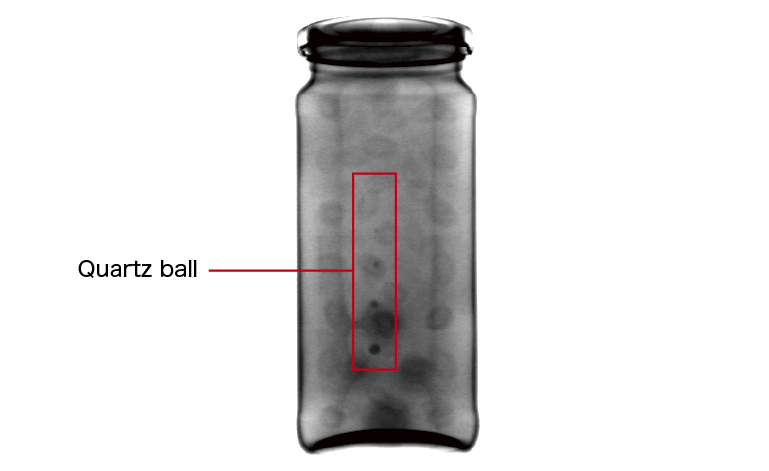

橄榄（瓶装）
测试条件
输送机速度：40 m/min
管电压：120 kV
管电流：2.5 mA
异物
石英球（直径）
1.0 mm、1.5 mm、2.0 mm、3.0 mm、4.0 mm

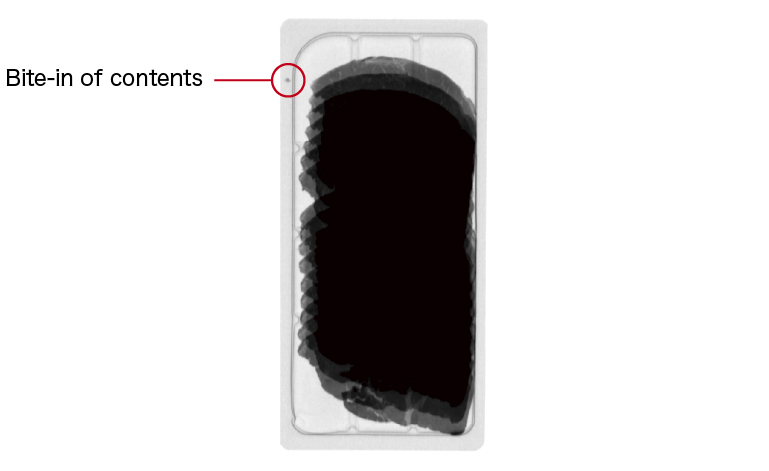

风干火腿（包装）
测试条件
输送机速度：40 m/min
管电压：30 kV
管电流：3 mA
内容物嵌入密封部位

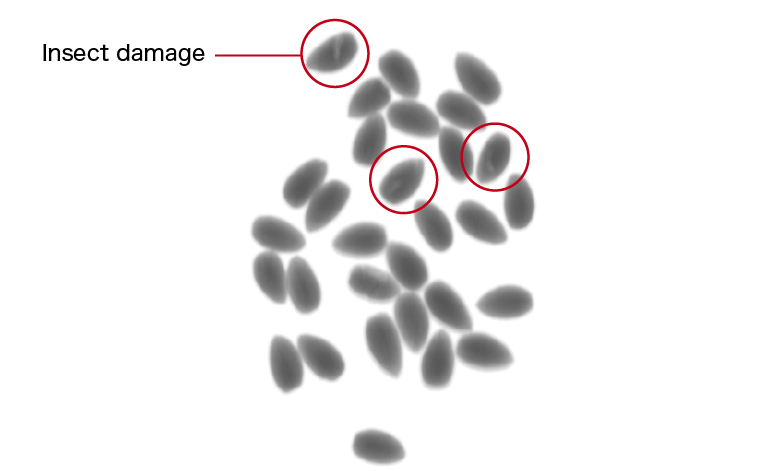

杏仁（散装）
测试条件
输送机速度：100 m/min
管电压：50 kV
管电流：6 mA
虫害
详细参数
| 类型编号 | C17300-30UP | C17300-40UP | C17300-60UP |
|---|---|---|---|
| 像素间距 | 0.4 mm | ||
| 像素数 | 768 (H) × 8 (V) | 1024（水平） × 8（垂直） | 1536（水平） × 8（垂直） |
| 检测宽度 | 307.5 mm | 410 mm | 615 mm |
| 线速 | 4.0 m/min 至 200 m/min（0.167 kHz 至 8.333 kHz） | ||
| 有效的 X 射线管电压范围 | 10 kV 至 160 kV | ||
| 闪烁体 | Gd-闪烁体 | ||
| 数字输出 | 14 位 | ||
| 接口 | USB 3.0 | ||
| 电源 | 直流 +24 V | ||
| 操作环境温度 | 0 ̊C 至 +40 ̊C | ||
| 操作环境湿度 | 30% 至 80%（无雾气现象） | ||
| 存储环境温度 | -10 ̊C 至 +50 ̊C | ||
| 存储环境湿度 | 低于 90%（无雾气现象） | ||

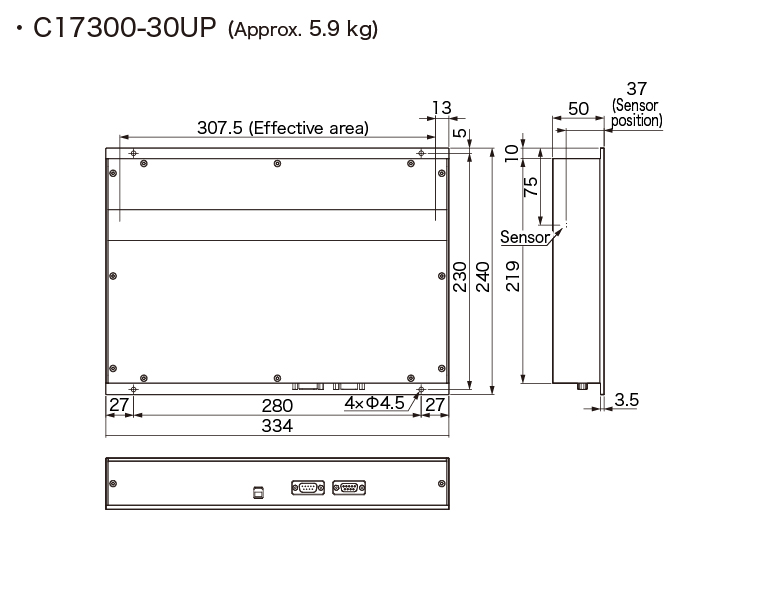

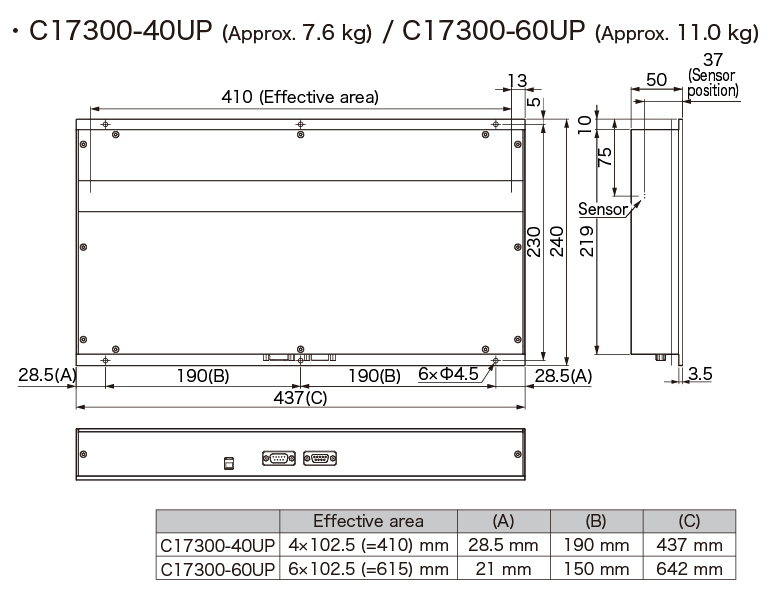

尺寸（单位：mm）
