MoxiePlex多光谱成像系统
C16919-01
MoxiePlex®多光谱成像系统可捕获到使用多种荧光染料染色的整个组织样品的高分辨率图像。这些图像在评估和可视化生物标志物定位和表达水平方面发挥着关键作用，让研究人员能够进行全面的分析。
MoxiePlex是滨松光子学株式会社（中国、欧盟、日本、瑞士、英国）的注册商标。
获取多达9个通道的高分辨率图像
MoxiePlex旨在通过在整个组织切片上提供多达9个通道加速多重免疫荧光研究。
它具有16位输出，可提供图像分析所需的高分辨率成像。此外，该系统还配备了前沿相机，在400 nm至900 nm的波长范围内具有高量子效率，从而可以更广泛地选择荧光试剂并加强生物标志物检测。

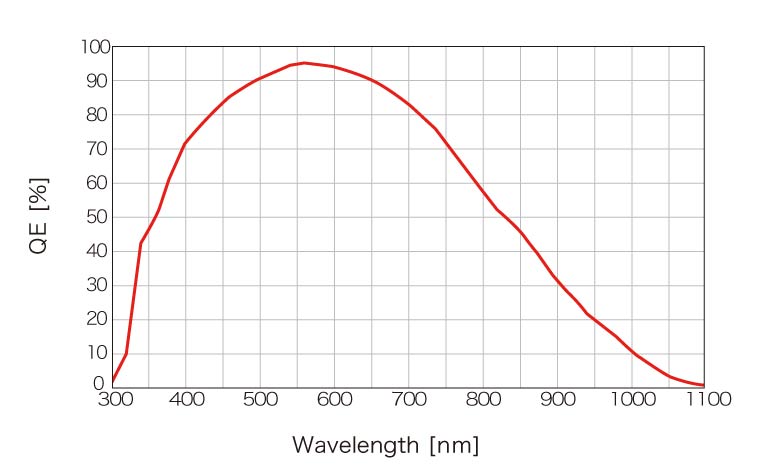

光谱灵敏度
成像示例

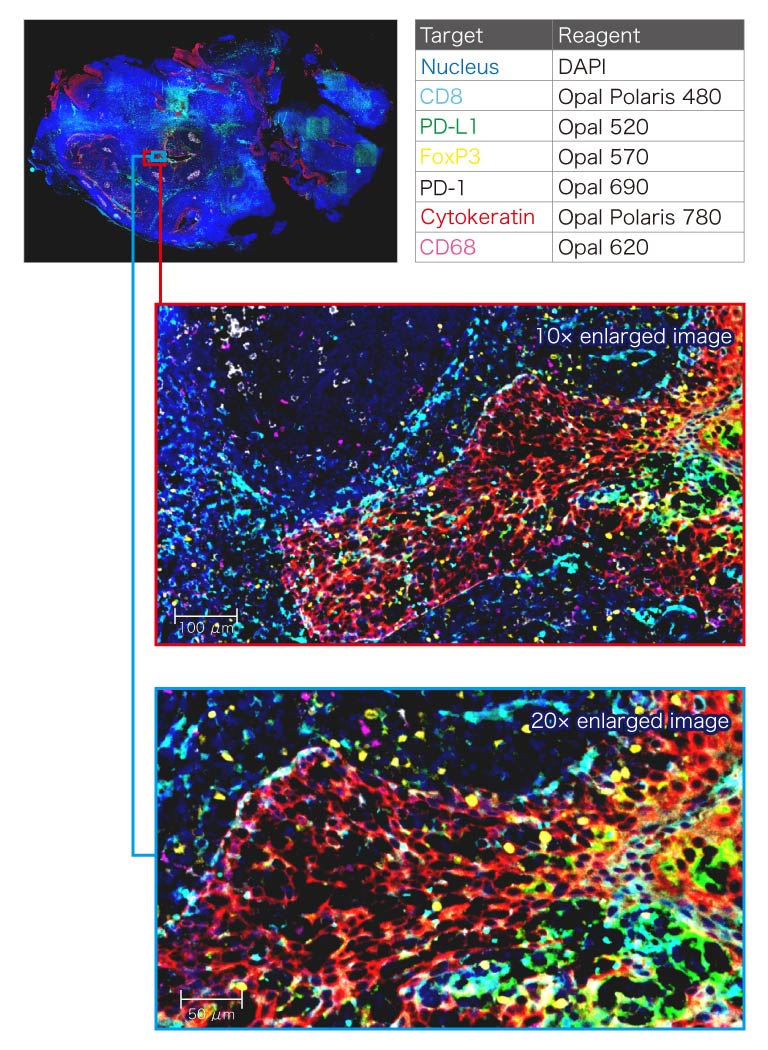

Akoya Biosciences社MOTiF PD-1/PD-L1 Panel 7plex套件

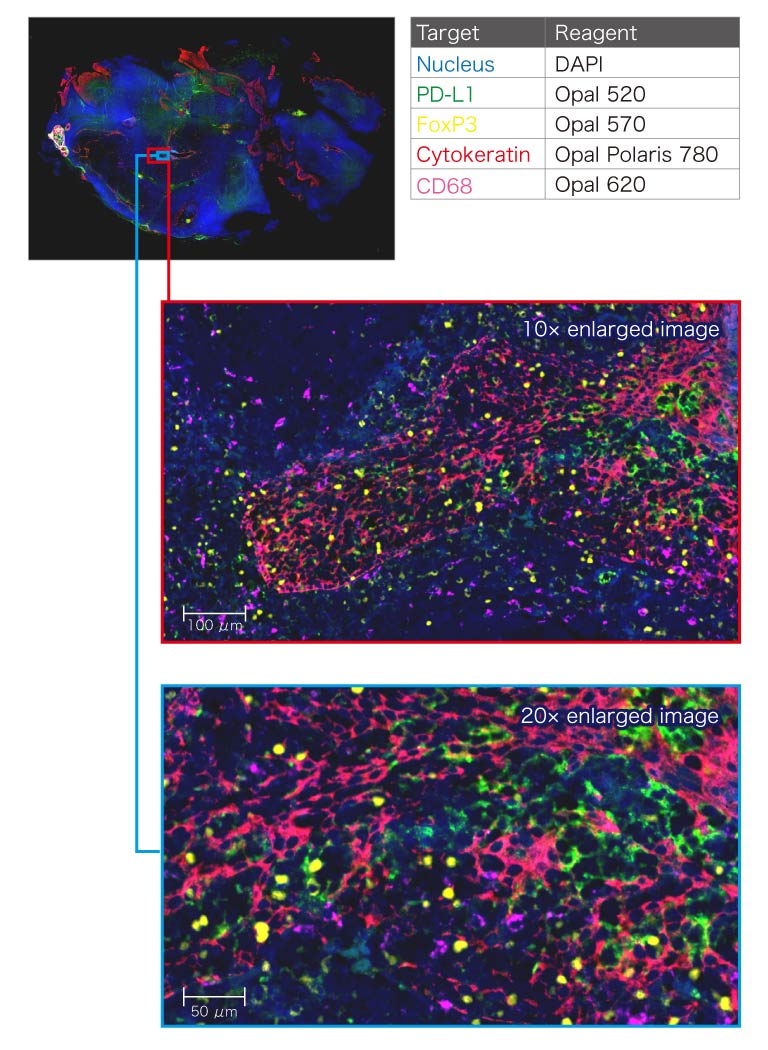

Akoya Biosciences社MOTiF PD-1/PD-L1 Panel 5plex套件
Cell Signaling Technology SignalStar® Multiplex IHC套件
DAPI (蓝色)和单个目标 (白色)的叠加图像
兼容BF
MoxiePlex可在Moxie软件内无缝叠加明场和荧光图像。它可捕获 H&E 染色、免疫组织化学 (IHC)染色及特殊染色的样品的高分辨率图像，提供组织形态的全面视图，以进行深入观察和分析。

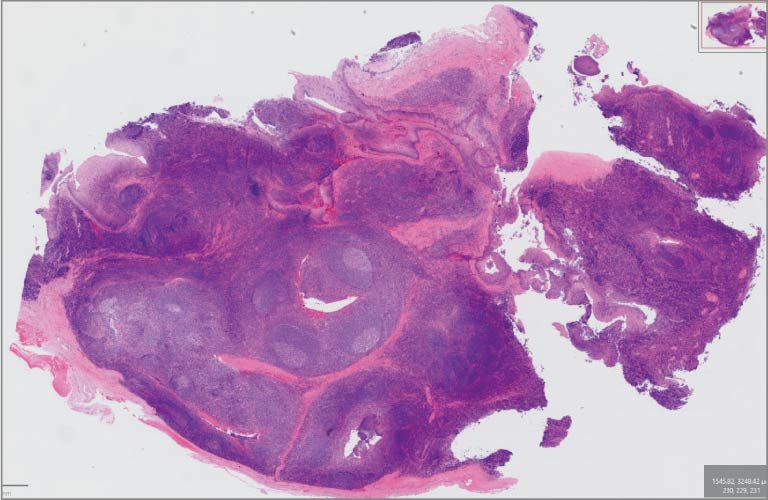

H&E

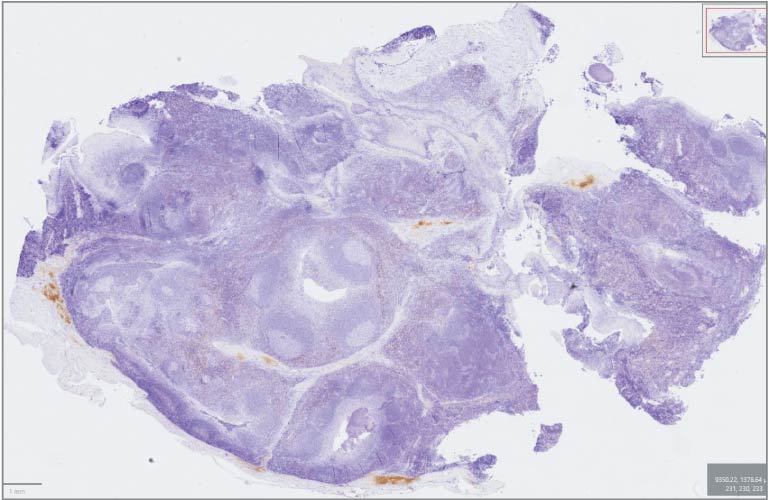

IHC
自动样品识别与曝光时间计算
MoxiePlex以专有的荧光光学技术和算法自动进行样品识别、扫描范围设置、焦点位置设置及曝光时间计算。 用户可以选择全自动操作，以尽量减少人工工作量，或选择手动调整，以获得更大的灵活性和控制力。

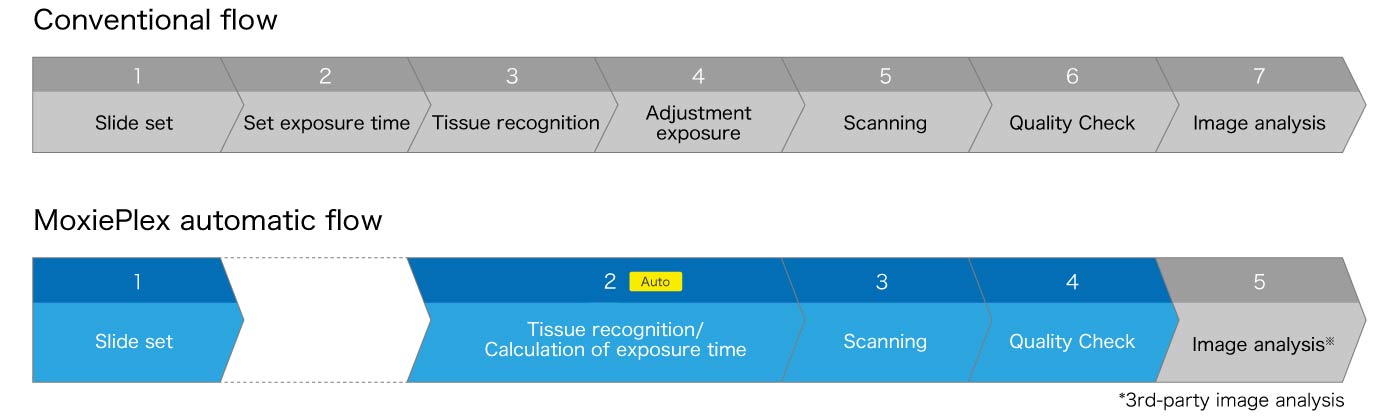

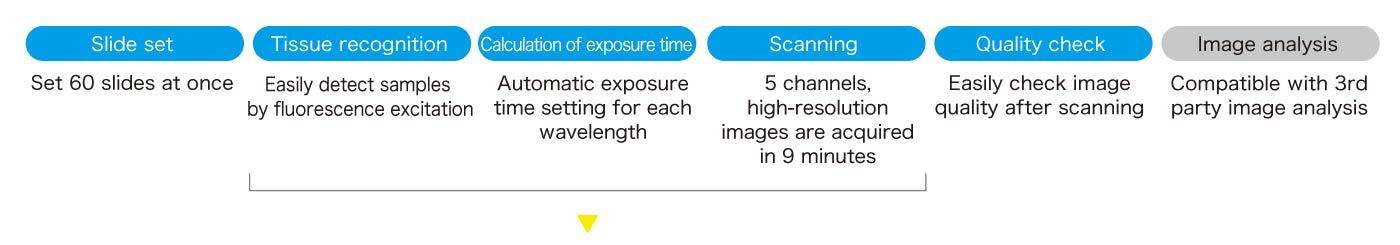

各流程的特点

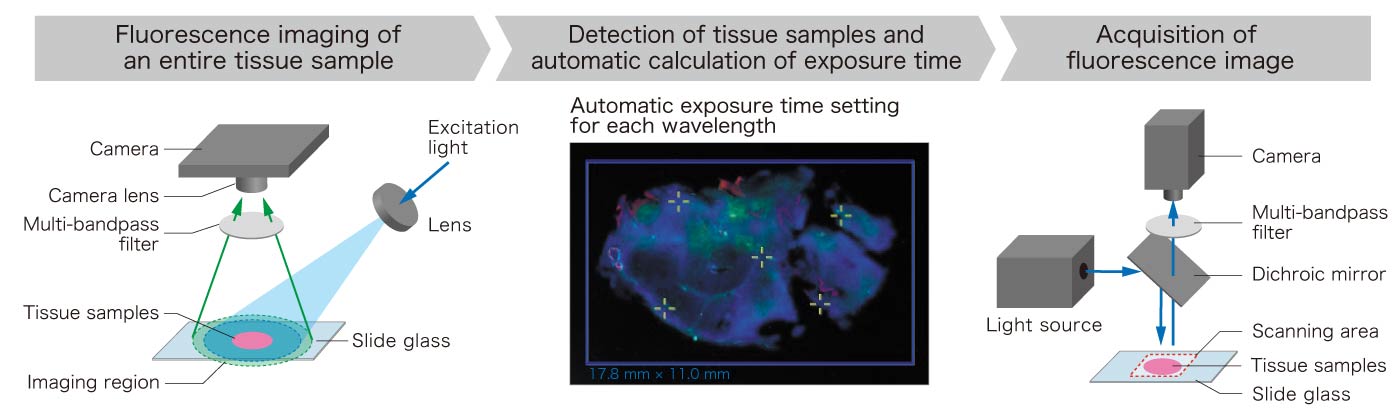

自动识别整个组织样品并自动计算曝光时间，以获取荧光图像
MoxiePlex通过自动检测明场成像中难以识别的组织样品来增强免疫荧光成像。它智能地设置扫描配置文件，并优化曝光时间，以实现精准的荧光图像采集，进而确保无缝的工作流程和高精度。(专利申请中)
详细参数
| 产品名称 | MoxiePlex多光谱成像系统 | |
|---|---|---|
| 产品编号 | C16919-01 | |
| 暗盒装载器 | 多达60张玻片 | |
| 兼容的载玻片 | 75.0 mm至76.0 mm × 25.0 mm至26.0 mm (厚度：0.9 mm至1.2 mm) |
|
| 物镜 | 20× NA 0.8 |
|
| 扫描分辨率 | 20x模式 | 0.46 μm/像素 |
| 40x模式 | 0.23 μm/像素 | |
| 明场扫描速度 | 20x模式 | 约60秒 (15 mm × 15 mm) |
| 40x模式 | 约70秒 (15 mm × 15 mm) | |
| 荧光通量 *1 | 20x模式 | 约12分钟 (15 mm × 15 mm，5通道) |
| 40x模式 | 约14分钟 (15 mm × 15 mm，5通道) | |
| 荧光相机 | 内部sCMOS相机 | |
| Z-stack功能 | 包括 | |
| 图像格式 | OME-TIFF (16位、8位)、NDPI (8位) | |
| 电源 | AC100 V至交流240 V | |
| 用电功耗 | 约180 VA | |
*1 荧光通量：从装载载玻片、微距摄影、预聚焦5点、扫描、图像处理到卸载载玻片的时间。

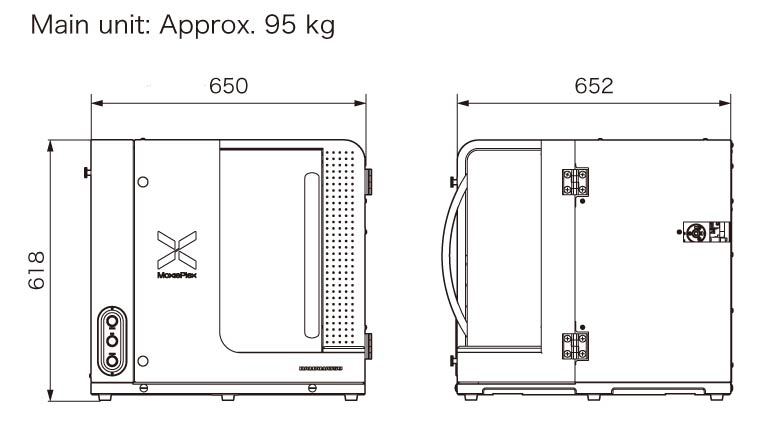

尺寸
