已校准光源单元
L7810-03 是一款经过校准的灯光源,可提供极高水平的稳定性和可再现性。它提供方便的套件,包括氙气灯、灯罩和电源,便于操作,并具有稳定的光输出和高可再现性。它具有从 200 nm 至 800 nm 的宽光谱分布发光范围,并随附带 JCSS(日本计量法校正事业者登录制度)标识的校准证书。
(按订单生产)

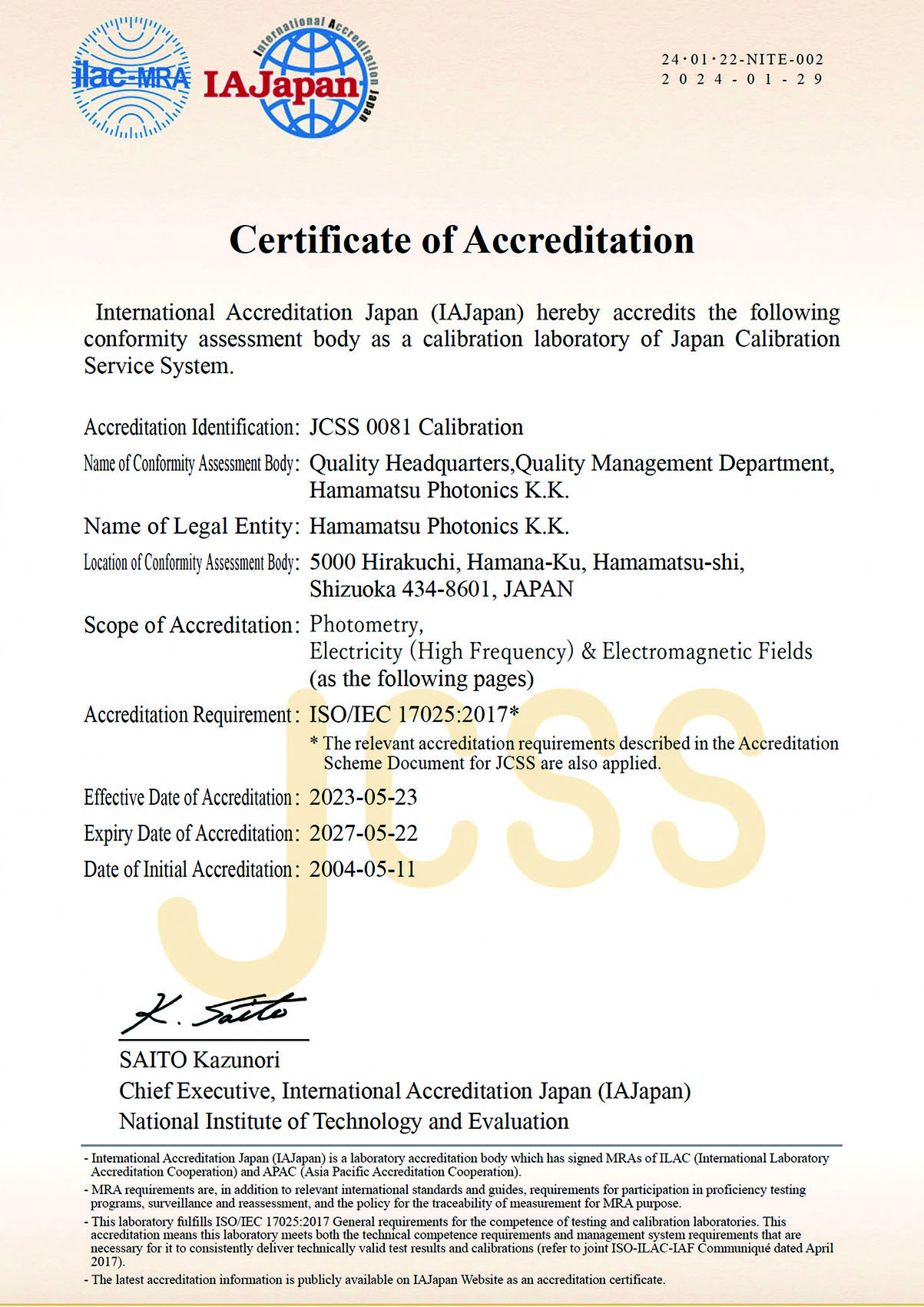

滨松集团品质总部品质管理部于 1999 年 5 月 21 日被认定为“光”领域的校准公司,并于 2009 年 8 月 4 日根据修订法律注册成立为公司。滨松有权颁发带有 JCSS 标志(JCSS 认证符号)的校准证书。这些校准证书确保了对国家计量标准的可追溯性,例如可以用作 ISO9000 系列的可追溯性证书。
参数 | 说明/值 | 单位 | ||
---|---|---|---|---|
安装的光源 | 150 W 氙气灯 | - | ||
聚焦镜头 | 材料 | 合成石英玻璃 | - | |
尺寸 | φ28 | mm | ||
光谱分布 | 185 至 2000 | nm | ||
校准类型 | 光谱辐射照度 (μW・cm-2・nm-1) (*1) | - | ||
校准波长范围 | 200 nm 至 800 nm(10 nm 间隔) | - | ||
重新校准间隔 (*2) | 100 小时运行 | - | ||
光输出稳定性 | 偏差 | 典型值 | ±0.5 | %/h |
波动 (p-p) | 最大值 | 1.0 | % | |
保证光源寿命 (*3) | 500 | h | ||
输入电压 (AC) | 100 V 至 240 V,单相 50 Hz / 60 Hz | - | ||
预热时间 | 最小 | 10 | min | |
用电功耗 | 最大值 | 220 | VA | |
冷却方法 | 以风扇强制风冷 | - | ||
工作温度范围 | 0 ℃ 到 +40 ℃ | - | ||
工作温度范围 | 校准期间 | +21℃ 至 +25℃ | - | |
存储温度范围 | -10℃ 至 +65℃(无冻结) | - | ||
操作湿度范围 | 20% 至 70%(无冷凝) | - | ||
存储湿度范围 | 低于 85%(无冷凝) | - | ||
适用标准 | EMC 标准 | IEC 61326-1 发射限值:CISPR 11 1 组 A 类 抗干扰要求:表 2 |
- | |
安全标准 | IEC 62471 风险组 3 | |||
IEC 61010-1/A1 |
*1:光谱辐射照度是在距灯罩参考平面 500 mm 处测量的。
*2:这是重新校准以保持校准可靠性的一般指南。请联系我们的销售处了解重新校准费。
*3:这是光源可以重新校准以用作校准光源的总时间。
针数 | 信号 | |
---|---|---|
1 | 自动启动设置 |
输入 |
2 | 辐射照度控制信号(光源打开) | 输入 |
3 | 辐射照度控制信号(光源关闭) | 输入 |
4 | 过热信号 | 输出 |
5 | 辐照信号 | 输出 |
6 | 联锁信号 | 输出 |
7 | 联锁信号 | ー |
8 | 辅助电源 (+24 V) | 输出 |
9 | 接地 | ー |
10 | 接地 | ー |
11 | 无连接 | ー |
12 | 无连接 | ー |
13 | 无连接 | ー |
14 | 无连接 | ー |
15 | 无连接 | ー |
