软 X 射线源
L11754-01
借助 L11754-01W 发射的软 X 射线 (15 kV)，可以检查目前难以检测到的光元素异物和杂质。它采用紧凑轻便的设计，具有宽光束角，便于在紧凑的检查设备中安装和使用。可使用塑料板屏蔽而非铅屏蔽，这有助于降低屏蔽成本。
*-01 为日本国内销售型号，后缀为 -01W 的产品为其他国家/地区销售的型号。

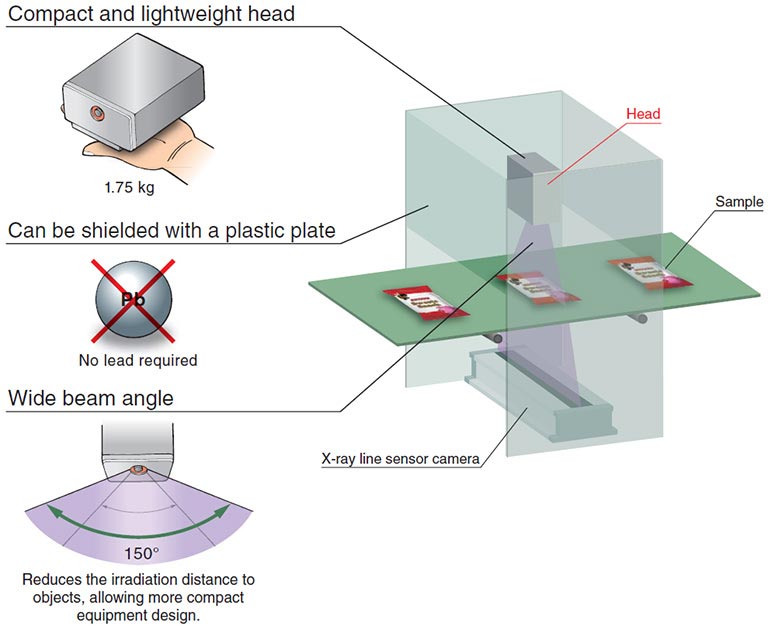

特点
用途

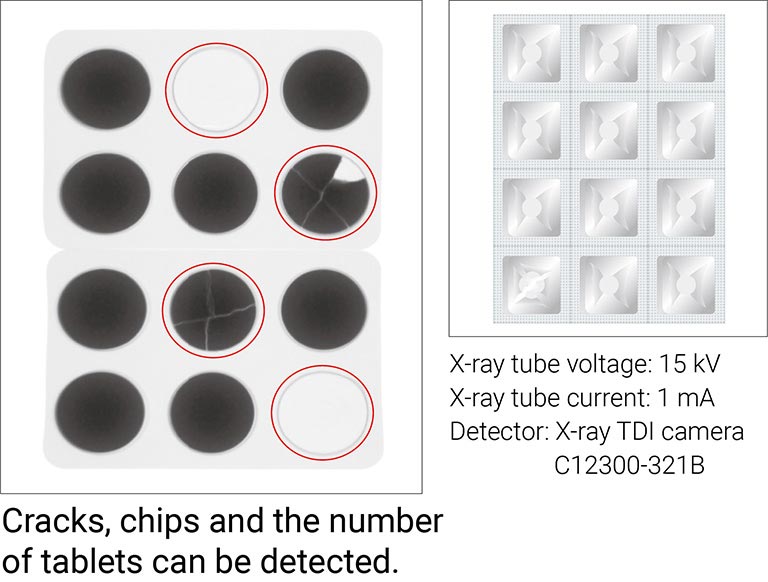

食品药品包装检查
- 咬伤
- 内容物（芯片、污染物等）
详细参数
| 参数 | 说明/值 | 单位 |
|---|---|---|
| X 射线管电压 | 15 | kV |
| X 射线管电流 | 1 | mA |
| 最大输出 | 15 | W |
| X 射线焦点尺寸 | 0.8 | mm |
| X 射线光束角度 (*1) | 150 | 度 |
| 焦点至物体距离 (FOD) (*2) | 3.2 | mm |
| 工作环境温度 | 0 至 +40 | ℃ |
| 储存环境温度 | -10 至 +60 | ℃ |
| 工作环境湿度 | 低于 60%（无冷凝） | ̶ |
| 储存环境湿度 | 低于 85%（无冷凝） | ̶ |
灯头
| 参数 | 说明/值 | 单位 |
|---|---|---|
| X 射线输出窗材/厚度 | 铍 / 0.3 | mm |
| 目标材料 | 钨 | ̶ |
| 重量 | 1750 | g |
控制器
| 参数 | 说明/值 | 单位 |
|---|---|---|
| 输入电压（交流） | 100 V 至 240 V，单相 50 Hz / 60 Hz | ̶ |
| 功耗 | 低于 50 W | ̶ |
| 重量 (*3) | 1620 | g |
法规和标准
| 参数 | 说明/值 | 单位 |
|---|---|---|
| RoHS 指令 | IEC/EN 63000 9 类 | ̶ |
| EMC | IEC/EN 61326-1 排放限值：CISPR 11 1 组 A 类 IEC/EN 61326-1 抗干扰要求：表 2 |
̶ |
| LVD | IEC/EN 61010-1 | ̶ |
备注：
*1：X 射线输出降至最大输出的 50% 时的角度。
*2：从照射窗到焦点的距离。
*3：包括附件 (220 g)。
外形尺寸图（单位：mm）

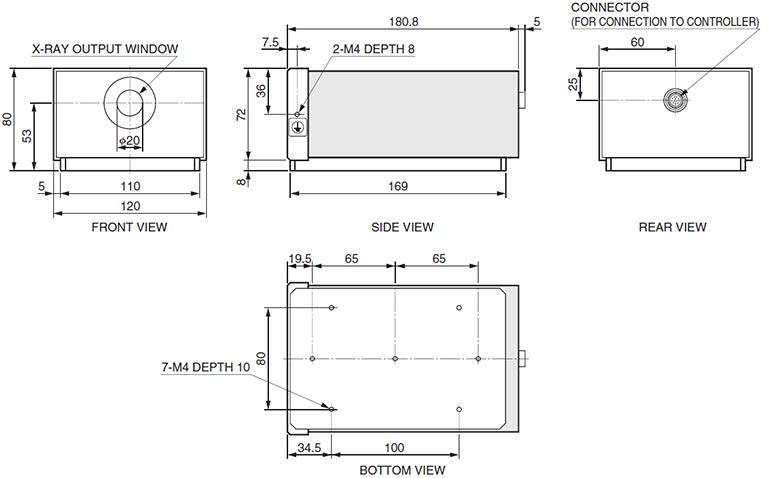

灯头 L11755-01

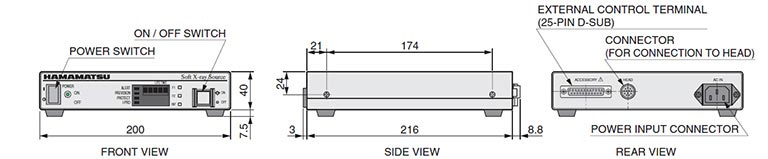

控制器 C11756-01W
控制电缆 A10885-05
