针孔检测单元
C12190 系列
C12190 是一款光学针孔检测单元，专为铝层压薄膜和金属箔检查进行优化。它提供 300 至 1800 mm 的检测宽度选择，以满足工件尺寸要求，并支持高达 600 米/分钟的高速输送线，且不会降低检查精度。
特点
- 最小可检测针孔尺寸：30 μm
- 检测宽度（每单元）：1828 mm
- 最大检测速度：600 m/min
详细参数
通用规格
| 参数 | 说明/值 | 单位 | |
|---|---|---|---|
| 输入电压 (DC) | 24 | V | |
| 检测单元 | 探测器 | 光电二极管阵列 | — |
| 通道数 (*1) | 4 | — | |
| 工作温度范围 | +10 至 +40 | °C | |
| 储存温度范围 | -20 至 +50 | °C | |
| 工作/储存湿度范围 | 35 至 85（无冷凝） | %RH | |
| 适用标准 | IEC 61326-1 1 组 A 类 | — | |
标准型
| 参数 | -01 | -02 | -03 | -04 | -05 | -06 | 单位 | |
|---|---|---|---|---|---|---|---|---|
| 可检测针孔尺寸 (*2) | 50 μm 至 2 mm | — | ||||||
| 检测宽度 | 304.8 | 609.6 | 914.4 | 1219.2 | 1524 | 1828.8 | mm | |
| 检测单元 (*3) | 最大消耗电流 | 0.75 | 0.8 | 0.85 | 0.9 | 0.95 | 1 | A |
| 光源单元 | 光源/波长（典型值） | LED / 644 | nm | |||||
| 最大消耗电流 | 0.18 | 0.36 | 0.54 | 0.72 | 0.9 | 1.08 | A | |
高灵敏度型
| 参数 | -11 | -12 | -13 | -14 | -15 | -16 | 单位 | |
|---|---|---|---|---|---|---|---|---|
| 可检测针孔尺寸 (*2) | 30 μm 至 1 mm | — | ||||||
| 检测宽度 | 304.8 | 609.6 | 914.4 | 1219.2 | 1524 | 1828.8 | mm | |
| 检测单元 (*3) | 最大消耗电流 | 0.75 | 0.8 | 0.85 | 0.9 | 0.95 | 1 | A |
| 光源单元 | 光源/波长（典型值） | LED / 940 | nm | |||||
| 最大消耗电流 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | A | |
*1：检测宽度均分为每个通道的宽度。
*2：可检测针孔尺寸取决于光强度和安装环境。
*3：与控制单元一起使用时的值。
* 附件：光源连接电缆 (10 m)、检测电缆 (10 m)、I/O 插座、引脚连接器、光源电源连接器

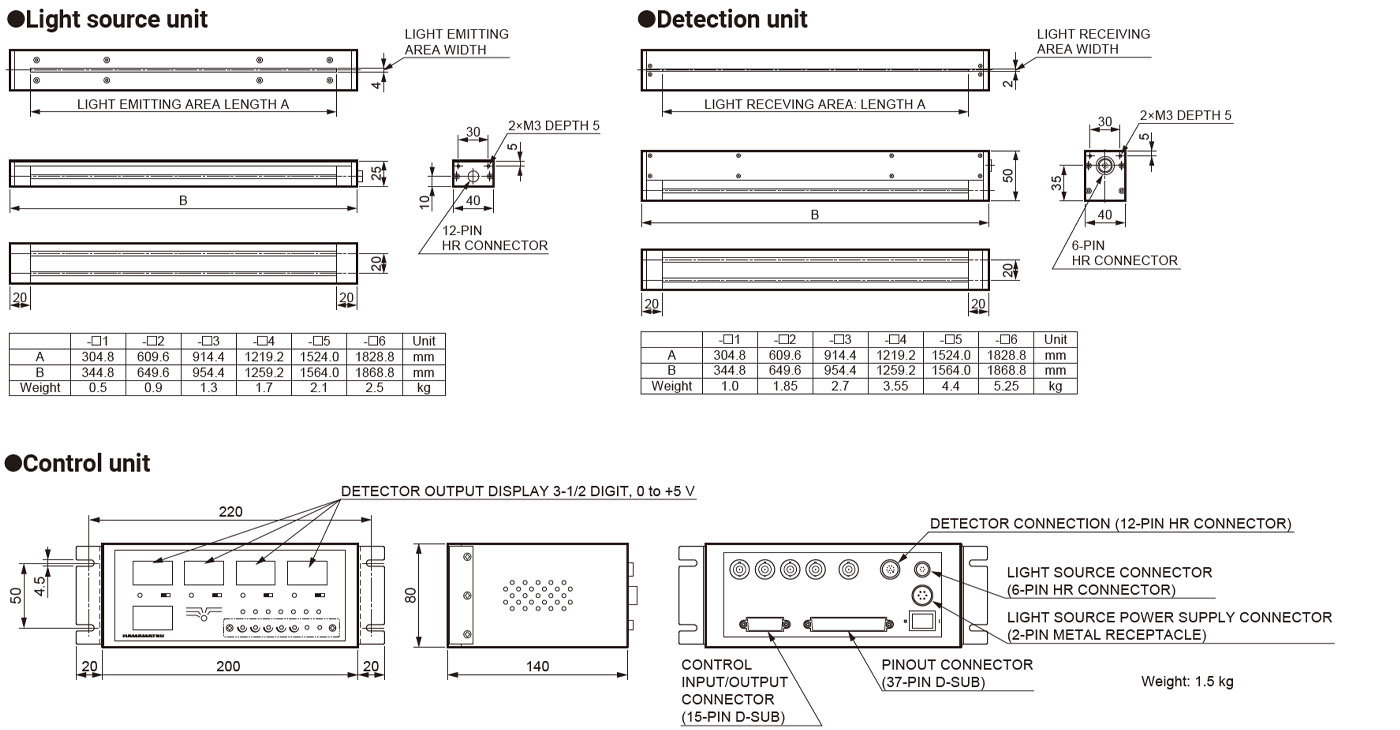

外形尺寸图（单位：mm）
