硅 APD

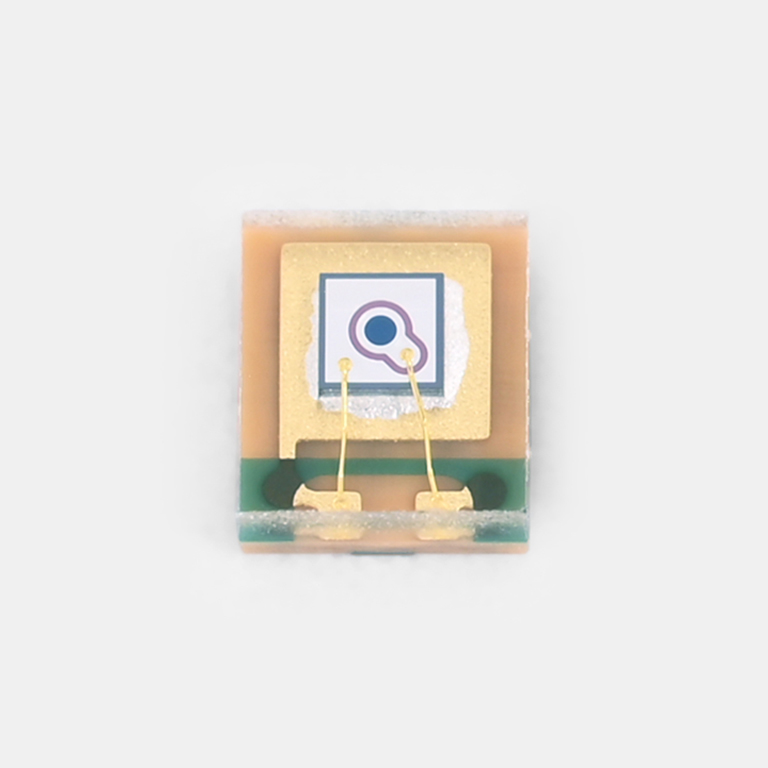

S17268-05
短波长类型 APD，表面贴装型封装
S17268-05 是一种表面贴装型短波长 APD，在紫外线至可见光区域表现出更强灵敏度。在短波区域内具有高增益、高灵敏度和低噪声等优势。
特点
- 紧凑表面贴装型封装：1.8 mm × 2.0 mm × 0.9t mm
- 高短波长灵敏度：QE=82 %（λ = 450 nm）
- 低偏压操作： 击穿电压=160 V 典型值。
- 低噪声
- 高速响应： 截止频率 = 0.8 GHz 典型值。 （λ=450 nm，M=50）
详细参数
| 类型 | 短波长类型 （低偏压操作） |
|---|---|
| 受光面 | φ0.5 mm |
| 封装 | 玻璃环氧树脂 |
| 封装类别 | 表面贴装型 |
| 最大灵敏度波长（典型值） | 600 nm |
| 灵敏度波长范围 | 350 至 1000 nm |
| 感光灵敏度（典型值） | 0.3 A/W |
| 暗电流（最大值） | 2 nA |
| 截止频率（典型值） | 800 MHz |
| 结电容（典型值） | 3.6 pF |
| 击穿电压（典型值） | 160 V |
| 击穿电压温度系数（典型值） | 0.15 V/℃ |
| 增益率（典型值） | 50 |
| 测量条件 | 典型值 Ta = 25°C，除非另有说明， 感光灵敏度：λ=450 nm，M=1，击穿电压：ID=100 μA，暗电流：M=50，截止频率：M=50，RL=50 Ω，λ=450 nm，-3 dB，结电容：M=50，f=1MHz |
光谱灵敏度特性
外形尺寸图（单位：mm）
