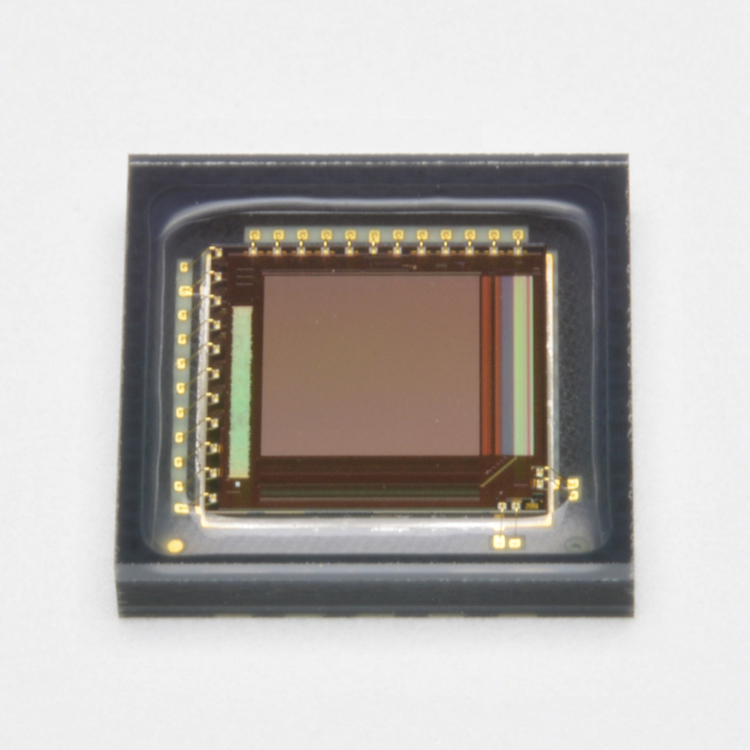

轮廓传感器
S15366-256 是带有重心运算电路的轮廓传感器,用于检测光斑的入射位置。在二维排列的受光面,使用金属配线将 X 方向投影数据的受光面连接成垂直的一排,并且将 Y 方向投影数据的受光面连接成水平的一排。受光面的输出总和是针对 X 和 Y 方向上的每一行获得的。投影数据可以通过按顺序获取所有行的数据来获得。由于投影数据的数据体量较小,因此可以比普通面阵图像传感器更快地执行位置检测和移动物体检测。内置重心运算电路,可以输出光斑重心运算结果。它还具有内置光斑自动跟踪模式。
特点
- 用于采集二维光斑位置坐标的传感器
- 内置重心运算电路
直接输出重心位置坐标
- 有效光敏区,像素数:
2 × 2 mm,256 + 256 像素
- 高速帧速率:
最高 3156 帧/秒(256 + 256 像素)
最高 83333 帧/秒(2 + 2 像素)
- 3.3 V 单电源供电
- 全局快门读出
- 支持部分读出和像素合并读出
- 配备自动跟踪模式
型号 |
S15366-256 |
|
---|---|---|
像素数 | 256 + 256 | 512 + 512 |
像素间距 | 7.8 μm | 7.8 μm |
像素尺寸 | 7.8 × 1996.8 μm | 7.8 × 3993.6 μm |
受光面 | 7.8 × 1996.8 μm | 3.9936 × 3.9936 mm |
帧速率(最大值) | 3156 帧/秒 | 1602 帧/秒 |
电源电压 | 3.3 V | 3.3 V |
测量条件 | Ta = 25°C,除非另有说明 | Ta = 25°C,除非另有说明 |
