MCP（微通道板）
F2225-21
/e_mcp-assemblies_pp02_xx.jpg/_jcr_content/renditions/thumb-e_mcp-assemblies_pp02_xx.jpg)
MCP 由数百万至数千万个导电玻璃毛细管捆绑在一起，形成一块薄板。
F2225-21 是一款微通道板 (MCP) 组件，双 MCP 元件配置型，有效直径为 Φ42 mm。
详细参数
| 项目 | F2225-21S | F2225-21P | 单位 | |
|---|---|---|---|---|
| MCP 数量 | 2 | ー | ||
| 有效面积 | Φ42 | Φ40 | mm | |
| 信号读出 | 单阳极 | 荧光屏 | ー | |
| 通道直径 | 12 | µm | ||
| 增益率 *1 | 最小 | 1 × 106 | ー | |
| 脉冲高度分辨率 *1 | 最大值 | 120 | ％ | |
| 暗计数 *1 | 最大值 | 3 | S-1・cm2 | |
| MCP 电源电压 *2 | 2.0 | kV | ||
| MCP 输出端至阳极电源电压 *2 | 0.5 | 3.0 ～ 4.0 | kV | |
*1：电源电压：1.0 kV/MCP，真空度：1.3 × 10-4 Pa，工作环境温度：+25°C
*2：真空度：1.3 × 10-4 Pa

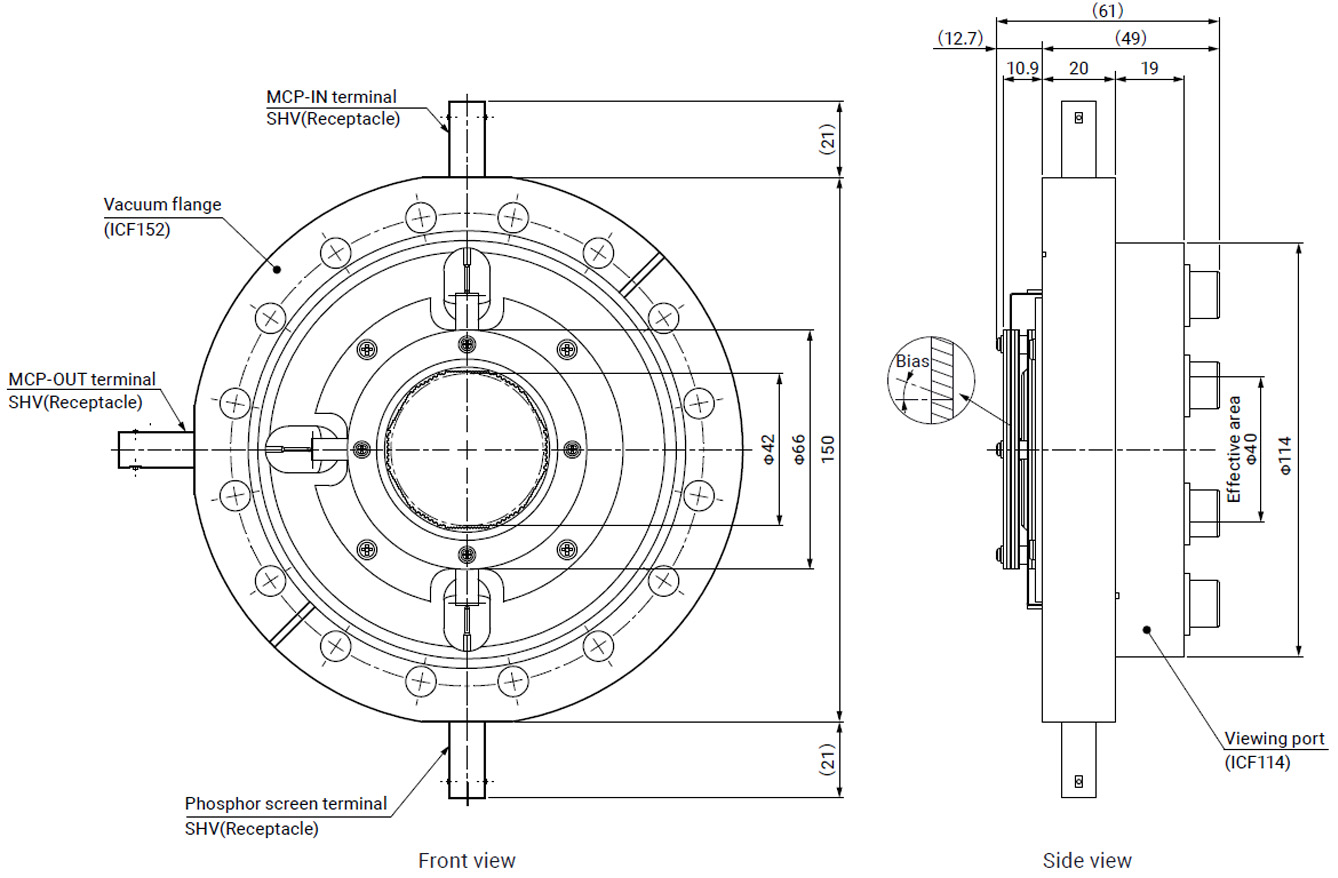

外形尺寸图（单位：mm）
