图像增强管
V6887U-03
/e_v6886u_v6887u_v4170u_v4183u_v13716u_pp_xx.jpg/_jcr_content/renditions/thumb-e_v6886u_v6887u_v4170u_v4183u_v13716u_pp_xx.jpg)
图像增强器是可以检测和放大极低光量来捕捉图像的设备。
它们的用途广泛，可用于成像不可见区域的微放电，亦可用于观察高速现象。
V6887U-03 是 Cs-Te 光阴极面图像增强器，光谱响应范围为 160 nm 至 320 nm，有效光阴极面为 Φ18 mm。
详细参数
| 特点 | 第二代，高分辨率 |
|---|---|
| 光谱灵敏度特性（短） | 160 nm |
| 光谱灵敏度特性（长） | 320 nm |
| 光谱灵敏度特性（峰值） | 230 nm |
| 输入窗口 | 合成二氧化硅 |
| 折射率 | 1.51 |
| 有效光阴极面 | 18 mm 直径 |
| MCP 级 | 1 |
| 光阴极面材料 | Cs-Te |
| 门控功能 | 有 |
| 辐射灵敏度 | 22 mA/W |
| 量子效率 (QE) | 12% |
| 辐射增益 | 2.6 x 103 (W/m2)/(W/m2) |
| 等效背景输入 (EBI) | 1.0 x 10-15 W/cm2 |
| 极限分辨率 | 40 Lp/mm |
| 工作环境温度 | -20 至 +40 °C |
| 储存环境温度 | -55 至 +60 °C |
| 冲击上限 | 300 m/s2 (30G)，18 ms |
| 振动上限 | 10 Hz 至 55 Hz，0.35 mm (p-p) |

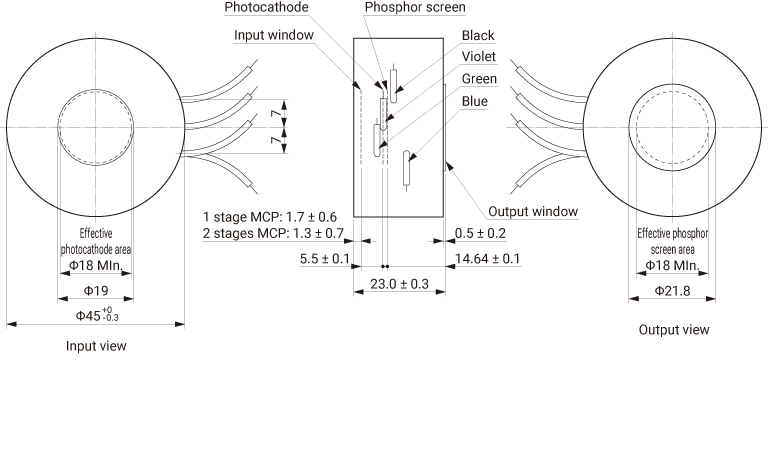

外形尺寸图（单位：mm）
