InGaAs 线阵图像传感器

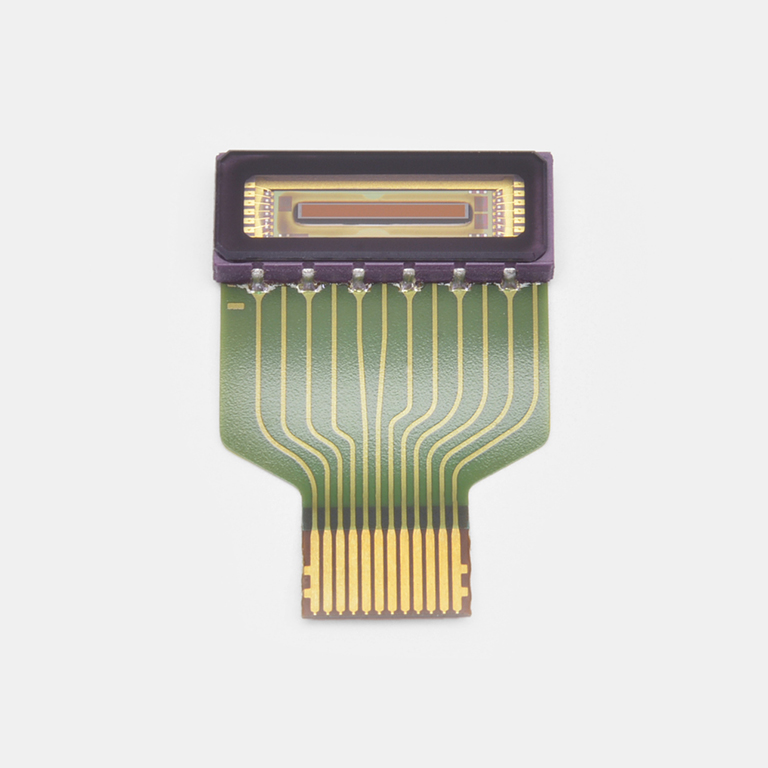

G13913-128FB
用于便携式分析仪器的近红外图像传感器
这款紧凑型低成本近红外线阵图像传感器设计用于便携式分析仪器。
其消耗电流低于前代产品（DIP 封装产品：G11620 系列）。由于采用带有柔性电路板的紧凑型 LCC 封装，它们适合集成到紧凑的薄型设备中。
■特点
- 紧凑型（带柔性电路板）
- 3.3 V 驱动器
- 低消耗电流：15 mA
- 低成本
- 128 像素（50 μm × 250 μm/像素）
- 有两种转换效率等级可供选择
- 内置抗饱和电路
- 操作方便（内置时序发生电路）
详细参数
| 影像尺寸 | 6.4 mm × 0.25 mm |
|---|---|
| 像素尺寸 | 50 μm × 250 μm |
| 像素间距 | 50 μm |
| 有效像素数 | 128 |
| 封装 | 陶瓷，带柔性电路板 |
| 散热 | 非冷却型 |
| 行速率（最大值） | 13600 行/秒 |
| 灵敏度波长范围 | 950 nm 至 1700 nm |
| 最大灵敏度波长（典型值） | 1550 nm |
| 暗电流（最大值） | 10 pA |
| 测量条件 | 除非另有说明，典型值 Ta = 25°C，Vdd = 3.3 V，INP = Fvref = Vhold = PDN = 2.5V，Vclk = 3.3 V，fop = 1 MHz |
光谱灵敏度特性
外形尺寸图（单位：mm）
相关文档
