兼容 USB 接口的计数单元
C13182-01
C13182-01 是一款专为高速光探测而设计的计数单元。通过将本单元与高速放大器组合，可配置高速光子计数器。此单元使用具有两个计数电路的双计数器方法，进行无死区时间的测量。
特点
非常适合使用混合光电检测器 (HPD) 等高速光电检测器进行光子计数
计数线性度：大于 5 x 107 s-1
USB 接口可实现高速数据传输
精确测量，无死区时间（双计数器法）
随附示例软件
详细参数
| 参数 | 说明/值 | |
|---|---|---|
| 输入 | 输入信号通道数量 | 1 |
| 信号输入电平 | +50 mV 至 +1.2 V | |
| 信号脉波宽度 | 1 ns 或更长 | |
| 输入阻抗 | 50 Ω | |
| 鉴别级别 | +5 mV 至 +1.2 V | |
| 最大计数线性度 | 超过 5 × 107 s-1（随机脉冲，10% 计数丢失） | |
| 脉冲对分辨率 | 2 ns | |
| 计数器 | 计数器方法 | 双计数器方法 |
| 最大计数器容量 | 28/计数器门控（门控时间 1 μs 至 5 μs） | |
| 216/计数器门控（门控时间 10 μs 至 1 ms） | ||
| 224/计数器门控（门控时间 2 ms 至 100 ms） | ||
| 计数器门控 | 计数器门控模式 | 仅内部计数器门控 |
| 内部计数器门控时间 | 1 μs 至 100 ms（1、2、5 步幅） | |
| 触发器 | 触发方法 | 软件/外部触发器 |
| 外部触发信号 | TTL 负逻辑 | |
| 先进先出容量 | 2048 个计数数据（门控时间 1 μs 至 5 ms）
64 个计数数据（门控时间 10 ms 至 100 ms）
|
|
| 操作系统 | Windows® 10 Pro / 11 Pro | |
| 接口 | USB 2.0 | |
| 电源电压 | +7 V / 750 mA（由交流适配器供电） | |
| 尺寸 (W × H × D) | 115.8 mm × 28 mm × 96 mm（不含橡胶支脚和突出部分） | |
| 重量 | 240 g | |
| 工作环境温度/湿度 | +5 ℃ to +45 ℃ / 低于 80%（无冷凝） | |
| 存储温度/湿度 | 0 ℃ to +50 ℃ / 低于 85%（无冷凝） | |
| CE 标志 | ･EN 61010-1/A1
･EN 61326-1
发光限值：CISPR 11 1 组 B 类
抗干扰要求：表 1
･EN IEC 63000
|
|
| 交流适配器 | 输入 | AC 100 V 至交流 240 V |
| 输出 | +7 Ｖ/ 1.6 A | |
提供：CD-ROM（包含设备驱动程序、DLL、示例软件、说明手册等）、USB 电缆、交流适配器（-A1：日本适用，-A2：美国适用，-A3：欧盟适用）、带 SMA-P 连接器的信号电缆、带鉴别级别显示器连接器的电缆（红色和黑色）

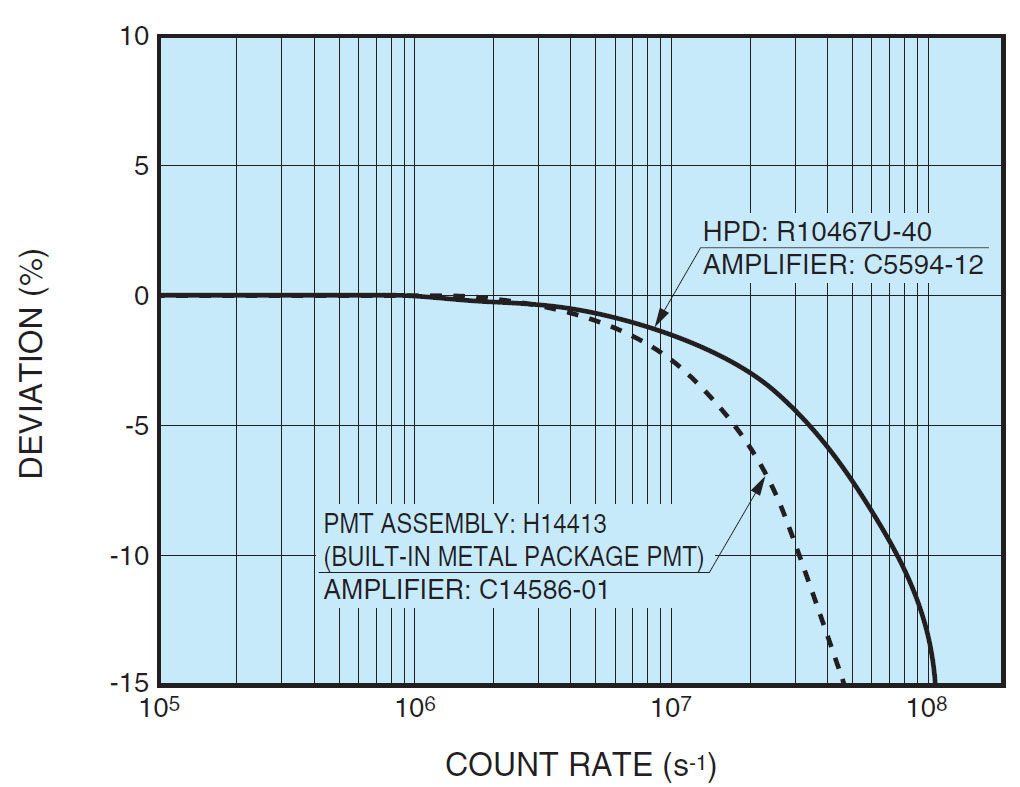

计数线性度

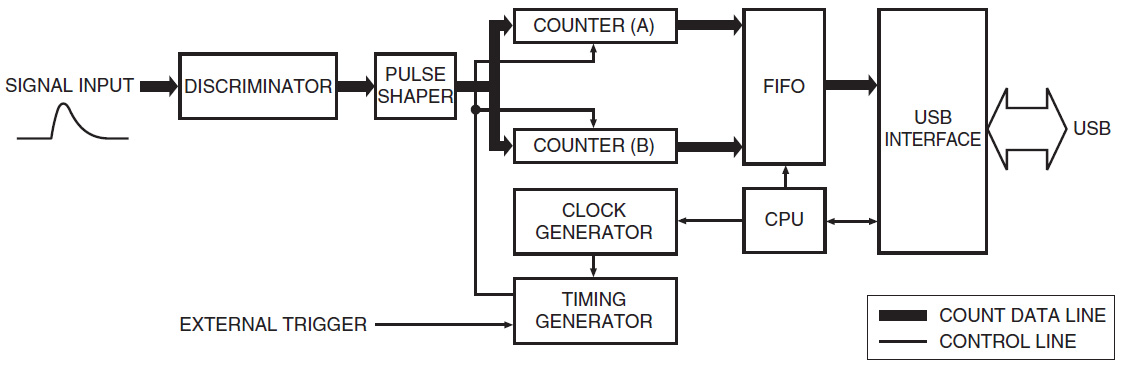

内部框图

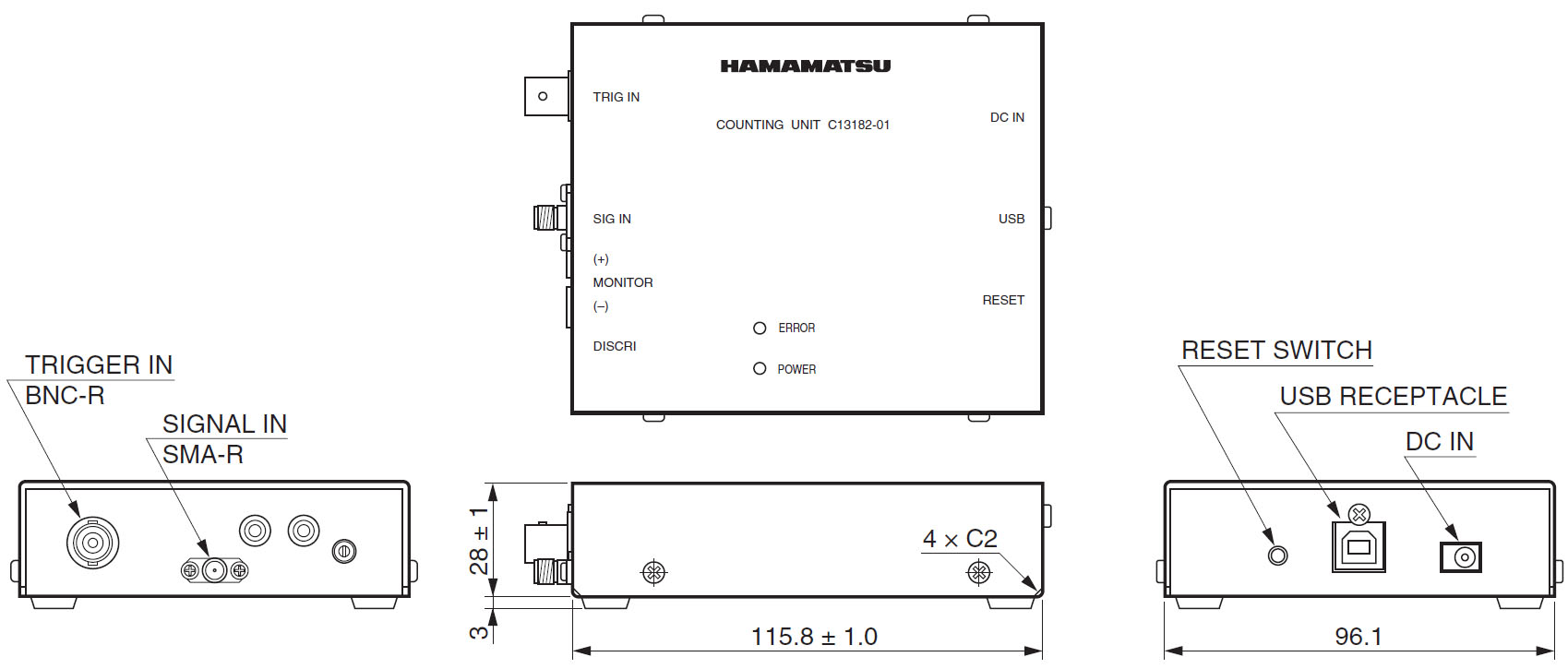

外形尺寸图（单位：mm）
