FTIR 引擎
C15511-01 傅里叶变换红外光谱仪 (FTIR) 引擎小巧紧凑,可单手携带。迈克尔逊光干涉仪和控制电路均内置于手掌大小的外壳中。可以通过 USB 连接 PC 来测量光谱和吸光度。它可以应用于现场进行的实时测量,而无需将测量样品带入分析室,并能进行持续监测。
该光干涉仪配有内置光输入部分、分光镜、固定反射镜、可动反射镜 (ϕ3 mm) 和光电检测器。光电检测器采集的光强度信号根据可动反射镜的位置变化。通过处理(傅里叶变换)这些光强信号获得光谱。
FTIR 引擎具有内置半导体激光器(VCSEL:垂直腔体表面发射激光器),用于监控可动反射镜位置,从而实现高波长精度的光谱测量。
该产品包含评估软件,具有设置测量条件、采集和保存数据、绘制图形等功能。此外,还公开了动态链接库 (DLL) 功能规范,以便用户可以创建其原创测量软件程序。
特点
- 紧凑:手掌尺寸
- 光纤输入型
- 高信噪比:适用于漫反射测量和吸光度测量
- 光谱响应范围:1100 至 2500 nm
光干涉仪 | 迈克耳孙干涉仪(内置 φ3 mm 可动反射镜) |
---|---|
光电检测器 | InGaAs PIN 光电二极管 |
光输入法 | 光纤输入型(带 SMA 连接器) |
接口 | USB 2.0 |
灵敏度波长范围 | 1100 至 2500 nm |
光谱分辨率(FWHM)典型值 | 5.7 nm |
波长可再现性(典型值) | ±0.5 nm |
波长温度依赖性(典型值) | ±0.06 nm/°C |
信噪比 | 10000 |
测量条件 | 光谱分辨率(FWHM):波数分辨率(半宽度)相当于 25 cm-1 信噪比:光入射时光谱数据的峰值与暗态噪声均方根 (rms) 之比 |

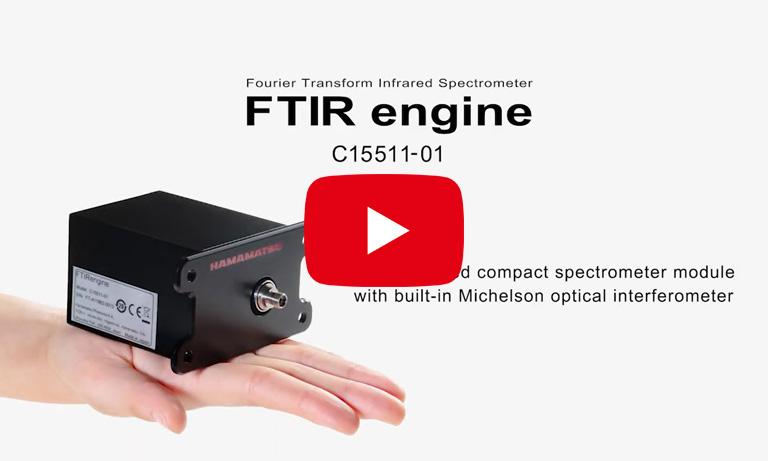

介绍了 FTIR 引擎的特点、配置和工作原理。

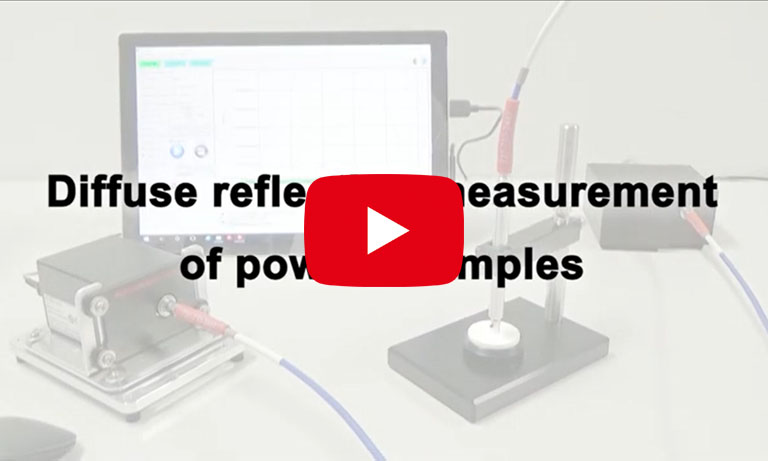

演示了 FTIR 引擎对蔗糖和果糖样品的漫反射测量。

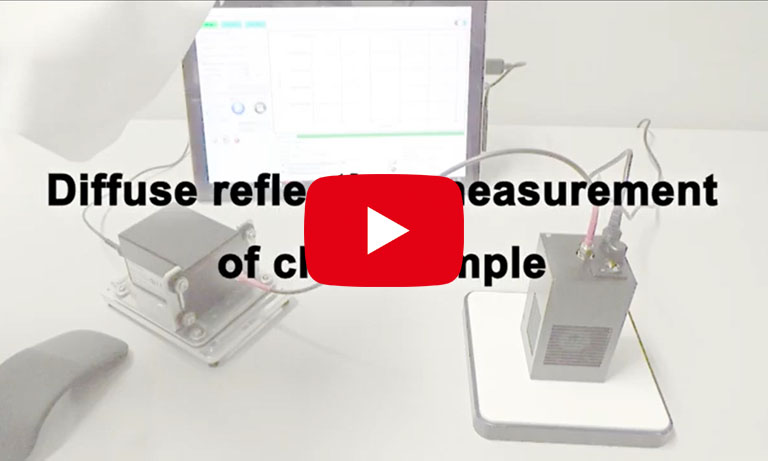

演示了 FTIR 引擎对湿布和干布的漫反射测量。

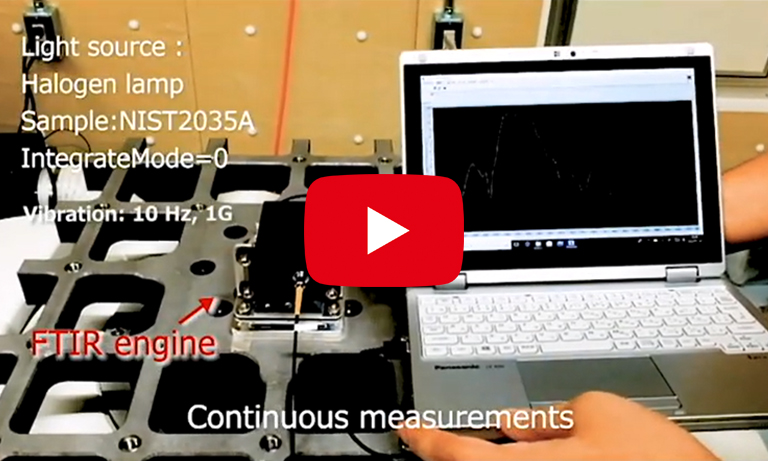

演示了 FTIR 引擎在振动下的高稳定性。
