UV 功率计
C9536/H9535 系列
C9536/H9535 系列是可直接测量特定波长 UV 光的 UV 功率计。H9535（传感器头）使用 UV 传感器（光电管），可确保长时间稳定的 UV 测量，并结合 C9536（控制器），根据国家标准进行校准。可拆卸传感器探头包含可充电电池，用于 UV 检测和数据存储，从而支持远程测量，例如在皮带输送机上或在难以实施电缆布线的位置。除了通过 RS-232C 接口进行外部控制外，还可以在数据记录仪等设备上进行模拟控制。
特点
- 绝对光量监测 (mW/cm2)
功率计随附每个波长（172 nm、222 nm、185 nm、254 nm）的灵敏度校准数据。我们还附上校准证书。 - 可拆卸传感器探头/远程测量
可拆卸传感器探头支持在 UV 烘箱的传送带等位置进行远程测量。 - 薄型扁平传感器探头：14 mm 厚度
使传感器探头能够更靠近光源使用。 - 外部控制：RS-232C
主单元具有 RS-232C 接口，用于外部控制。 - 由于不使用滤光片，因此在深 UV 下性能稳定
无需任何滤光片即可直接检测具体的 UV 光。 - 宽广的光入射角
即使不使用扩散片，可接受的光入射角也接近 cos θ。
用途
- 准分子灯监控
- 低压汞灯监控
- UV 光监测器
・ UV 烘箱（涂层、粘合剂、印刷）・UV 清洁、UV 灭菌・改善表面特性
详细参数
控制器：C9536
| 显示 | 液晶数字显示器 [辐射照度 (mW/cm2) /积分光功率 (mJ/cm2)：最多 4 位有效数字] | |||
|---|---|---|---|---|
| 功能 | 实时/积分/峰值保持/温度 | |||
| 积分时间设置 | 1 秒至 5 分钟（1 秒步幅） | |||
| 模拟输出 | 0 V 至 +2 V | |||
| 外部接口 | RS-232C | |||
| 电源要求 | 充电电池（内置）/交流适配器（交流 100 V 至 240 V）（已提供） | |||
| 工作环境温度/湿度 | 0 °C 至 +40 °C / 低于 80%（无冷凝） | |||
| 储存温度/湿度 | -20 °C 至 +50 °C / 低于 80%（无冷凝） | |||
| 重量 | 约 285 g | |||
传感器探头：H9535 系列
| H9535-172 | H9535-222 | H9535-185 | H9535-254 | 单位 | |
|---|---|---|---|---|---|
| 校准波长 | 172 | 222 | 185 | 254 | nm |
| 适用光源 | 准分子灯 | 低压汞灯 | - | ||
| 受光面 | φ6 | mm | |||
| 光功率测量范围 | 0.001 至 200 | mW/cm2 | |||
| 国家标准 | NIST | AIST | NIST | AIST | - |
| 工作环境温度/湿度 | 0 °C 至 +60 °C / 低于 80%（无冷凝） | - | |||
| 储存温度/湿度 | -20 °C 至 +60 °C / 低于 80%（无冷凝） | - | |||
| 重量 | 传感器探头：约 60 g/电缆：约 110 g | - | |||
C9536 和 H9535 系列不能用于真空操作。
传感器特性

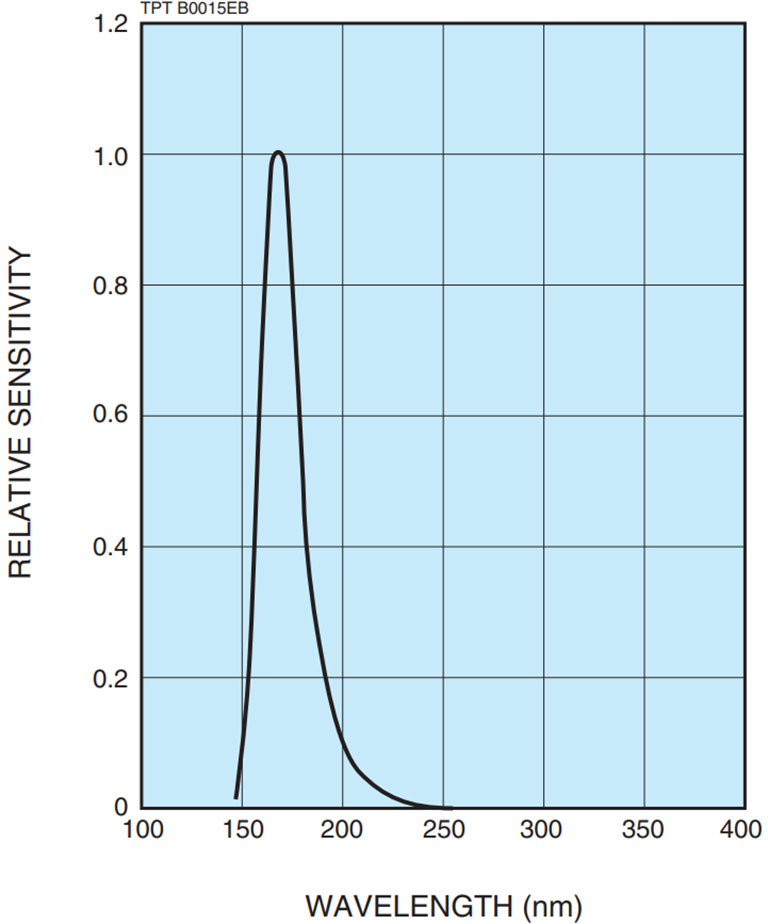

H9535-172，-185 光谱灵敏度特性

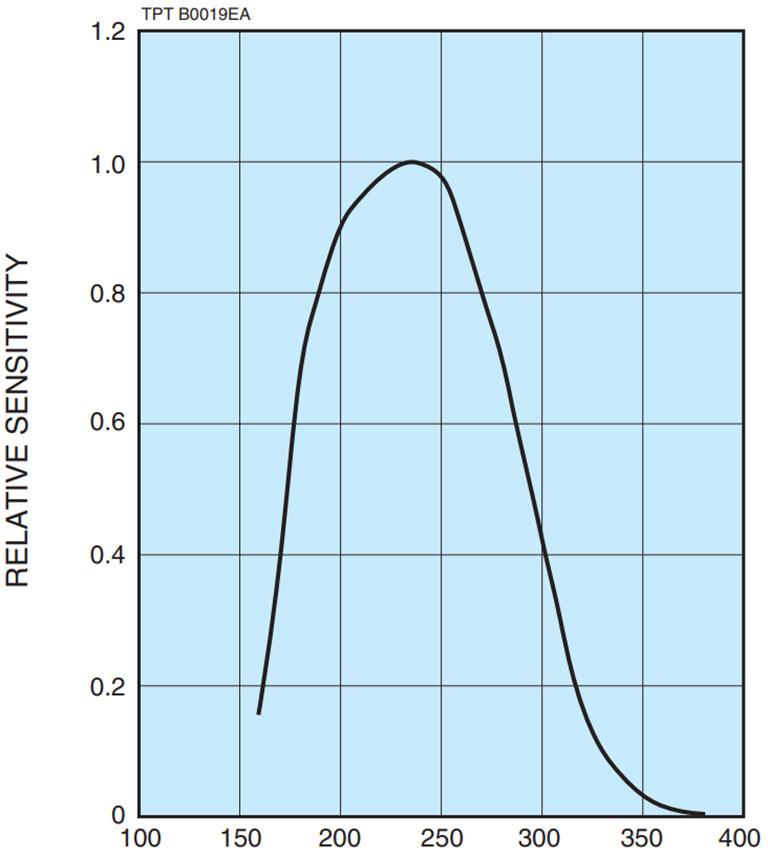

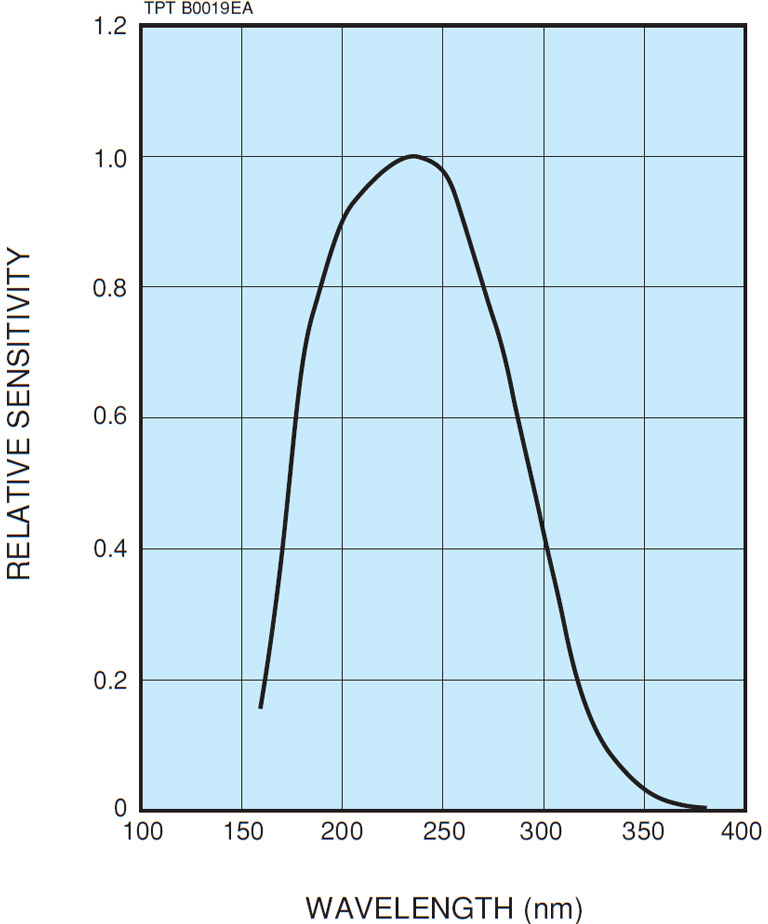

H9535-222 光谱灵敏度特性

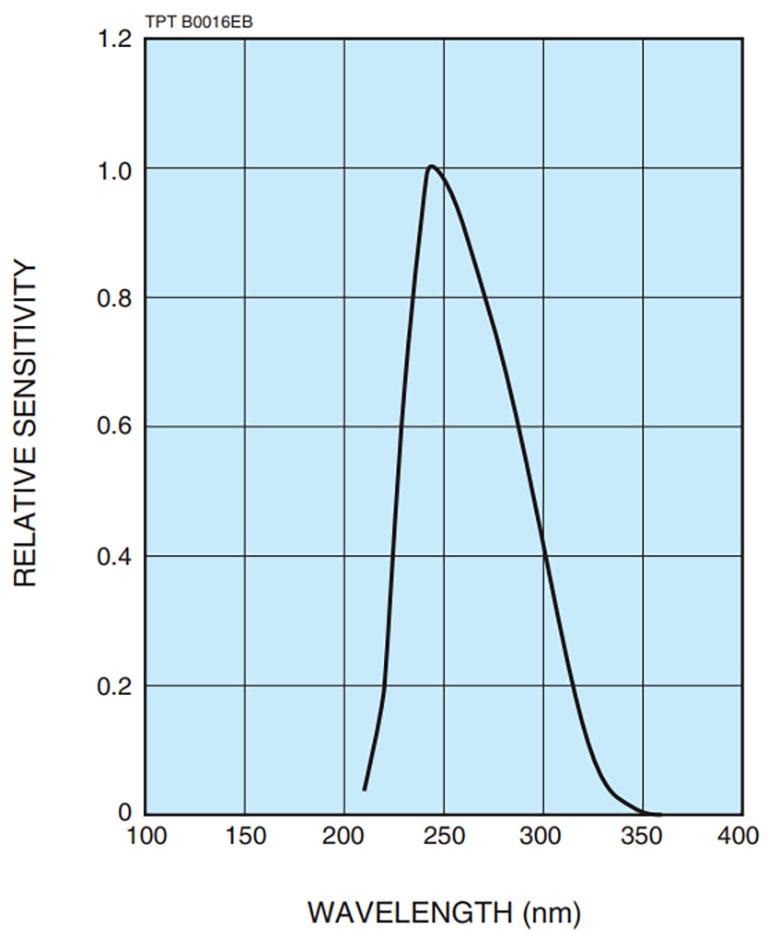

H9535-254 光谱灵敏度特性

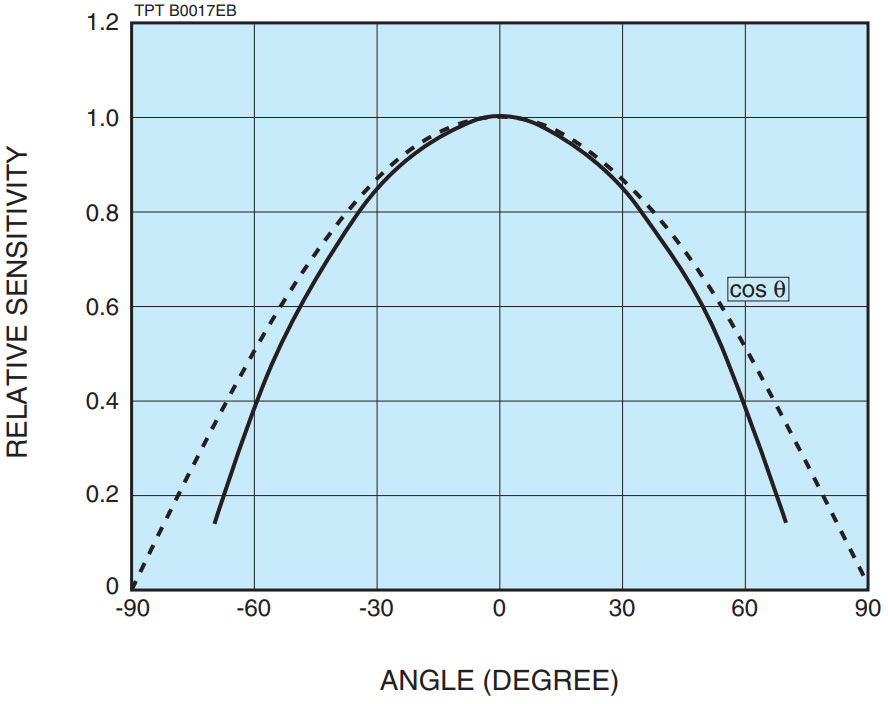

螺旋反应

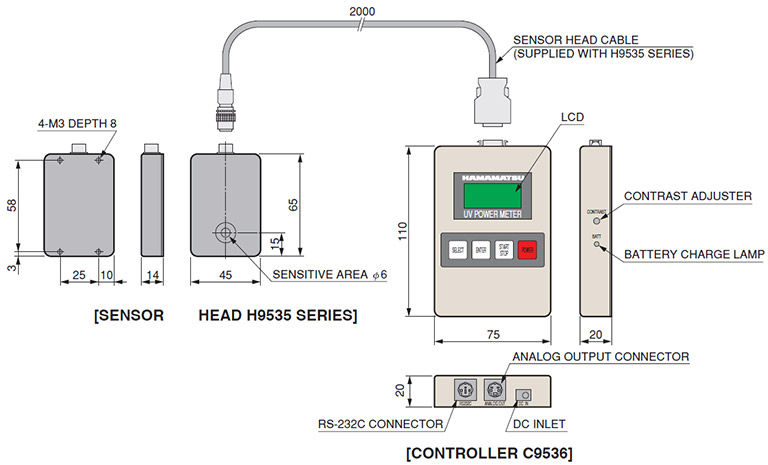

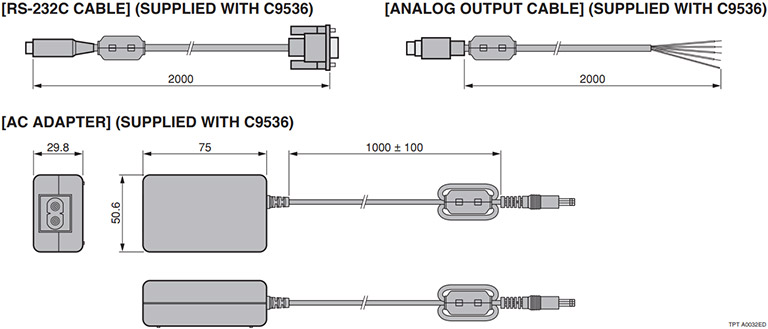

外形尺寸图（单位：mm）
