UV 功率计
C9536/H9958 系列
C9536/H9958 系列是设计用于测量 UV 光绝对光功率 (mW/cm2) 的光功率计。这些光功率计在宽 UV 波长范围内具有平稳的光谱灵敏度特性，并且能够独立于待测量光源的光谱发射分布来测量光功率。与常用的 UV 功率计不同，只需一台功率计即可轻松测量各种 UV 光源的光功率，而无需校正发射光的每种波长。C9536-02 和 H9958-02 的组合适用于测量高输出 UV-LED 的光功率。此外，我们建议将 C9536-01 和 H9958 组合作为功率计，以测量光催化专用光源的光功率。
该系列（C9536/H9958 系列）不符合 CE 标准。
特点
- 可根据日本国家标准进行追溯，随附校准证书
- 在较宽的 UV 区域具有平稳的光谱灵敏度特性
- 高灵敏度（可检测到低至 1 µW/cm2）（H9958、H9958-01）
- 兼容高输出 UV-LED (H9958-02)
- 非常适合用于监测/控制光催化剂专用光源的功率 (H9958)
用途
监控、测量和控制：
- 黑灯管
- UV LED
- 紫外线 (UV-A)
- 汞氙灯
- 高压汞氙灯
- 氘灯
详细参数
控制器：C9536-01/C9536-02
| 参数 | 说明/值 | |
|---|---|---|
| 测量模式 | 连续 | 此模式以 1 秒的采样速率进行连续测量。 |
| 积分 | 此模式显示特定时间段内积分的结果 （可按照 1 秒步幅从 1 秒调整至 5 分钟）。 |
|
| 单次对焦（仅限 C9536-01） | 每次按下 START（开始）开关时，此模式都会进行一次测量。 | |
| 峰值保持（仅限 C9536-02） | 该模式保持连续测量的峰值。 | |
| 外部接口 | RS-232C | |
| 电源要求 | 内置电池或交流适配器 | |
| 尺寸 (W × H × D) | 75 mm × 110 mm × 20 mm | |
| 工作环境温度/湿度 | 0℃ 至 +40℃/低于 80%RH（无冷凝） | |
| 存储温度/湿度 | -20℃ 至 +50℃/低于 80%RH（无冷凝） | |
| 重量 | 约 285 g | |
提供：RS-232C 电缆 (2 m)、模拟输出电缆 (2 m)、交流适配器、交流电缆
使用外部通信接口控制本产品时，请自行制作自己的软件。
传感器探头：H9958 系列
| 参数 | 说明/值 | ||
|---|---|---|---|
| 控制器和传感器探头组合 | C9536-01 | C9536-02 | |
| 类型 | H9958 | H9958-01 | H9958-02 |
| 光谱灵敏度特性 | 310 nm 到 380 nm | 300 nm 到 410 nm | |
| 有效面积 | 10 mm 直径 | 1mm 直径 | |
| 测量范围 | 1 μW/cm2 至 100 mW/cm2 | 100 μW/cm2 至 10 W/cm2 | |
| 尺寸 (W × H × D) | 55 mm × 75mm × 18 mm | ||
| 工作环境温度/湿度 | 0℃ 至 +45℃/低于 80%RH（无冷凝） | 0℃ 至 +60℃/低于 80%RH（无冷凝） | |
| 存储温度/湿度 | -20℃ 至 +50℃/低于 80%RH（无冷凝） | -20℃ 至 +60℃/低于 80%RH（无冷凝） | |
| 重量 | 约 195 g | ||
传感器特性

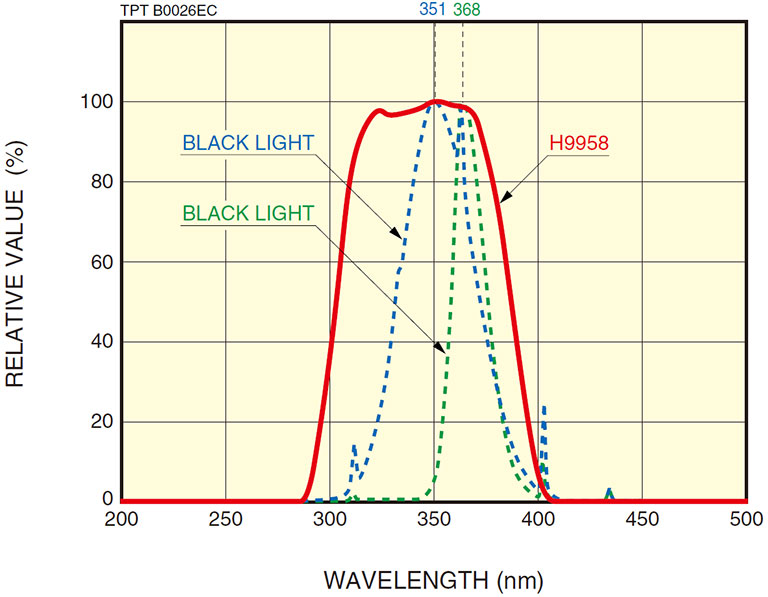

（H9958：310 nm 至 380 nm）*
* 在波长范围之外可能发生轻微响应
如上所述。

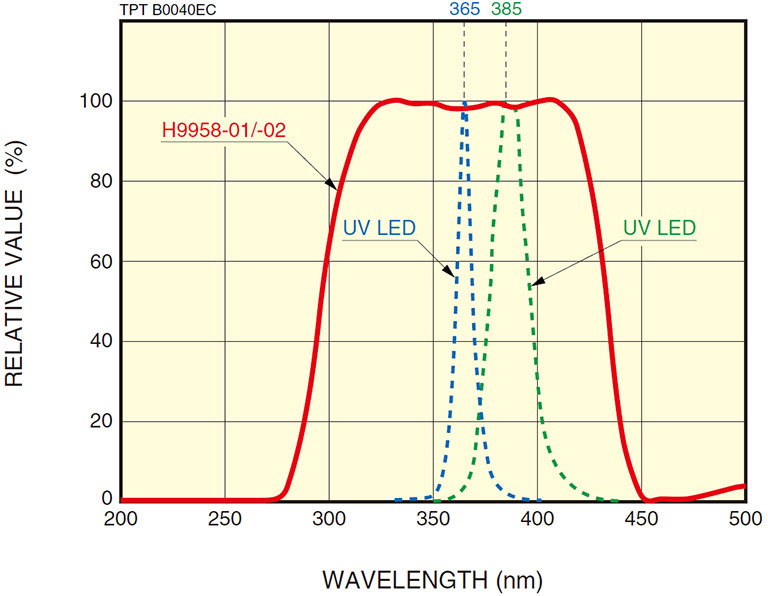

（H9958-01/-02：300 nm 至 410 nm)*
* 在波长范围之外可能发生轻微响应
如上所述。

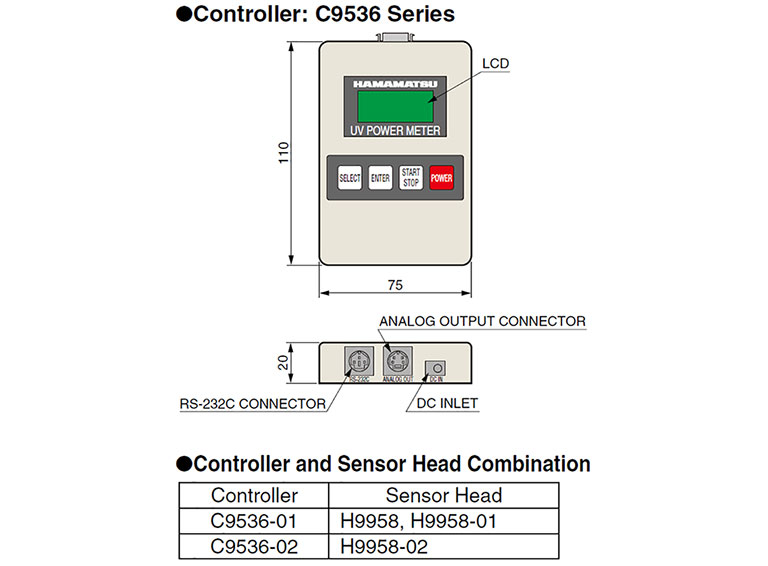

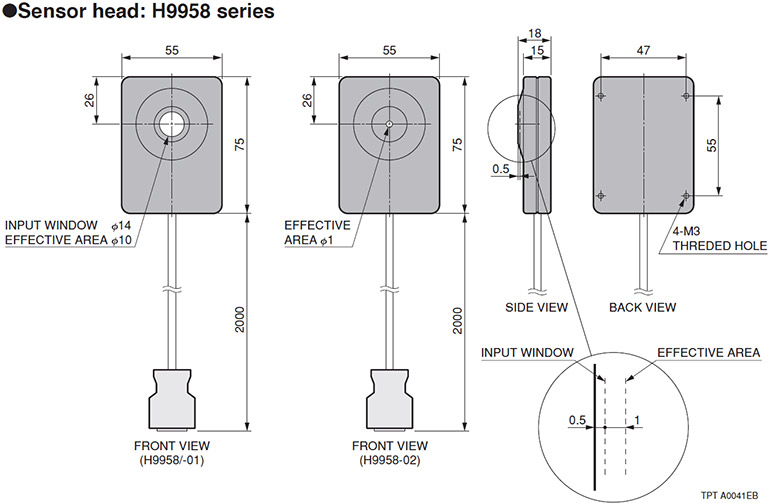

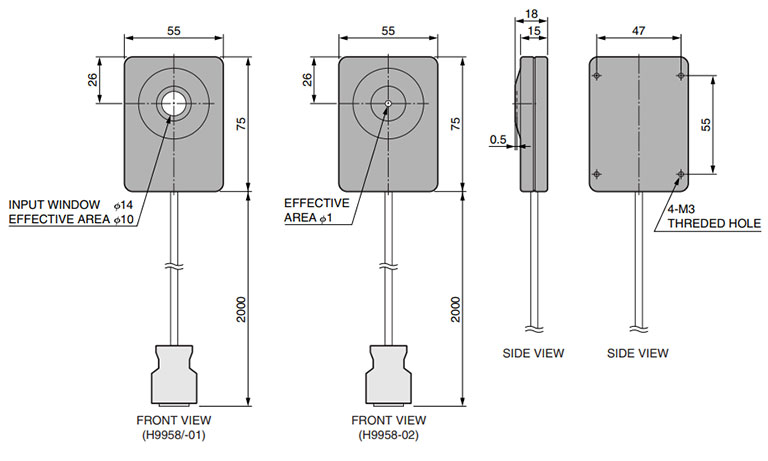

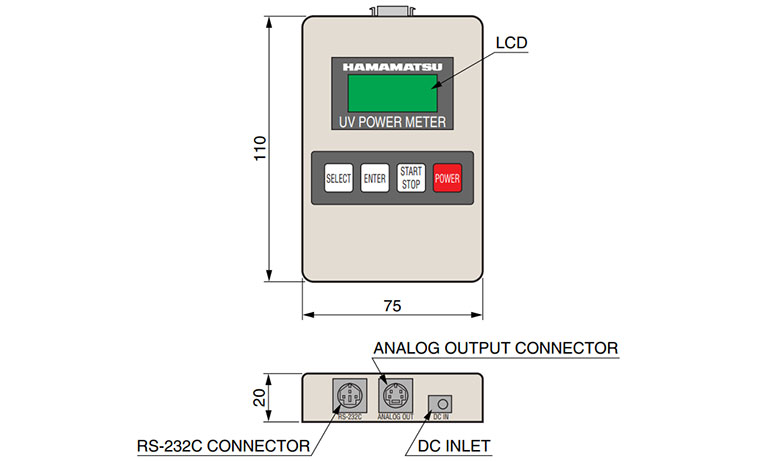

外形尺寸图（单位：mm）
| 控制器 | 传感器探头 |
|---|---|
| C9536-01 | H9958、H9958-01 |
| C9536-02 | H9958-02 |
