通用型条纹相机
C16910 系列
模块化设计可支持广泛的用途！
通用型条纹相机 C16910 系列整合了滨松在 40 多年的研究过程中所获得的全部专业技术和专业知识。条纹管在滨松的定期生产计划中制造，以提供一致性和可靠性。还可以满足特殊需求和定制设计。
特点
- 小于 800 ps 的时间分辨率
- 紫外线到近红外波长
- 同时测量时间和空间（波长）轴上的光强
- 检测单个光子
- 使用内部 MCP 改善信噪比
- 将 MCP 门和光阴极门一起使用，实现 108 或更高的消光比
用途
- 荧光寿命测量，瞬态吸收测量，时间分辨拉曼光谱仪
- 光通信，量子器件的响应测量
- 测量同步加速器和 LINAC 应用的电子聚束
- 涉及自由电子激光器和其他各类脉冲激光器的研究
- 等离子体发光、辐射、激光烧蚀、燃烧和爆炸
- LiDAR 汤姆森散射，激光测距
- 钙钛矿太阳能电池材料开发
详细参数
| 产品编号 | C16910-01 | C16910-02 | C16910-03 | C16910-04 | C16910-05 |
|---|---|---|---|---|---|
| 光阴极面 | S-20 | S-1 | S-20MgF2 | S-25 | S-20ER |
| 光谱灵敏度特性 | 200 nm 至 850 nm | 300 nm 至 1600 nm | 115 nm 至 850 nm | 280 nm 至 920 nm | 200 nm 至 900 nm |
| 有效光阴极面尺寸*1 | 0.15 mm × 4.5 mm ±5％ （使用 ORCA-Flash4.0 V3） |
0.15 mm × 4.5 mm ±5％ （使用 ORCA-Flash4.0 V3） |
0.15 mm × 4.5 mm ±5％ （使用 ORCA-Flash4.0 V3） |
0.15 mm × 4.5 mm ±5％ （使用 ORCA-Flash4.0 V3） |
0.15 mm × 4.5 mm ±5％ （使用 ORCA-Flash4.0 V3） |
| 电源 | AC 100 V 至交流 240 V 50 Hz/60 Hz |
AC 100 V 至交流 240 V 50 Hz/60 Hz |
AC 100 V 至交流 240 V 50 Hz/60 Hz |
AC 100 V 至交流 240 V 50 Hz/60 Hz |
AC 100 V 至交流 240 V 50 Hz/60 Hz |
| 用电功耗 | 约 300 VA | 约 300 VA | 约 300 VA | 约 300 VA | 约 300 VA |
与扫描装置组合
| 扫描单元 | M16911-01 | M16911-03 | M16912-01 | M16913-01 |
|---|---|---|---|---|
| 时间 分辨率*1 |
< 800 fs 半宽度 | < 2 ps 半宽度 | < 800 fs 半宽度 | < 20 ps 半宽度 |
| 同步扫描 频率 |
74 MHz ～ 165 MHz | 38 MHz ～ 74 MHz | － | － |
| 最高扫描频率 频率 |
－ | － | 10 kHz | 4 MHz（最快扫描范围） |
| 扫描时间 （全屏） |
约 60 ps 至 1/6 fs*2 （使用 ORCA-Flash4.0 V3） |
约 200 ps 至 1/6 fs*2 （使用 ORCA-Flash4.0 V3） |
60 ps ～ 20 ns （使用 ORCA-Flash4.0 V3） |
1.2 ns ～ 1 ms （使用 ORCA-Flash4.0 V3） |
| 扫描单元 | M16911-01 | M16911-03 | M16912-01 | M16913-01 |
|---|---|---|---|---|
| 时间 分辨率*1 |
< 1.5 ps 半宽度 | < 2 ps 半宽度 | < 1.5 ps 半宽度 | < 20 ps 半宽度 |
| 同步扫描 频率 |
74 MHz ～ 165 MHz | 38 MHz ～ 74 MHz | － | － |
| 最高扫描频率 频率 |
－ | － | 10 kHz | 4 MHz（最快扫描范围） |
| 扫描时间 （全屏） |
约 60 ps 至 1/6 fs*2 （使用 ORCA-Flash4.0 V3） |
约 200 ps 至 1/6 fs*2 （使用 ORCA-Flash4.0 V3） |
60 ps ～ 20 ns （使用 ORCA-Flash4.0 V3） |
1.2 ns ～ 1 ms （使用 ORCA-Flash4.0 V3） |
| 扫描单元 | M16911-01 | M16911-03 | M16912-01 | M16913-01 |
|---|---|---|---|---|
| 时间 分辨率*1 |
< 800 fs 半宽度 | < 2 ps 半宽度 | < 800 fs 半宽度 | < 20 ps 半宽度 |
| 同步扫描 频率 |
74 MHz ～ 165 MHz | 38 MHz ～ 74 MHz | － | － |
| 最高扫描频率 频率 |
－ | － | 10 kHz | 4 MHz（最快扫描范围） |
| 扫描时间 （全屏） |
约 60 ps 至 1/6 fs*2 （使用 ORCA-Flash4.0 V3） |
约 200 ps 至 1/6 fs*2 （使用 ORCA-Flash4.0 V3） |
60 ps ～ 20 ns （使用 ORCA-Flash4.0 V3） |
1.2 ns ～ 1 ms （使用 ORCA-Flash4.0 V3） |
| 扫描单元 | M16911-01 | M16911-03 | M16912-01 | M16913-01 |
|---|---|---|---|---|
| 时间 分辨率*1 |
< 4 ps 半宽度 | < 4 ps 半宽度 | < 4 ps 半宽度 | < 20 ps 半宽度 |
| 同步扫描 频率 |
74 MHz ～ 165 MHz | 38 MHz ～ 74 MHz | － | － |
| 最高扫描频率 频率 |
－ | － | 10 kHz | 4 MHz（最快扫描范围） |
| 扫描时间 （全屏） |
约 60 ps 至 1/6 fs*2 （使用 ORCA-Flash4.0 V3） |
约 200 ps 至 1/6 fs*2 （使用 ORCA-Flash4.0 V3） |
60 ps ～ 20 ns （使用 ORCA-Flash4.0 V3） |
1.2 ns ～ 1 ms （使用 ORCA-Flash4.0 V3） |
| 扫描单元 | M16911-01 | M16911-03 | M16912-01 | M16913-01 |
|---|---|---|---|---|
| 时间 分辨率*1 |
< 800 fs 半宽度 | < 2 ps 半宽度 | < 800 ps 半宽度 | < 20 ps 半宽度 |
| 同步扫描 频率 |
74 MHz ～ 165 MHz | 38 MHz ～ 74 MHz | － | － |
| 最高扫描频率 频率 |
－ | － | 10 kHz | 4 MHz（最快扫描范围） |
| 扫描时间 （全屏） |
约 60 ps 至 1/6 fs*2 （使用 ORCA-Flash4.0 V3） |
约 200 ps 至 1/6 fs*2 （使用 ORCA-Flash4.0 V3） |
60 ps ～ 20 ns （使用 ORCA-Flash4.0 V3） |
1.2 ns ～ 1 ms （使用 ORCA-Flash4.0 V3） |
*1 例如，fs 为 80 MHz 时，扫描时间设置为 60 ps 到 80 ps 的最快范围，然后设置为 200 ps、600 ps、1200 ps 和 2083 ps。出厂设置的最快范围是 60 ps 到 80 ps，具体取决于时间分辨率。
*2 光阴极面为 S-20 和 S-20ER 的两个系统也与尺寸为 0.5 mm × 4.5 mm 的有效光阴极面兼容。C16910-21 为 S-20 的产品编号 ，C16910-25 为 S-20ER 的产品编号。请联系我们获取更多信息。
*此处所示扫描时间作为示例展示。请参见产品随附的检验报告了解实际扫描时间。

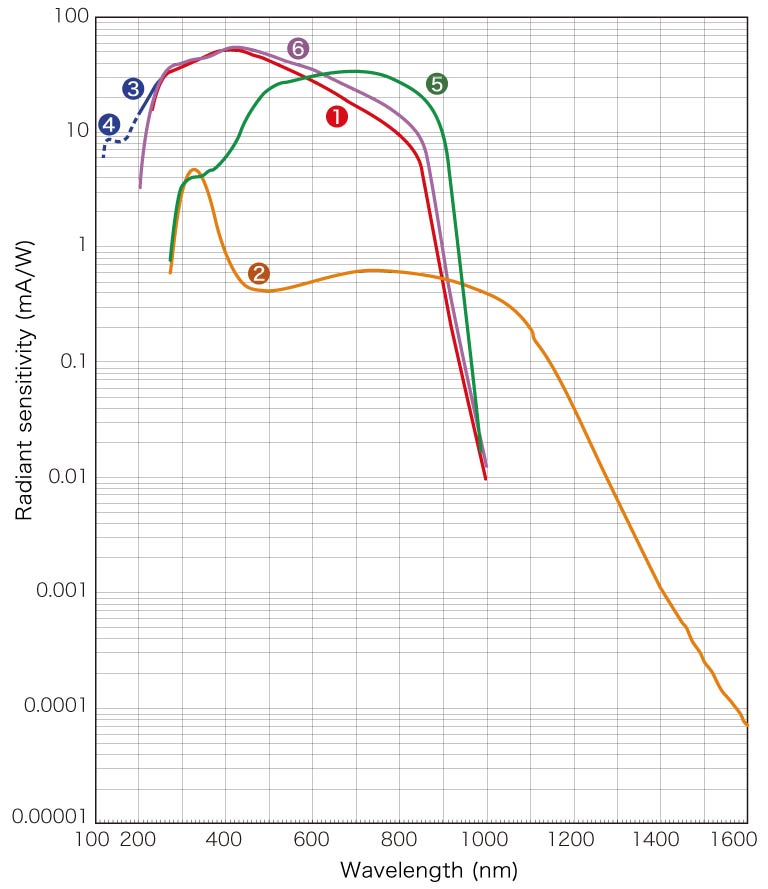

光谱灵敏度特性
① C16910-01 (S-20)
② C16910-02 (S-1)
③ C16910-03 (S-20MgF2)
④ C16910-03 (S-20MgF2) 估计值*
⑤ C16910-04 (S-25)
⑥ C16910-05 (S-20ER)
*估计值低于 200 nm

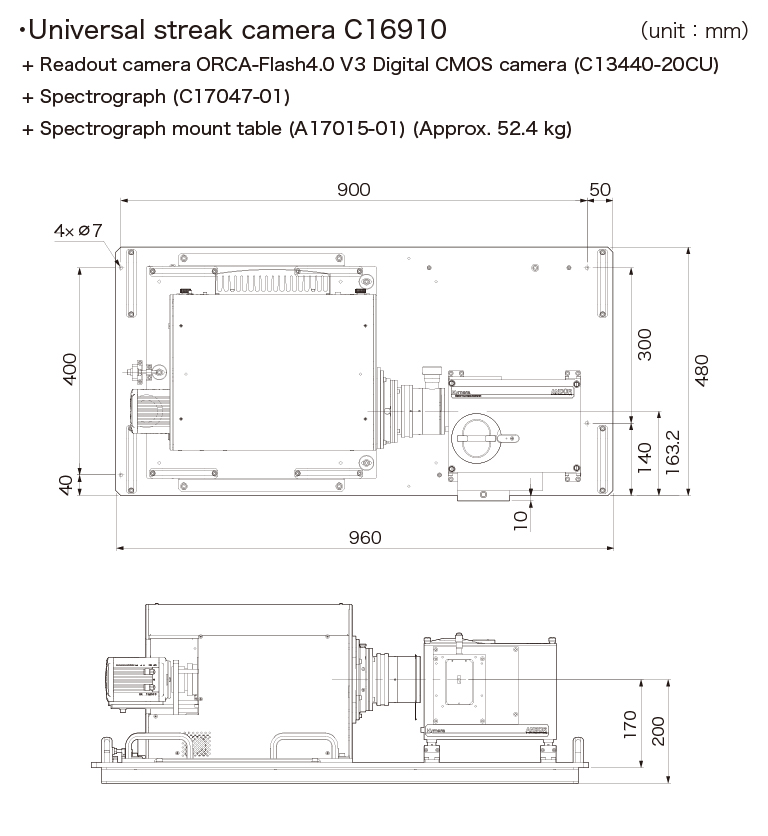

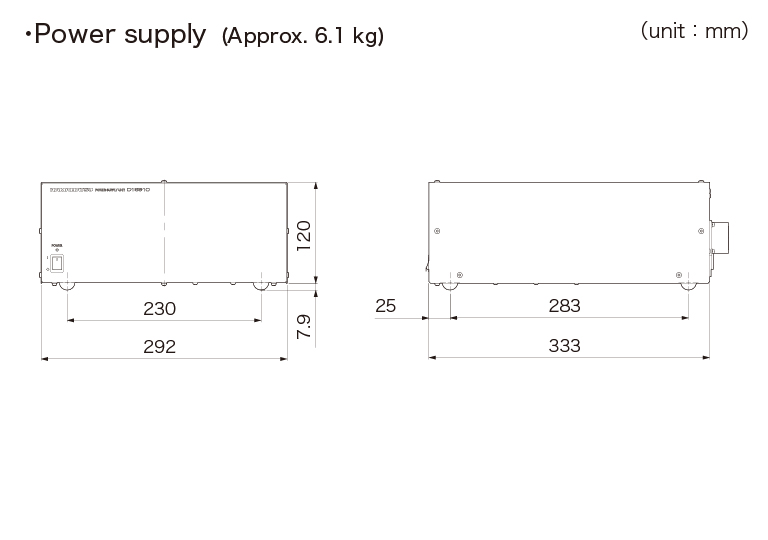

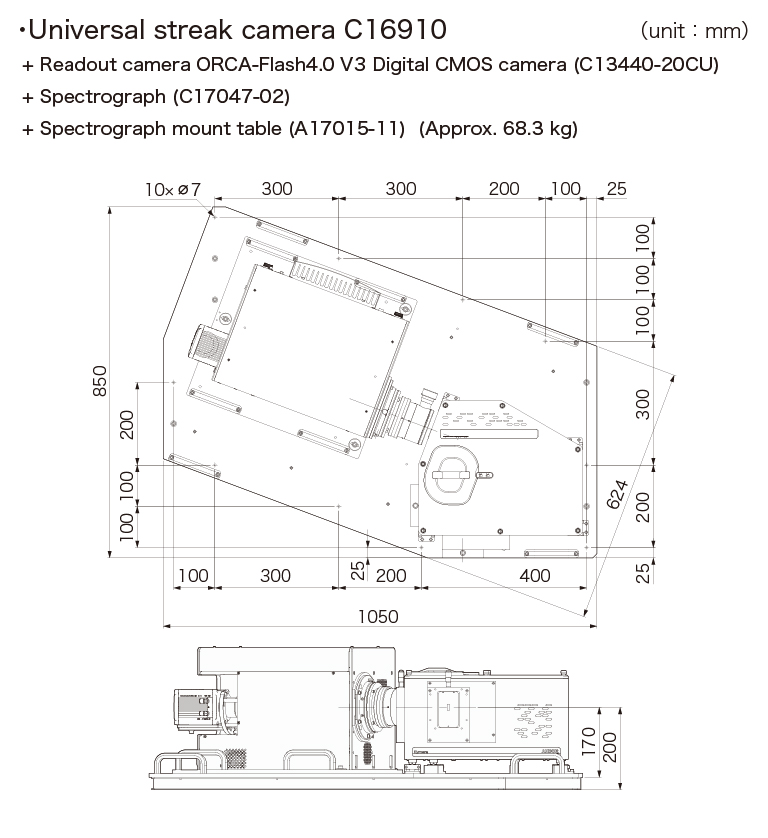

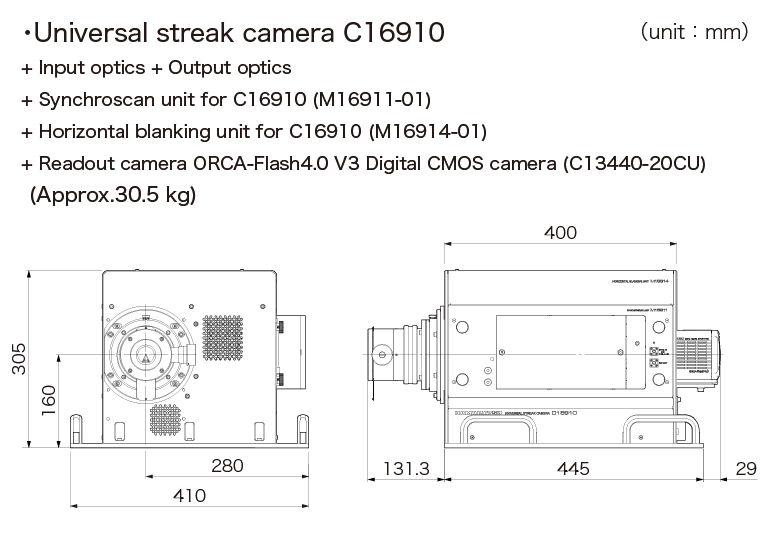

尺寸
