紧凑型 X 射线 CMOS 相机
H8953-30
DX-CUBE：H8953-30 是一款紧凑型 X 射线 CMOS 相机，用于非破坏性检测，它使用消费级 CMOS 相机和我们的高灵敏度 CsI 闪烁体。
特点
- 紧凑（手掌大小）
- 使用高灵敏度 CsI 闪烁体
- 低功耗
用途
- X 射线钻孔
- X 射线非破坏性检测
X 射线图像示例

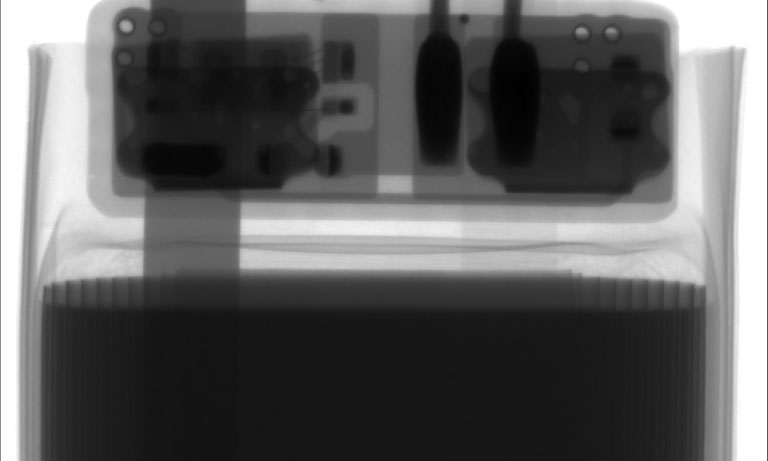

锂离子电池和保护电路
X 射线管电压：100 kV
几何放大率：1.4 倍

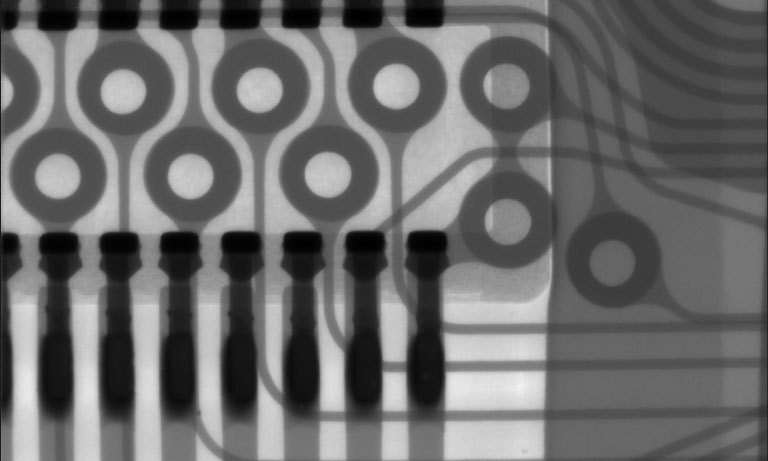

柔性印刷电路板
X 射线管电压：100 kV
几何放大率：3.1 倍
详细参数
| 参数 | 说明/值 | 单位 | |
|---|---|---|---|
| 受光窗 | 碳 (CFRP) | - | |
| X 射线传感表面 | Csl | - | |
| 有效视野 (H × V) | 20 × 12.5 | mm | |
| 分辨率 | 典型值 | 20 | Lp/mm |
| 图像传感器 | CMOS 图像传感器，带 235 万像素 1/1.2 型全局快门 | - | |
| 像素尺寸 (H × V) | 5.86 × 5.86 | μm | |
| 有效像素数 (H × V) | 1936 × 1216 | - | |
| 像素合并 | 1×2，2×2，2×1 | - | |
| 视频信号输出 | 8 / 10 / 12 | 位 | |
| 部分读出 | 单 ROI 模式、多 ROI 模式 | - | |
| 电源 | PoCL（Camera Link 供电）或 4 针连接器 | - | |
| 电源电压 (DC) | PoCL：12 ± 10 %（2.76 W 12 V 输入），4 针：12 至 24 ± 10 %（2.76 W 12 V 输入） | V | |
| 视频处理功能 | 划痕校正、伽马校正等 | - | |
| 自动电平控制 | 79 μs 至 8 s（10 位） | - | |
| 帧速率 | 最大 165.5 | 帧/秒 | |
| 工作环境温度 | +10 至 +40 | °C | |
| 储存环境温度 | 0 至 +40 | °C | |
| 工作/储存环境湿度 | 低于 60（无冷凝） | % | |
| CMOS 相机 | JAI 产品，GO-2400M-PMCL | - | |

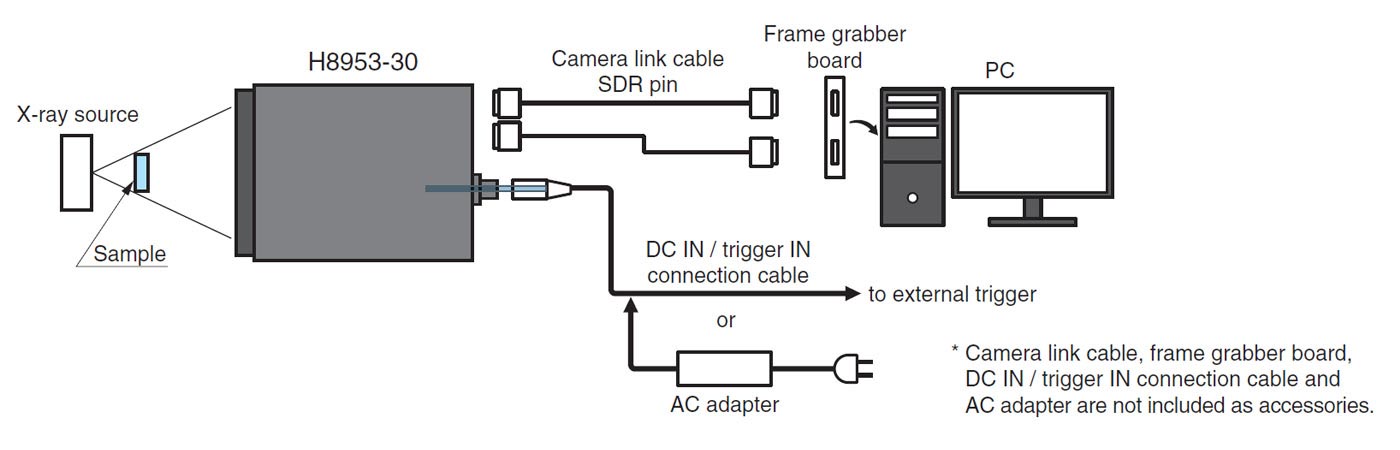

连接示例

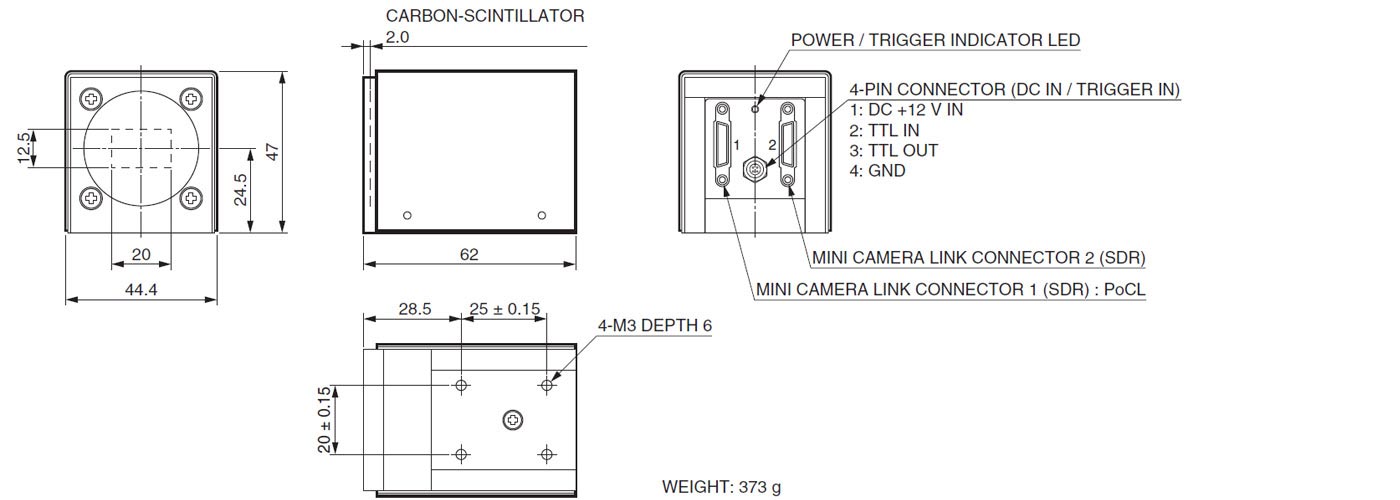

外形尺寸图
