MAICO MEMS共聚焦装置
C15890系列
使共聚焦成像更易于使用
MAICO MEMS共聚焦装置是易于安装在倒置显微镜上的共聚焦装置，可实现共聚焦荧光成像。
该装置足够紧凑，可以安装在实验室工作台上，不需要其他设备，如相机、滤波器和激光器。
特点
- 使用我们的模块化子装置结构更容易添加额外的通道
- 可选波长与检测灵敏度
- 高灵敏度探测器
- 使用MEMS振镜进行高速扫描
- 黄金标准共聚焦光学器件
- 无需激光控制区域
- 兼容DCAM-API
- 支持至低渗出同步多波段共聚焦采集（专利申请中）
子装置阵容
如需添加成像通道，最多可支持4个通道。
| 型号 | 波长 | 探测器 | |
|---|---|---|---|
| 和主机一起购买 | 后期加装或更换 | ||
| A15889-405N | A15891-405N | 405 nm | 标准型 |
| A15889-488N | A15891-488N | 488 nm | |
| A15889-561N | A15891-561N | 561 nm | |
| A15889-638N | A15891-638N | 638 nm | |
| A15889-488S | A15891-488S | 488 nm | 高灵敏度型 （结晶光阴极面/GaAsP） |
| A15889-561S | A15891-561S | 561 nm | |
| A15889-638S | A15891-638S | 638 nm | |
无法安装两个或更多个具有相同激光波长的子装置。而且也不能仅更换探测器。
可以根据子装置选项添加或删除不同的激光线及其探测器。
详细参数
| 型号 | C15890-405N | C15890-488N | C15890-488S |
|---|---|---|---|
| 最大有效视野 | 8.0 mm × 6.0 mm | ||
| 最大像素数 | 1280（H）× 960（V） | ||
| 影像尺寸 | 1280（H）× 960（V） 1280（H）× 480（V） 1280（H）× 240（V） |
||
| 帧速率（典型值） | 19 帧/秒（960条扫描线） 38 帧/秒（480条扫描线） 76 帧/秒（240条扫描线） |
||
| 缩放功能 | 1倍、2倍 | ||
| 激发激光 *1 | 405 nm | 488 nm | 488 nm |
| 镭射等级 | 3R级 | ||
| 检测波长 | 425 nm至465 nm（405 nm激发） 510 nm至540 nm（405 nm激发） 580 nm至619 nm（561 nm激发） 660 nm至730 nm（638 nm激发） |
||
| 探测器 *2 | PMT | 高灵敏度GaAsP PMT | |
| 数字输出 | 12位 | ||
| 图像采集模式 | 单通道测量、 多通道顺序测量（逐帧）、 多通道同步测量（最多4个通道） |
||
| 针孔 *3 | 每个波长有3个手动调节选项（大/中/小） | ||
| 兼容物镜 *4 | 放大率20倍至100倍 | ||
| 接口 | USB 3.0 | ||
| 输出触发器连接器 | SMA | ||
| 透镜接口 | C 型接口 | ||
| 功耗 | 90 VA | ||
| 环境工作温度 | +18 ℃ 至 +28 ℃ | ||
| 环境工作湿度 | 30 ％ 至 80 ％（无冷凝） | ||
| 环境储存温度 | -10 ℃ 到 +50 ℃ | ||
| 环境储存湿度 | 85 ％（无冷凝） | ||
*1：C15890系列具有405 nm、 或488 nm的单波长。通过添加子装置支持多达4种波长。
*2：配备相同数量的激光器。
*3：在测量时，针孔大小可作为附件信息读取。
*4：我们建议使用图像侧 NA（物镜NA/放大率）小于0.0375的物镜。

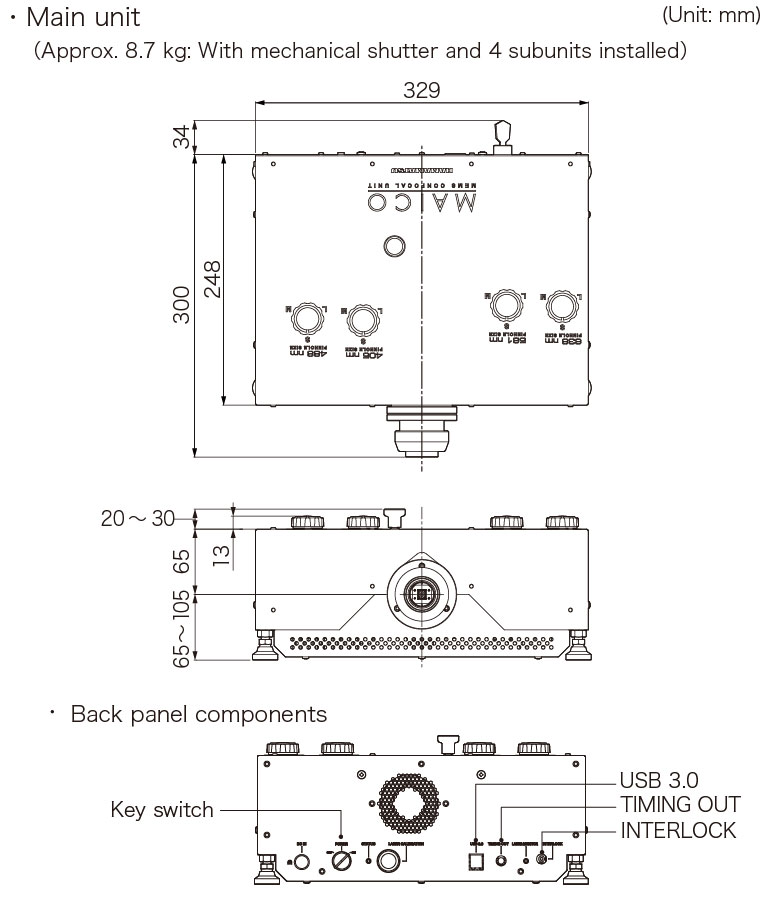

尺寸
