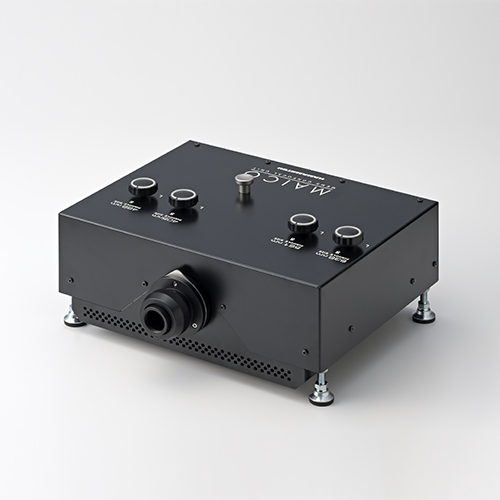

MAICO MEMS 共聚焦装置
C17290系列
使共聚焦成像更易于使用
本装置被划分为3B级激光器产品（IEC 60825-1、EN 60825-1）。它仅供具备自主实施自有联锁电路系统能力的集成商或转销商使用。
特点
- 安装在您自己的显微镜上的共聚焦荧光装置
- 高灵敏度探测器
- 使用MEMS振镜进行高速扫描
- 传统共聚焦光学器件
- 支持至低渗出同步多波段共聚焦采集（专利申请中）
详细参数
| 类型编号 | C17290系列（C17290-1111、C17290-1110） |
|---|---|
| 最大有效视野 | 8.0 mm × 6.0 mm |
| 最大像素数 | 1280（H）× 960（V） |
| 影像尺寸 | 1280（H）× 960（V） 1280（H）× 480（V） 1280（H）× 240（V） |
| 帧速率（典型值） | 19 帧/秒（960条扫描线） 38 帧/秒（480条扫描线） 76 帧/秒（240条扫描线） |
| 缩放功能 | 1倍、2倍 |
| 激发激光 *1 | C17290-1111：405 nm、488 nm、561 nm、638 nm C17290-1110： 405 nm、488 nm、561 nm |
| 镭射等级 | 3B级 |
| 检测波长 | 425 nm 至 465 nm（405 nm激发） 510 nm 至 540 nm（488 nm激发） 580 nm 至 619 nm（561 nm激发） 660 nm 至 730 nm（638 nm激发） |
| 探测器 *2 | PMT（405 nm）、高灵敏度 GaAsP PMT（488 nm、561 nm、638 nm） |
| 数字输出 | 12位 |
| 图像采集模式 | 单频道测量、 多频道顺序测量（逐帧）、 多频道同步测量（至多4个频道） |
| 针孔 *3 | 每个波长有3个手动调节选项（大/中/小） |
| 兼容物镜 *4 | 放大率20倍至100倍 |
| 接口 | USB 3.0 |
| 输出触发器连接器 | SMA |
| 透镜接口 | C 型接口 |
| 用电功耗 | 90 VA |
| 操作环境温度 | +18 °C 至 +28 °C |
| 操作环境湿度 | 30% 至 80%（无雾气现象） |
| 存储环境温度 | -10 ℃ 到 +50 ℃ |
| 存储环境湿度 | 85%（无雾气现象） |
*1： C17290-1111 具有 405 nm、488 nm、561 nm 和 638 nm 4种波长。C17290-1110 具有 405 nm、488 nm 和 561 nm 3种波长。通过添加 A17291-638，它至多可支持4种波长。
*2：配备相同数量的激光器。
*3：在测量时，针孔大小可作为附件信息读取。
*4：我们建议使用图像侧 NA（物镜 NA/放大率）小于0.0375的物镜。

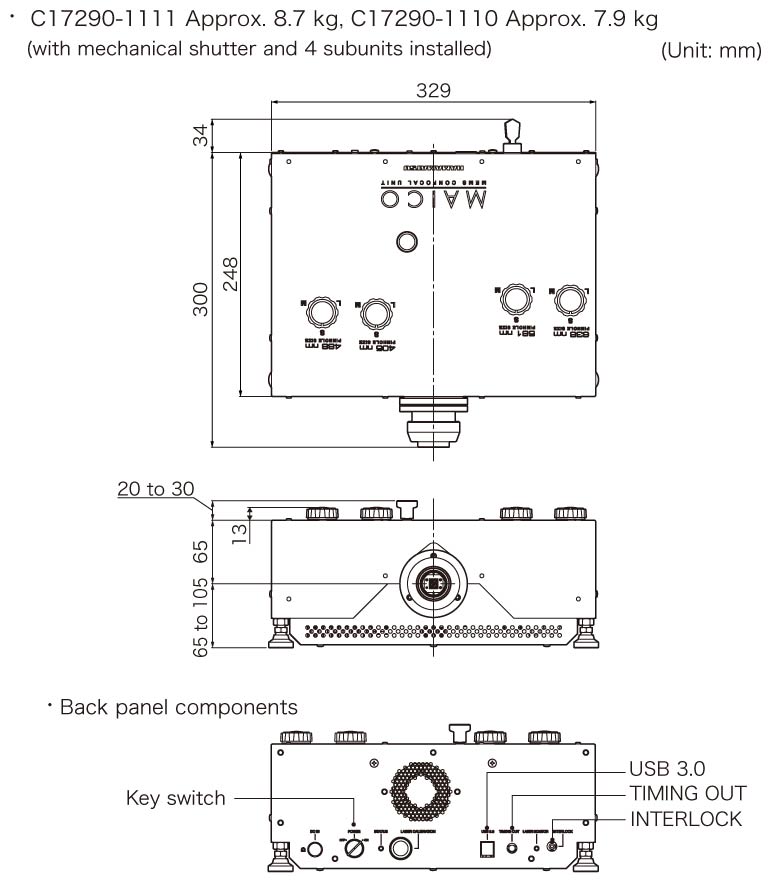

尺寸
