点光源 LC8
L9588
滨松点光源采用使用寿命长、强度高的汞氙灯和光学系统，专为最大限度地减少光损失而设计。我们的 UV 点光源具有长寿命和大功率的良好声誉，在各种领域发挥着重要作用，尤其是在 FA（工厂自动化）领域。UV 点光源产生的热量较少，因此非常适合在接合微型元件和易受热影响的光学组件时进行 UV 固化。
L9588 系列：[Light Guide Port : Operation panel (front), Lamp Replacement Position : Rear]
L9566 系列：[Light Guide Port : Rear, Lamp Replacement Position : Operation panel (front)]
用途
UV 固化
控制
| 控制 | 前面板控制 | 通信连接器 (RS-232C) |
外部控制端子 （D-sub 连接器） |
|
|---|---|---|---|---|
| 主电源开/关 | ✓ | - | - | |
| 开关灯 | ✓ | ✓ | ✓ | |
| 快门驱动器 | 开/关 | ✓ | ✓ | ✓ |
| 定时器自动开/关 *1 | ✓ | ✓ | ✓ | |
| 自动快门时间设置 | ✓ | ✓ | - | |
| 辐照程序 (Memory StepTM) 设置 | ✓ | ✓ | - | |
| 光功率调节（上/下） | ✓ | ✓ | ✓ | |
| 开灯指示灯 | ✓ | ✓（信号输出） | ✓（信号输出） | |
| 灯稳定性指示器 | ✓ | ✓（信号输出） | ✓（信号输出） | |
| 快门打开指示灯 | ✓ | ✓（信号输出） | ✓（信号输出） | |
| 灯运行时数表 | ✓ | ✓ | - | |
| 过热报警 | ✓ | ✓（信号输出） | ✓（信号输出） | |
| 灯运行时间报警 | ✓ | ✓（信号输出） | ✓（信号输出） | |
| 节电模式操作开关 *2 | - | - | - | |
✓：可用，- ：不可用
*1：对应于 Memory StepTM 的“开始/停止”功能。
*2：操作开关位于内部
选型指南
| 型号 | 光谱分布 *1 | 维护用灯 *2 | 保证使用寿命 | |
|---|---|---|---|---|
| L9566-01A、L9588-01A | [365 nm type] | 300 nm 至 450 nm | L10852 | 4000 小时（在 365 nm 处） |
| L9566-02A、L9588-02A | [250 nm band enhanced type] | 240 nm 至 400 nm | L10852 | 2000 小时（在 436 nm 处） |
| L9566-03、L9588-03 | [Visible light type] | 400 nm 至 700 nm | L14753 | 2000 小时（在 436 nm 处） |
| L9566-04、L9588-04 | [Total reflection type] | 300 nm 至 800 nm | L14753 | 2000 小时（在 436 nm 处） |
| L9566-06A、L9588-06A | [365 nm wide band type] | 240 nm 至 550 nm | L10852 | 4000 小时（在 365 nm 处） |
*1：主要光谱分布。也可以连接各种滤光片（单独出售）。
*2：L10852 是 200 W 超静音汞氙灯。L14753 是 150 W 超静音氙气灯（低臭氧型）。
详细参数
| 参数 | L9566 | L9588 |
|---|---|---|
| 光导端口 | 背面 | 操作面板（正面） |
| 光源更换位置 | 操作面板（正面） | 背面 |
| UV 辐射照度（典型值） *1 | 4500 mW/cm2 典型值（在 365 nm 处，-01A 型） | |
| 光谱分布 | 请参阅选型指南 | |
| 维护用灯 | 请参阅选型指南 | |
| 保证使用寿命 | 请参阅选型指南 | |
| 输入电压（交流） | 100 V 至 240 V（100 V / 200 V 自动切换），单相 47 Hz 至 63 Hz | |
| 功耗 | 典型值为 280 VA | |
| 重量 | 约 6.4 kg | |
| 工作温度范围 | +5°C 至 +35°C | |
| 工作湿度范围 | 低于 80%（无冷凝） | |
| 储存温度范围 | -10°C 至 +70°C | |
| 储存湿度范围 | 低于 80%（无冷凝） | |
*1：UV 辐射照度（在 365nm 处）是使用滨松 C6080-365 UV 功率计在距离 A10014-35-0110 光导（单独出售）输出端 10 mm 处的一个点的中心位置通过 E5147-04 测量得出的。

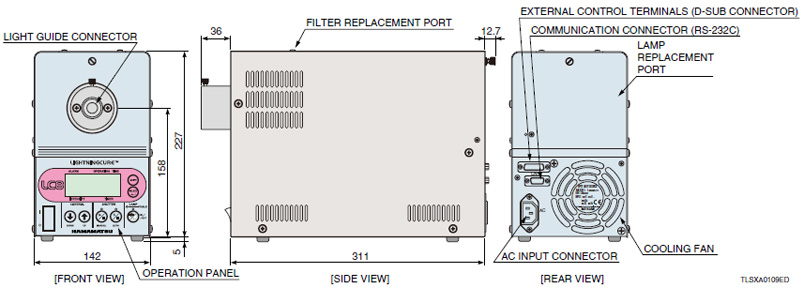

外形尺寸图（单位：mm）
