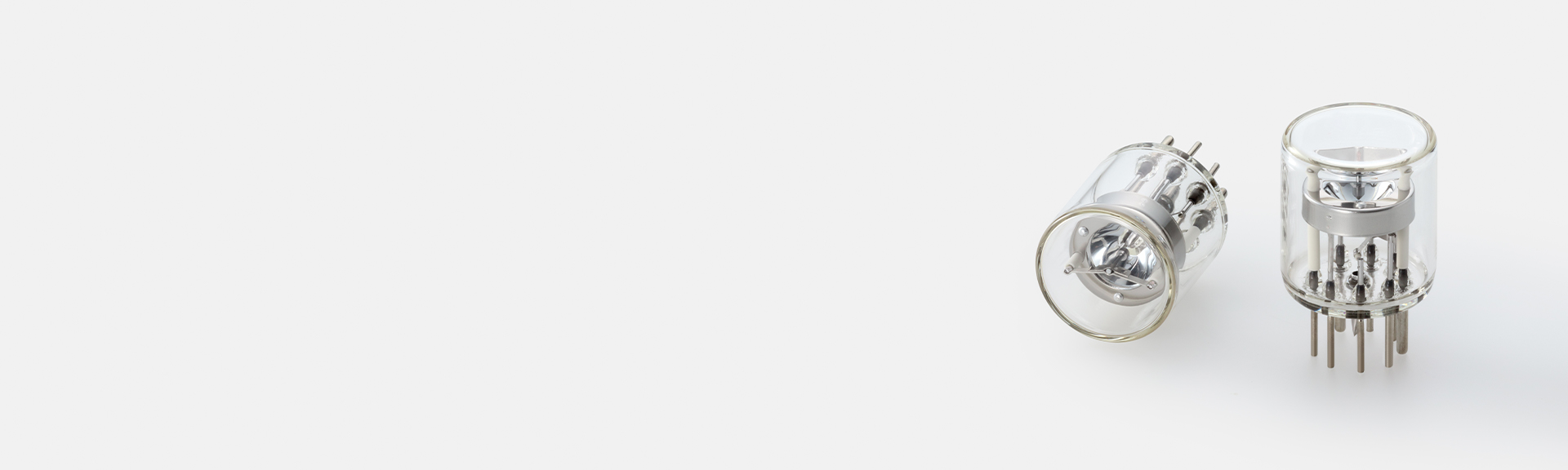

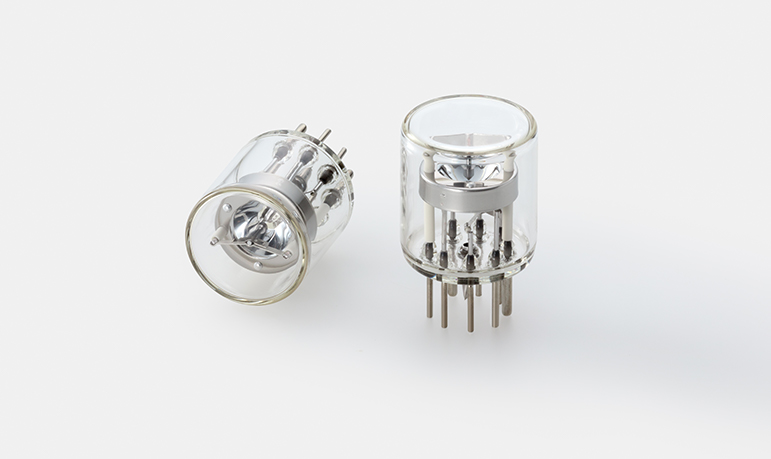

15 W 氙气闪光灯
这些 15 W 氙气闪光灯集成了反射器，可提供更高的输出，但这些光源也非常紧凑，产生的热量更少。内置反射器可选择聚光型和准直型。聚光型非常适合必须将输出光引导至光导的用途。
特性

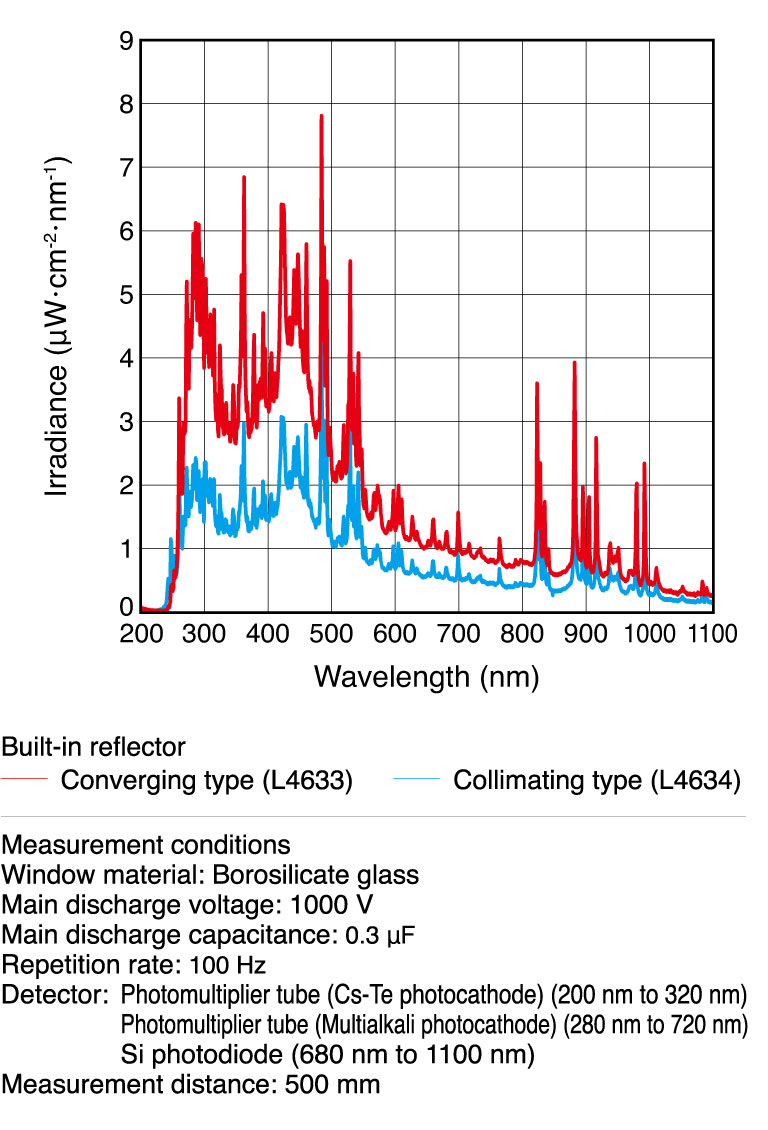

光谱分布（典型值）

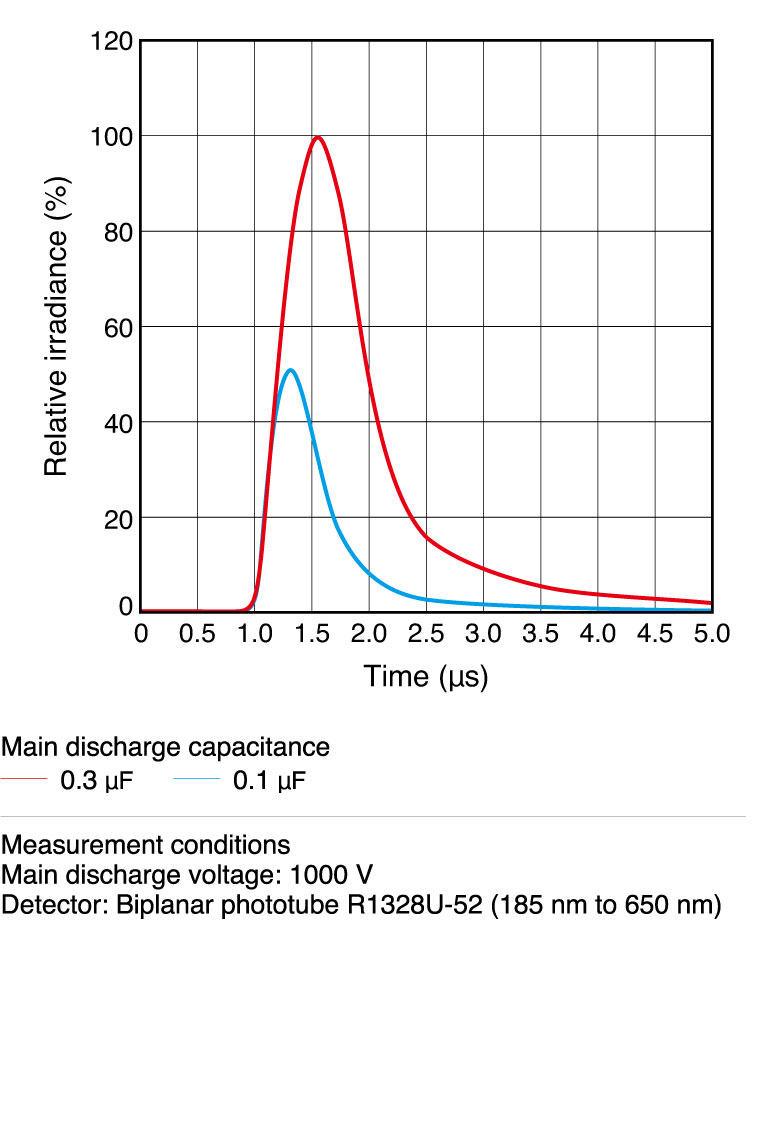

发光脉冲波形 (L4633)（典型值）

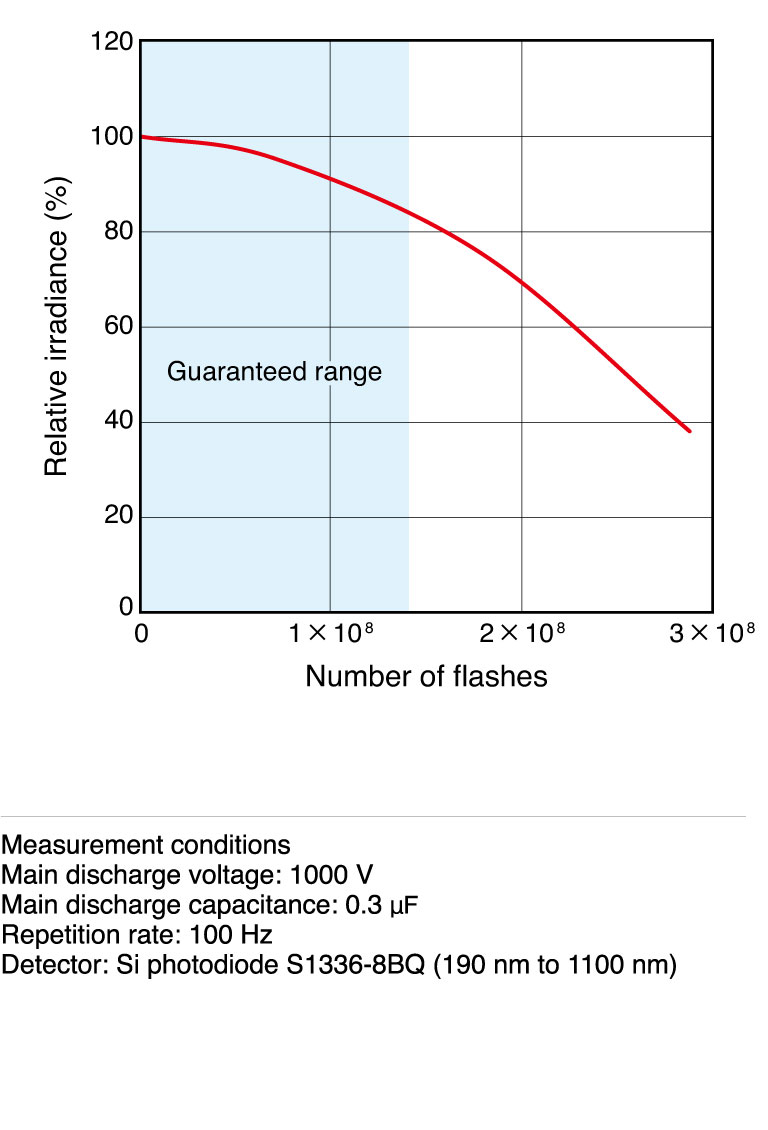

寿命特性 (L4633)（典型值）

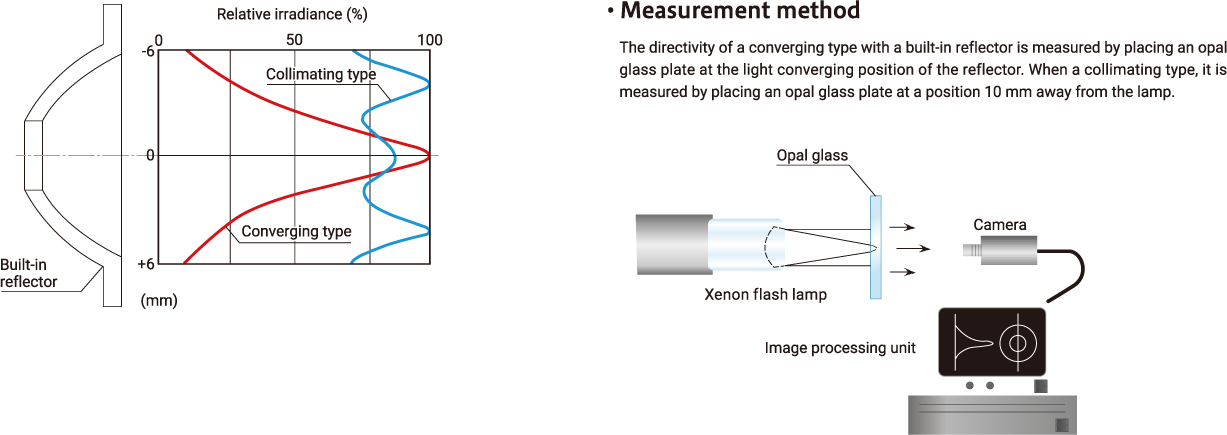

指向性（光分布）
详细参数
| 参数 | L4633 | L4634 | 单位 | |
|---|---|---|---|---|
| 内置反射器 | 聚光型 | 准直型 | － | |
| 窗材 | 硼硅玻璃 | － | ||
| 侧管材料 | 硼硅玻璃 | － | ||
| 光谱分布 | 240 至 2500 | nm | ||
| 主放电电压范围 | 500 至 1000 | V | ||
| 推荐主放电电压范围 | 700 至 1000 | V | ||
| 最大光源输入能量（每次闪光） | 参见操作条件示例 | mJ | ||
| 最大重复频率 (*1) | 100 | Hz | ||
| 最大平均光源输入（连续） | 参见操作条件示例 | W | ||
| 光输出稳定性 (*2) | 典型值 | 0.5 | % CV | |
| 2.9 | % p-p | |||
| 最大值 | 1.0 | % CV | ||
| 5.0 | % p-p | |||
| 保证使用寿命 (*3) | 1.4 × 108 至 5 × 108 | 闪光次数 | ||
| 触发电压 | 5 至 7 | kV p-p | ||
| 冷却方式 | 不需要 | － | ||
| 工作温度范围 | +5 至 +40 | ℃ | ||
| 储存温度范围 | -40 至 +90 | ℃ | ||
| 工作湿度范围 | 低于 85%（无冷凝） | － | ||
| 储存湿度范围 | 低于 95%（无冷凝） | － | ||
| 触发开关（单独出售）(*4) | E4370-01 | － | ||
备注：
*1：为确保高度稳定的操作，建议重复频率为 10 Hz 或以上。
*2：光输出稳定性（重复频率为 10 Hz 或以上）
光输出稳定性 (% CV) = 光输出标准偏差/平均光输出 × 100
光输出稳定性 (% p-p) =（最大光输出 – 最小光输出）/平均光输出 × 100
*3：使用滨松硅光电二极管 S1336-8BQ 测量。寿命是指在 0.15 J 至 0.05 J 的光源输入能量条件下操作光源时，190 nm 至 1100 nm 的光输出减少到初始输出水平的 50%，或光输出波动超过规定最大值的时间。
*4：请参见各选项以了解有关触发开关的信息。
操作条件示例
| 主放电电容 (μF) |
主放电电压 (V) |
最大光源输入能量（每次闪光）(*5) (mJ) |
最大重复频率 (*6) (Hz) |
最大平均光源输入（连续）(*7) (W) |
电源 （单独出售）(*8) |
|---|---|---|---|---|---|
| 0.3 | 1000 | 150.0 | 100 | 15.0 | C13316-03 |
| 700 | 73.5 | 100 | 7.4 | ||
| 0.2 | 1000 | 100.0 | 100 | 10.0 | C13316-02 |
| 700 | 49.0 | 100 | 4.9 | ||
| 0.1 | 1000 | 50.0 | 100 | 5.0 | C13315 |
| 700 | 24.5 | 100 | 2.5 |
备注：
*5：最大光源输入能量（每次闪光）(J)
E ＝ 1/2 × C × V2 C：主放电电容 (F)，V：主放电电压 (V)
*6：为确保高度稳定的操作，建议重复频率为 10 Hz 或以上。
*7：最大平均光源输入（连续）(W)
P = E × f E：最大平均光源输入能量（每次闪光）(J)，f：重复频率 (Hz)
*8：请参见各选项以了解有关电源的信息。
产品阵容
选项
触发开关 E4370-01
滨松提供专为氙气闪光灯设计的触发开关。这些触发开关与高压变压器、电压分压电阻器和电容器集成在同一紧凑型外壳中，因此减少了绘制电路和设备设计的麻烦。

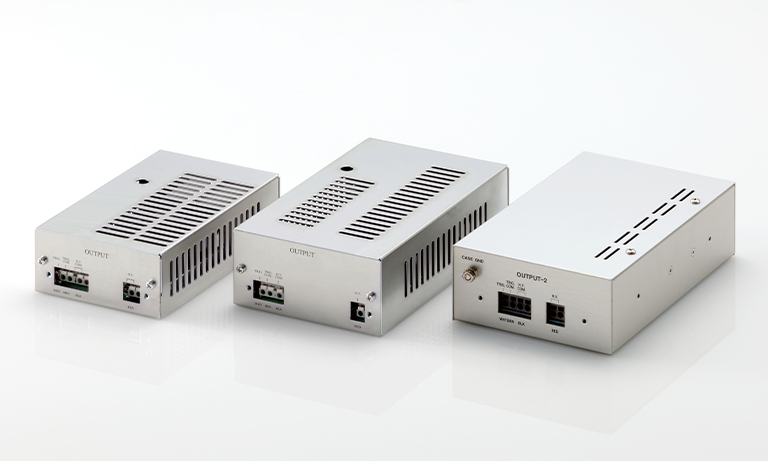

电源 C13315 / C13316 系列
滨松提供专门设计用于实现氙气闪光灯最大性能的电源。这些都是带有内置高速充电电路和放电停止电路的开关电源。尽管这些都是小型化、大容量的电源，但能确保高度稳定的氙气闪光灯操作。
