MCP（微通道板）
F1551-01
/e_mcp_pp02_xx.jpg/_jcr_content/renditions/thumb-e_mcp_pp02_xx.jpg)
MCP 由数百万至数千万个导电玻璃毛细管捆绑在一起，形成一块薄板。这些毛细管（通道）中的每一根都充当独立的二次电子倍增器，共同构成一个二维电子倍增器。
F1551-01 是一款有效面积为 Φ 14.5 mm 的圆形 MCP。
详细参数
| 项目 | F1551-01 | 单位 | |
|---|---|---|---|
| 外部尺寸 | Φ17.9 | mm | |
| 电极面积 | Φ17.0 | mm | |
| 有效面积 | Φ14.5 | mm | |
| 板厚度 | 0.48 | mm | |
| 通道直径 | 12 | µm | |
| 通道间距 | 15 | µm | |
| 偏角 | 8 | ° | |
| 开口面积比 | 最小 | 57 | ％ |
| 电阻率 *2 | 100 至 700 | MΩ | |
| 增益率 *2 | 最小 | 1×104 | ー |
| 电极材料 | Inconel | ー | |
| 暗电流 *2 | 0.5 | pA・cm2 | |
线性度高达 输出 *2 |
7 % 的 strip 电流 *1 | ー | |
电源电压 *3 |
1.0 | kV | |
工作环境 温度 *3 |
0 至 +50 | ℃ | |
| 电阻率匹配 *4 | ±10 % 以内 | ー | |
*1：Strip 电流是 MCP 输入端 (IN) 和输出端 (OUT) 之间施加电压时流经通道壁的电流。该电流等于施加电压除以 MCP 的电阻率。
*2：电源电压：1.0 kV，真空度：1.3 × 10-4 Pa，工作环境温度：+25°C
*3：真空度：1.3 × 10-4 Pa
*4：电阻率匹配是指当 MCP 在两级使用时，其电阻值要相互匹配。

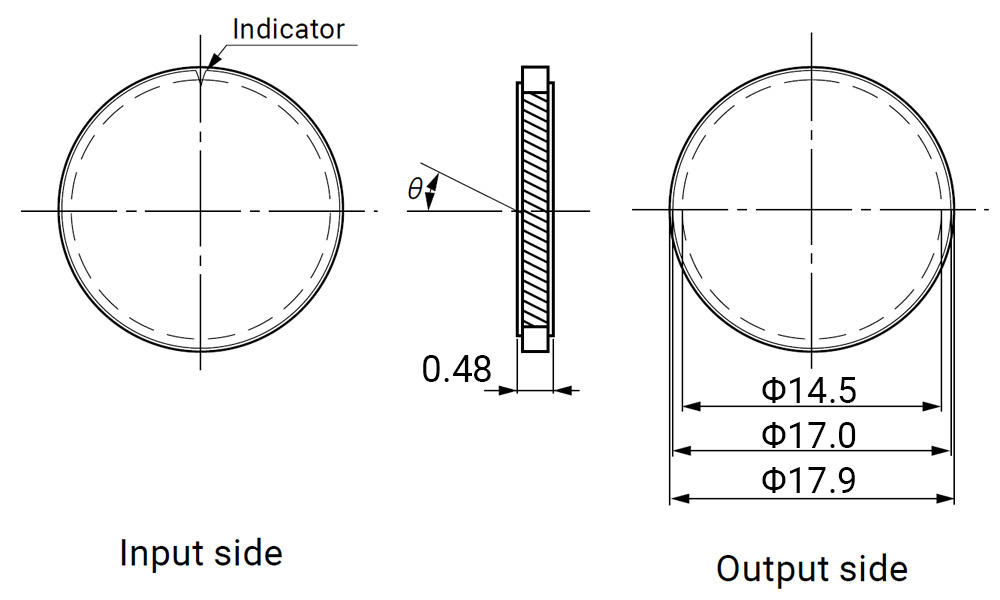

外形尺寸图（单位：mm）
