MCP | 电子&离子传感器
MCP 阵容
| 项目 | F1551 | F1094 | F1552 | F1217 | F1942 | F2395 | F2396 | 单位 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 后缀 | -01 | -01H | -011 | -011 | -011F | -01 | -011F | -015 | -04 | -04 | ー | |
| 外部尺寸 | Φ17.9 | Φ24.8 | Φ32.8 | Φ49.9 | Φ86.7 | Φ113.9 | 96.9 × 78.9 | mm | ||||
| 电极面积 | Φ17.0 | Φ23.9 | Φ31.8 | Φ49.0 | Φ84.7 | Φ112.0 | 95.6 × 77.3 | mm | ||||
| 有效面积 | Φ14.5 | Φ20.0 | Φ27.0 | Φ42.0 | Φ78.0 | Φ105.0 | 90.0 × 72.0 | mm | ||||
| 板厚度 | 0.48 | 0.48 | 0.48 | 0.48 | 0.72 | 1.00 | 1.00 | mm | ||||
| 通道直径 | 12 | 12 | 12 | 12 | 12 | 25 | 25 | µm | ||||
| 通道间距 | 15 | 15 | 15 | 15 | 15 | 31 | 31 | µm | ||||
| 偏角 | 8 | 8 | 12 | 12 | 8 | 12 | 8 | 8 | 8 | ° | ||
| 开口面积比 | 最小 | 57 | 57 | 57 | 90 | 57 | 90 | 57 | 57 | 57 | ％ | |
| 电阻 | 100 至 700 | 10 至 100 | 10 至 50 | 6.7 至 33 | 10 至 200 | 4 至 20 | 5 至 50 | 5 至 50 | 5 至 50 | MΩ | ||
| 增益率 | 最小 | 1×104 | ー | |||||||||
| 暗电流 | 0.5 | pA・cm2 | ||||||||||

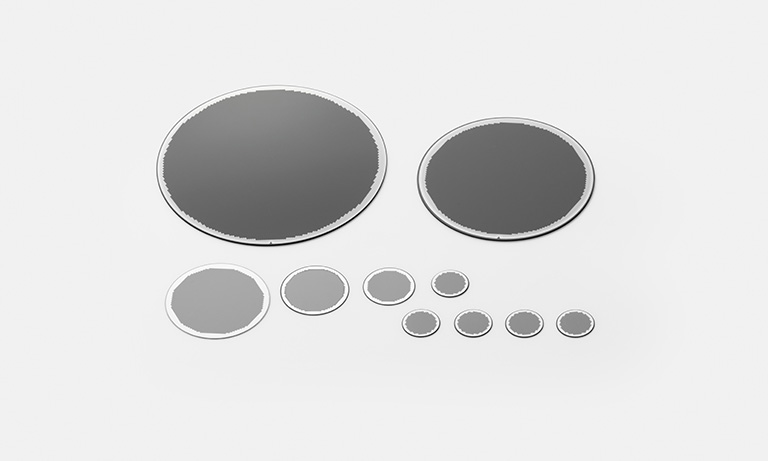

标准圆形类型
/e_mcp_pp01_xx.jpg)
F1551-01 是一款有效面积为 Φ 14.5 mm 的圆形 MCP。
F1094-011 是一款有效面积为 Φ 20.0 mm 的圆形 MCP。
F1552-011 是一款有效面积为 Φ 27.0 mm 的圆形 MCP。
F1217-01 是一款有效面积为 Φ 42.0 mm 的圆形 MCP。
F1942-015 是一款有效面积为 Φ 78.0 mm 的圆形 MCP。
F2395-04 是一款有效面积为 Φ105.0 mm 的带中心孔的圆形 MCP。
漏斗圆形类型
F1552-011F 是一款有效面积为 Φ 27.0 mm 的圆形 MCP。通过将 MCP 输入端的有效区域制成漏斗形，并将 OAR 提高到 90%，与标准 MCP 相比，可以校正更多信号。
F1217-011F 是一款有效面积为 Φ 42.0 mm 的圆形 MCP。通过将 MCP 输入端的有效区域制成漏斗形，并将 OAR 提高到 90%，与标准 MCP 相比，可以校正更多信号。
中心孔类型
F1094-01H 是一款有效面积为 Φ20.0 mm 的带中心孔的圆形 MCP。
标准矩形类型
F2396-04 是一款有效面积为 90.0 mm x 72.0 mm 的矩形 MCP。
