InAs 光伏元件

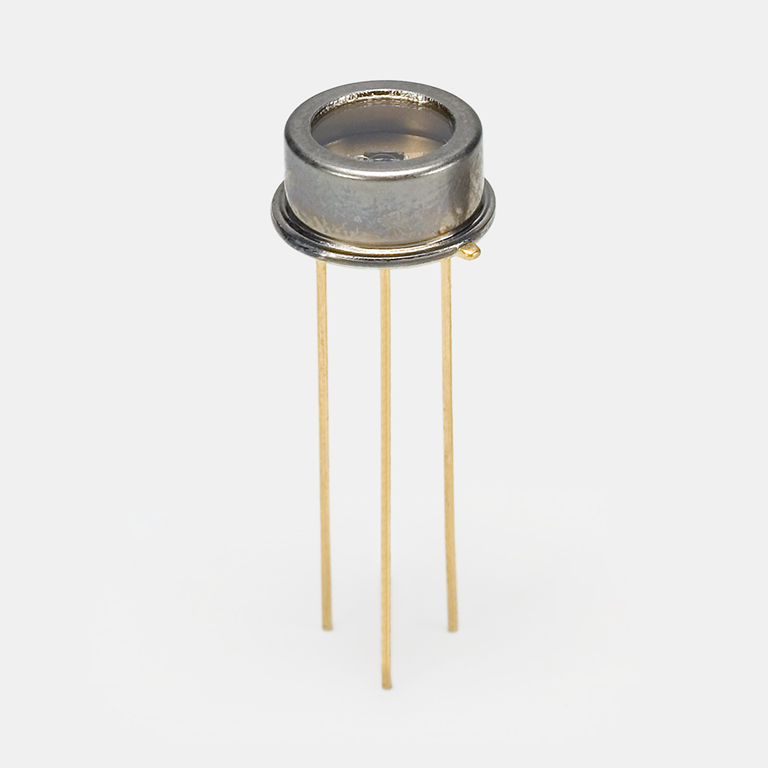

P10090-21
低噪声、高可靠性红外探测器（适用于 3 μm 以下波段）
InAs 光伏元件在 3 μm 左右的红外区具有类似于 PbS 光电导探测器的高灵敏度，而且还具有低噪声、高速和高可靠性的特点。
P10090-21 是一款两级电子冷却型 InAs 光伏元件。
特点
- 低噪声
- 高比探测能力
- 高可靠性
- 提供多元件阵列（定制产品）
详细参数
| 像元数 | 1 |
|---|---|
| 受光面 | φ1 mm |
| 封装 | 金属 |
| 封装类别 | TO-8 |
| 散热 | 两级电子冷却型 |
| 最大灵敏度波长（典型值） | 3.25 μm |
| 截止波长（典型值） | 3.45 μm |
| 感光灵敏度（典型值） | 1.2 A/W |
| 比探测能力 D*（典型值） | 3.2 × 1010 cm・Hz1/2/W |
| 上升时间（典型值） | 0.3 μs |
| 测量条件 | 典型值，除非另有说明 |
光谱灵敏度特性
外形尺寸图（单位：mm）
相关文档
