InAsSb 光伏元件阵列
P15742-046DS
46 像元阵列，能够检测高达 5 μm 的波段

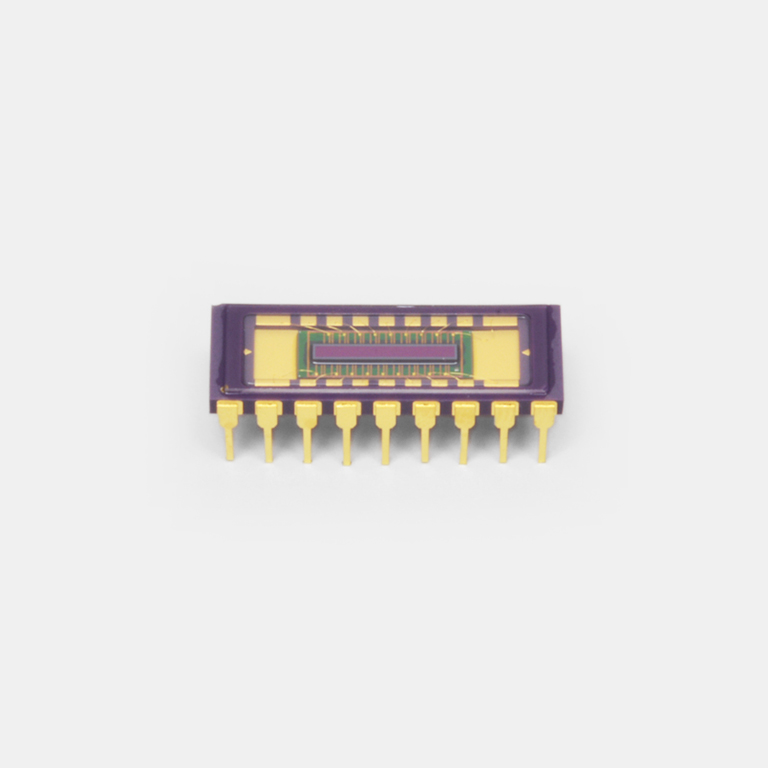

P15742 系列是一维 InAsSb 光伏元件阵列，采用陶瓷 DIP（双列直插式封装）。它们具有背照式结构，可实现低串扰。此类产品是环保型红外探测器，不使用 RoHS 指令限制使用的铅、汞或镉等物质。
特点
-高灵敏度
-低串扰
-符合 RoHS 的产品（无铅、汞、镉）
详细参数
| 元件尺寸/元件 | 0.2×0.7 mm |
|---|---|
| 像元数 | 46 |
| 封装 | 48 针陶瓷 DIP |
| 制冷 | 非冷却型 |
| 截止波长（典型值） | 5.3 μm |
| 最大灵敏度波长（典型值） | 4.1 μm |
| 感光灵敏度（典型值） | 0.0146 A/W |
| 检测率 D*（典型值） | 1×109 cm・Hz1/2/W |
| 噪声等效功率（典型值） | 4.2×10-11 W/Hz1/2 |
| 上升时间（典型值） | 15 ns |
| 结电容（典型值） | 50 pF |
| 测量条件 | Ta = 25°C，检测率 D*：（λp，1200，1），结电容：VR = 0 V，f = 1 MHz |
光谱灵敏度特性
外形尺寸图（单位：mm）
相关文档
