InAsSb 光伏元件

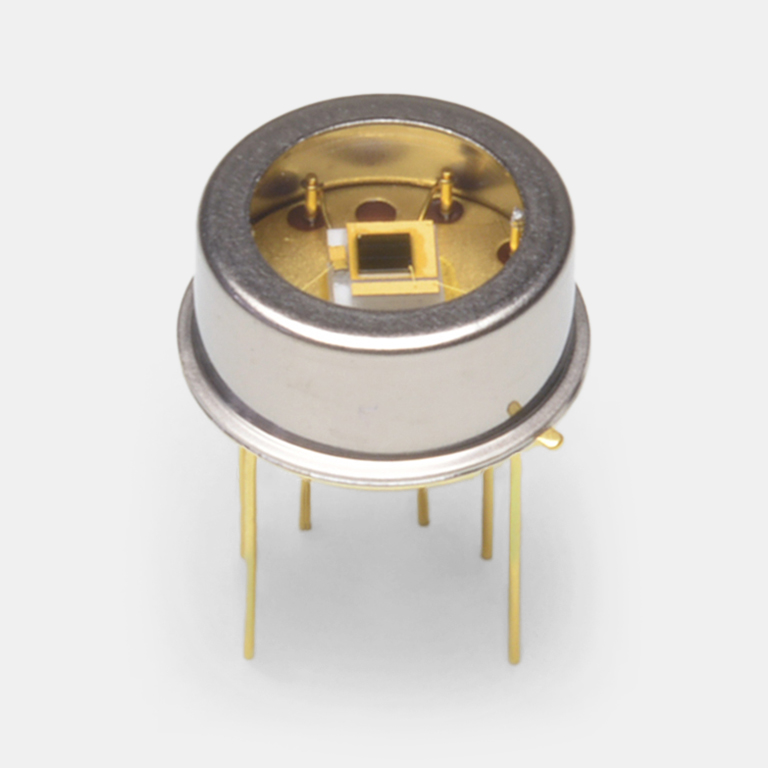

P13243-222MS
在 5 μm 以内的光谱带实现高速响应和高灵敏度，红外探测器
P13243-222MS 是光伏型红外探测器，使用滨松独创的晶体生长技术和工艺技术，在高达 5 μm 的光谱带实现高灵敏度。P13243 系列是环保型红外探测器，不使用 RoHS 指令限制使用的铅、汞或镉等物质。它们是含有此类物质的前代产品的替代产品。P13243-222MS 是两级电子冷却型，可通过其较大的受光面提供稳定的高信噪比测量。
特点
- 高灵敏度
- 高速响应
- 高分流电阻
- 两级电子冷却型
详细参数
| 受光面 | 2×2 mm |
|---|---|
| 像元数 | 1 |
| 封装类别 | TO-8 |
| 封装 | 金属 |
| 制冷 | 两级电子冷却型 |
| 截止波长（典型值） | 5.1 μm |
| 最大灵敏度波长（典型值） | 4.1 μm |
| 感光灵敏度（典型值） | 0.0088 A/W |
| 检测率 D*（典型值） | 2.8×109 cm・Hz1/2/W |
| 噪声等效功率（典型值） | 0.7×10-10 W/Hz1/2 |
| 上升时间（典型值） | 100 ns |
| 结电容（典型值） | 20 pF |
| 测量条件 | Ta = 25°C，检测率 D*：λ = λp，fc = 1200 Hz，Δf = 1 Hz |
光谱灵敏度特性
外形尺寸图（单位：mm）
相关文档
